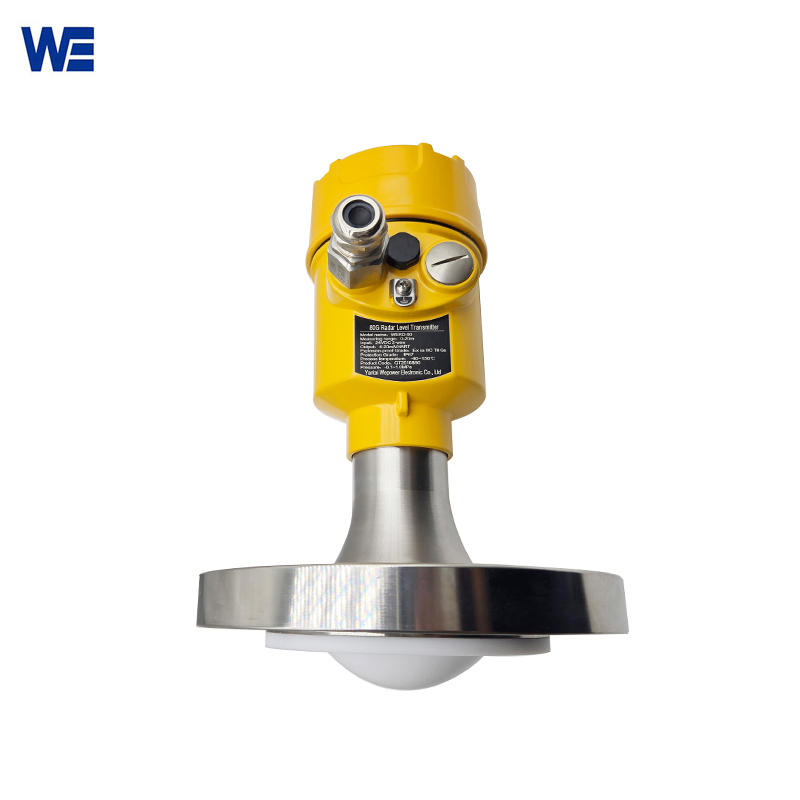

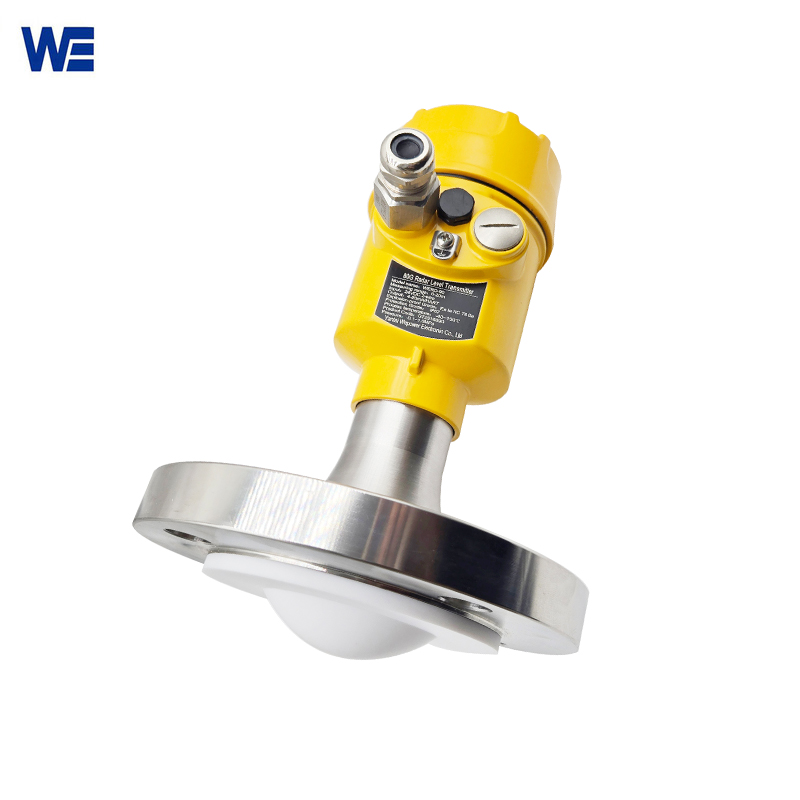

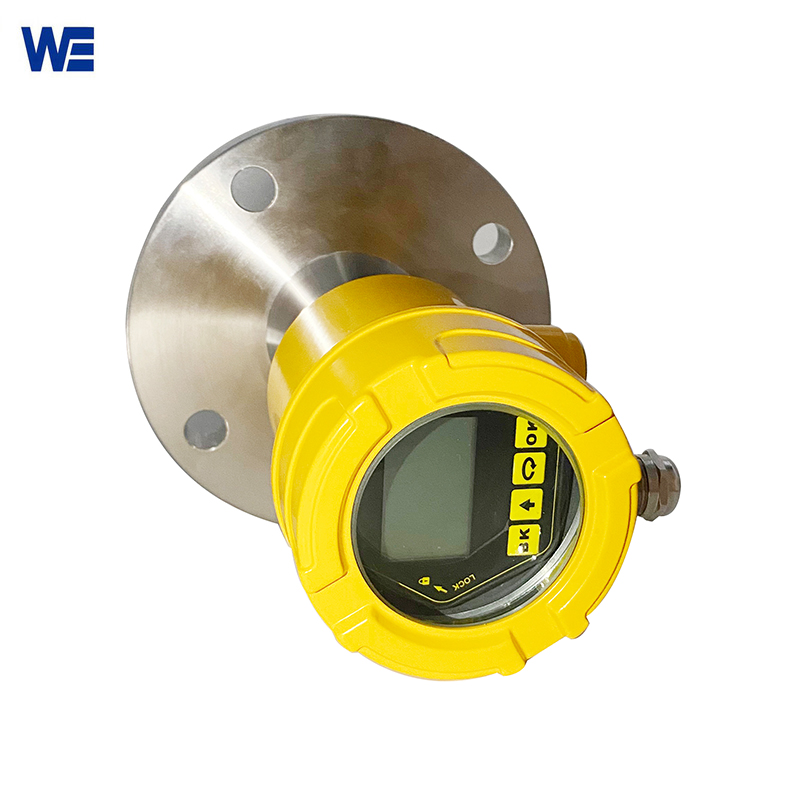

Wepower 80G Radar Level Meter

As A Radar Level Transmitter, How Does The 80G Radar Level Meter Differ From Other Radars?

High-Frequency Non-Contact Radar Level Meter vs Low-Frequency Non-Contact Radar Level Gauge

• Beam & Accuracy: The beam angle of 26GHz is 8°~12°, while the beam angle of 80G high-frequency radar level meter is only 3°~5°, with a more concentrated coverage area, which can accurately avoid internal components of the tank and achieve millimeter-level accuracy.
• Antenna: The 80G radar level meter’s antenna, paired with a lens antenna, is compact, flexible in installation, and has a small blind zone. Low-frequency radar antennas are larger and have a relatively larger blind zone.

80G Radar Level Sensor vs Guided Wave Radar Level Meter

• Contact Methods: GWR uses a contact measurement method, and the probe is susceptible to the influence of adhering medium, requiring regular cleaning. In contrast, 80G radar level gauge is non-contact, with the antenna not in contact with the medium, making it suitable for high temperature, high pressure, highly corrosive, and volatile media, and eliminating material buildup and loss.
• Measurement Range: Guided wave radar level meter, due to its probe length, is more suitable for small tanks. FMCW 80G radar level meter, on the other hand, has a measuring range of up to 150 meters, suitable for large storage tanks.
• Cost & Maintenance: 80G radar level transmitter is maintenance-free and has lower costs, while the GWR has slightly higher maintenance costs.

Wepower Electronic has been deeply involved in the field of level transmitter for over 20 years. From floats type and magnetic level gauges to radar level meter, we use our core technologies to cover the needs of various industries, providing stable and reliable level measurement solutions for industries such as chemical, energy, metallurgy, medical and food, etc.
