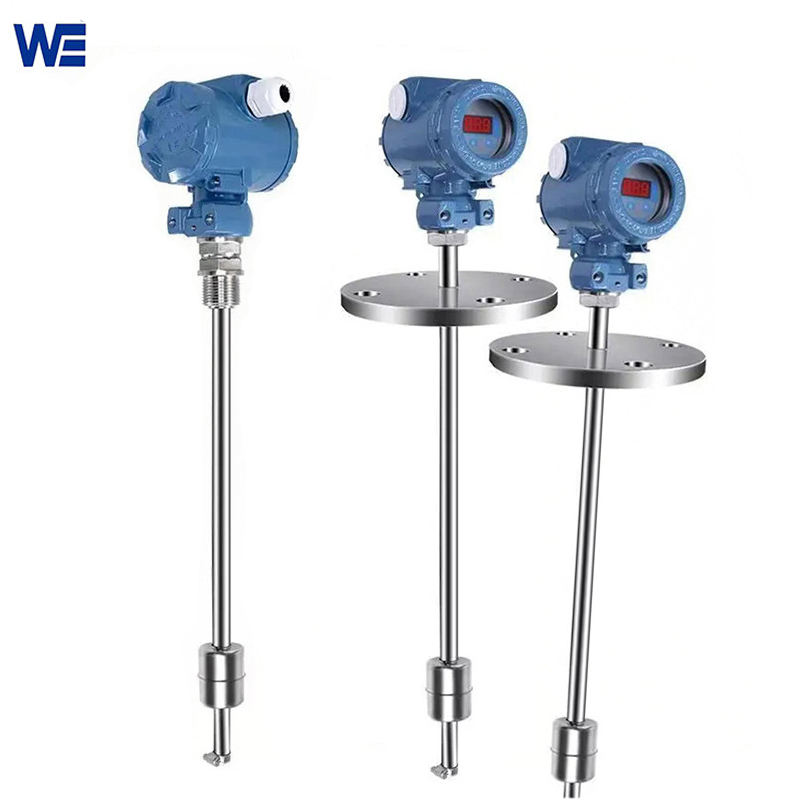

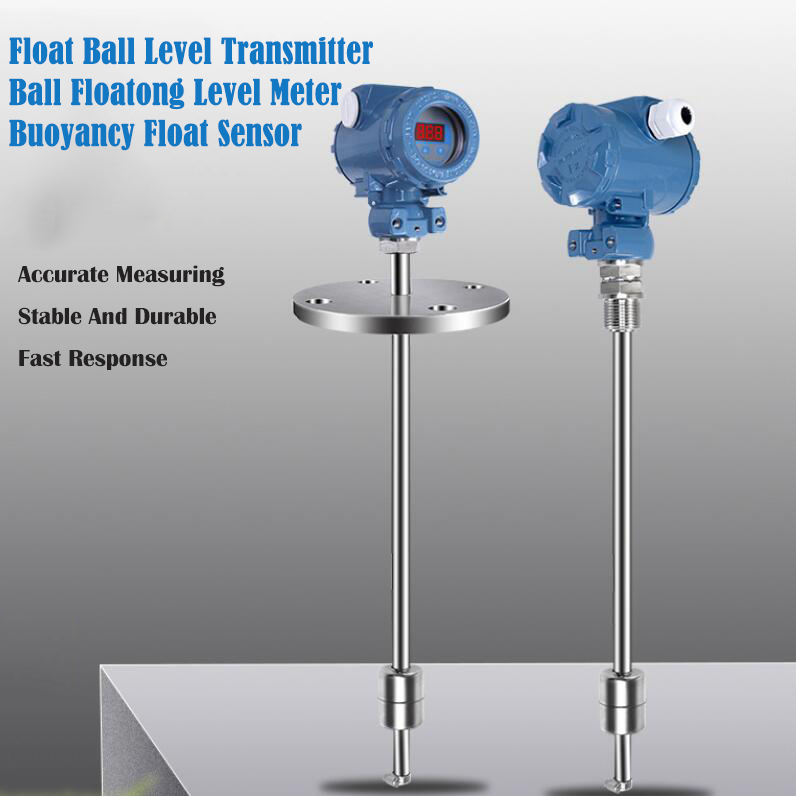

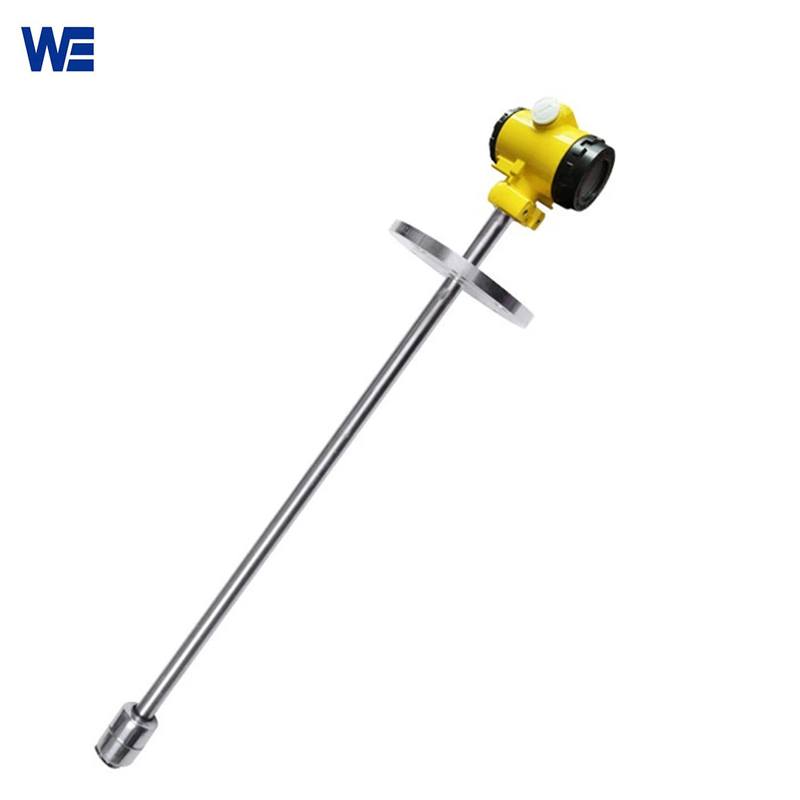

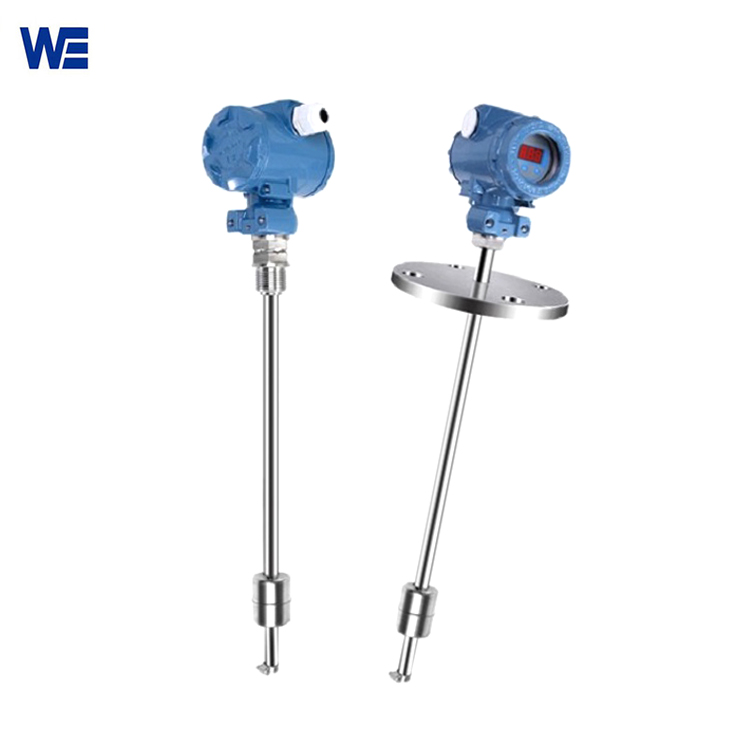

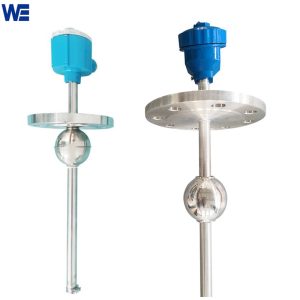

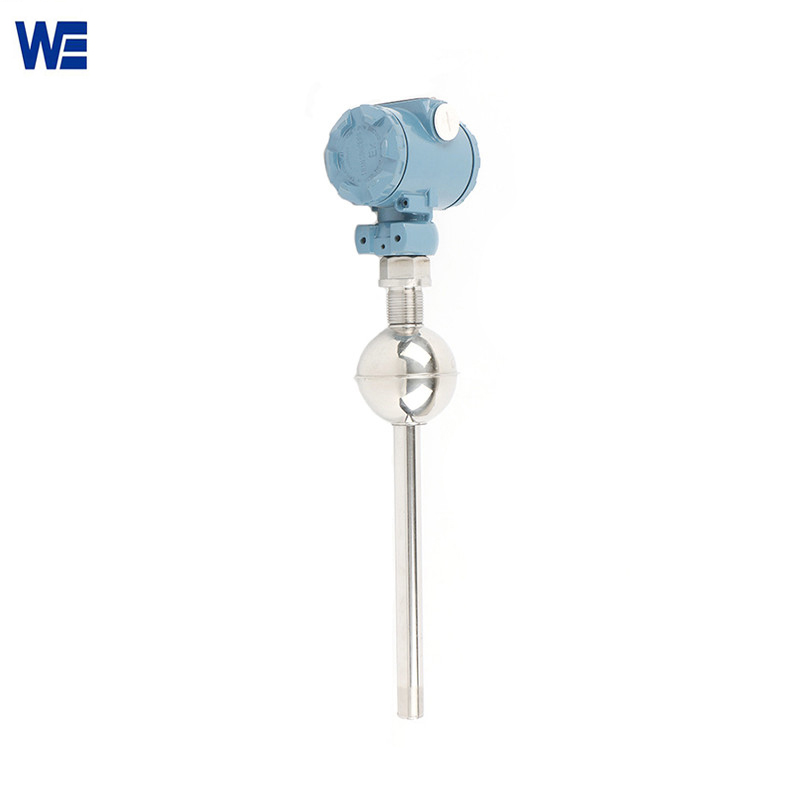

Ball Floating Level Meter

What’s The Principle Of Ball Floating Level Meter?

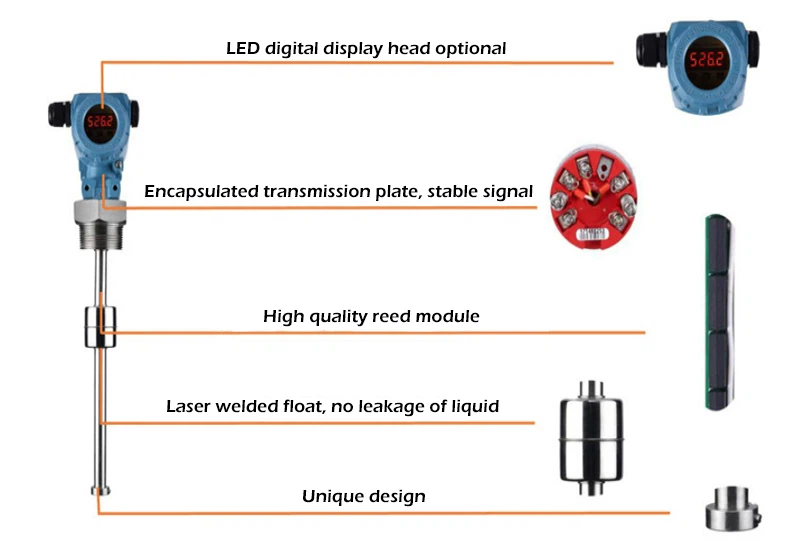

The reed switch and the precision resistor are evenly fixed in a closed non-magnetically conductive conduit. When the float ball with the inner hollow and fixed ring magnetic steel floats up and down along the conduit under the force of liquid buoyancy, the reed switch is in the magnetic force. And then the resistance value of the circuit is changed under the action, and the analysis and processing element in the circuit detects the change of the resistance value and converts it into a standard signal output of 4-20mA to realize the continuous control of the liquid level.

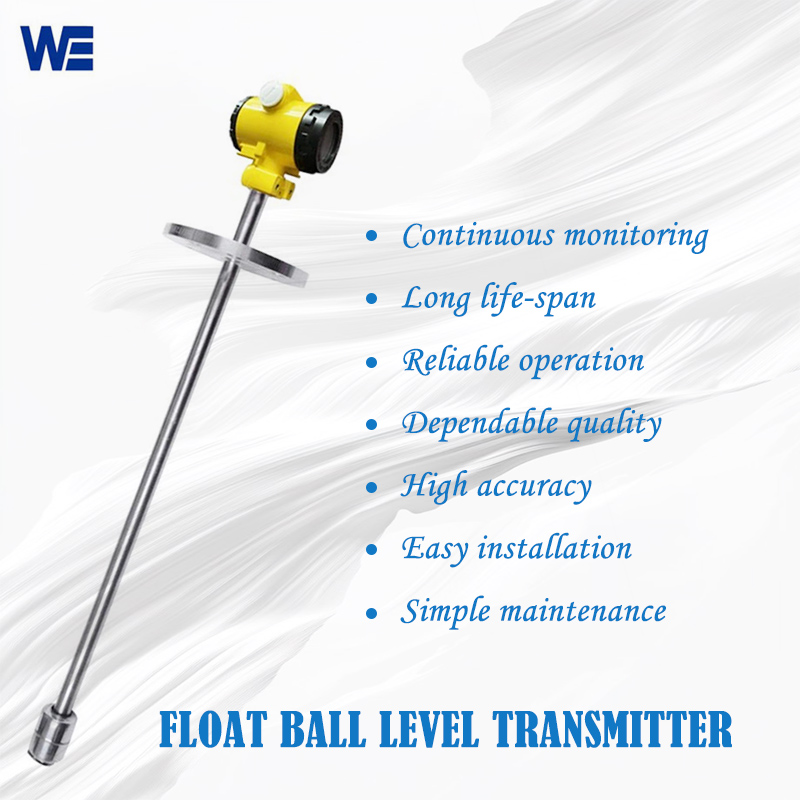

What Are The Features Of This Ball Floating Level Meter Produced By Wepower?

• Won’t be affected by foam and electrical conductivity;
• Various different materials, and can adapt to the needs of different scenarios;
• Suitable for remote controlling and also on-site monitoring;
• Easy installation, simple normal maintenance, and brighter display screen;
• Measurement range can be made according to customers’ different requirements.
