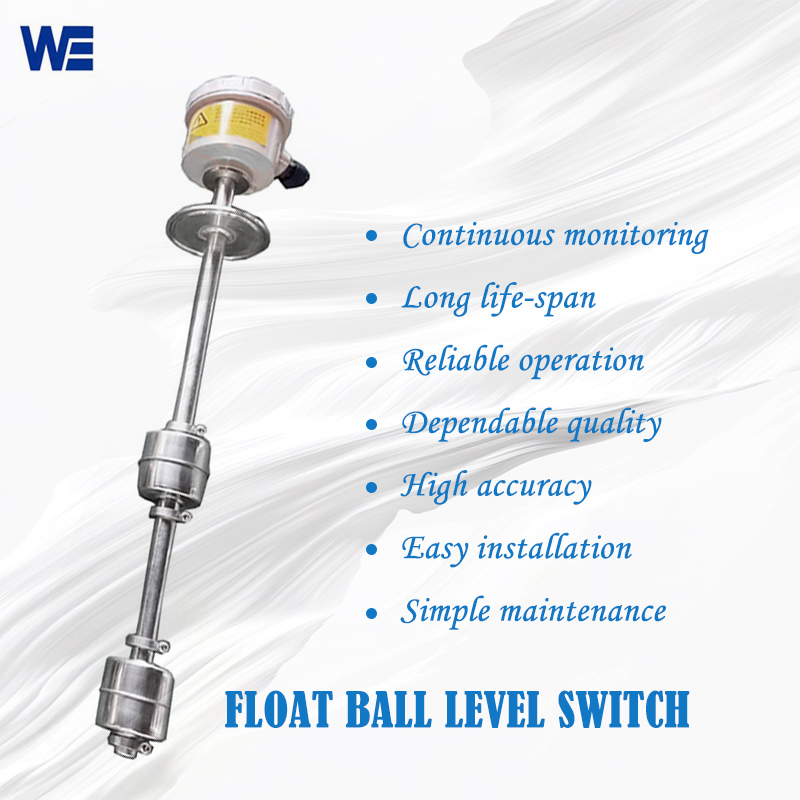

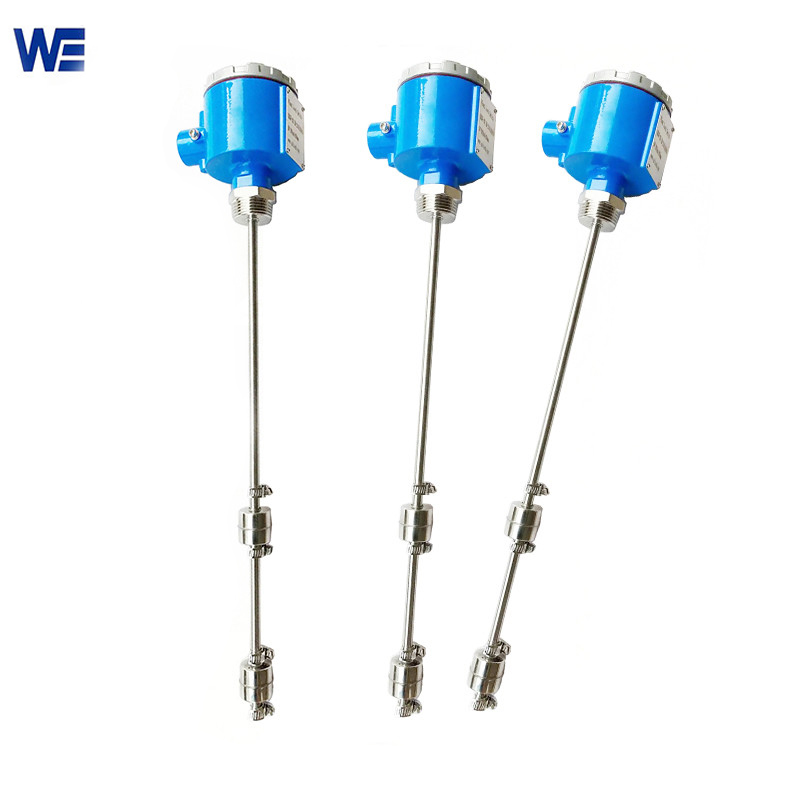

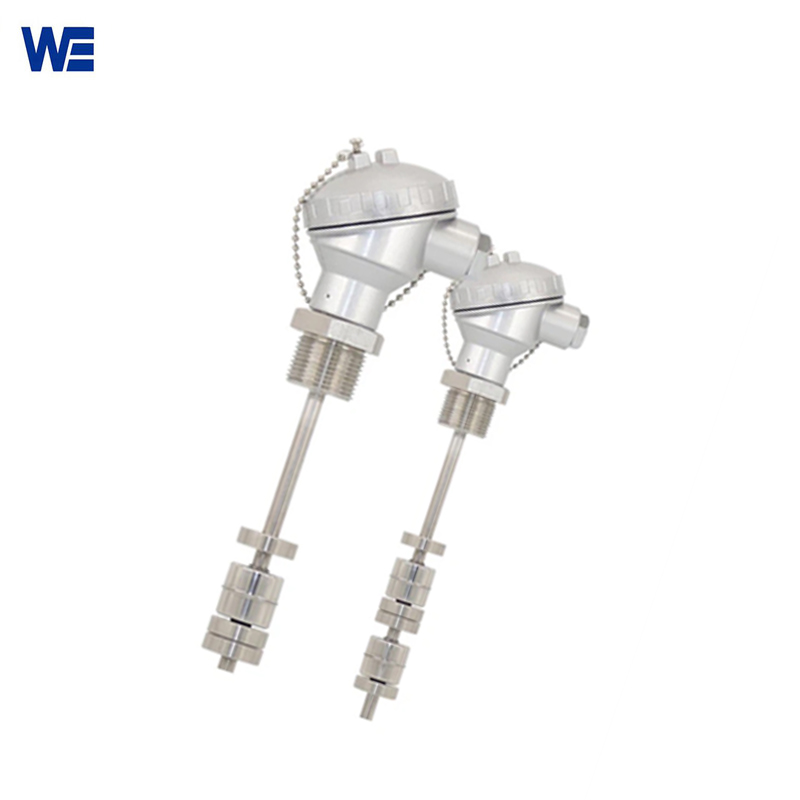

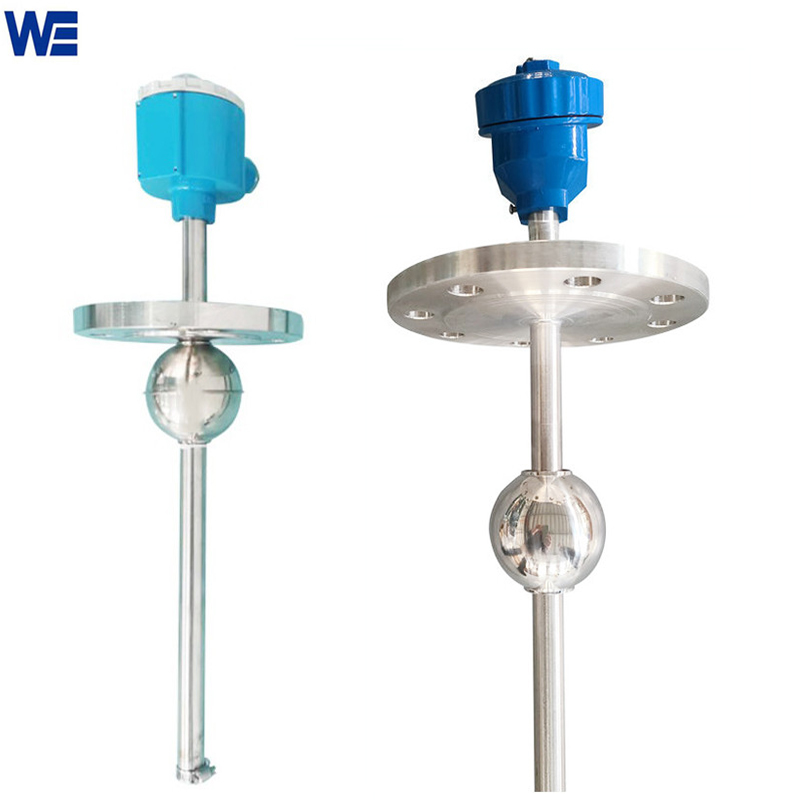

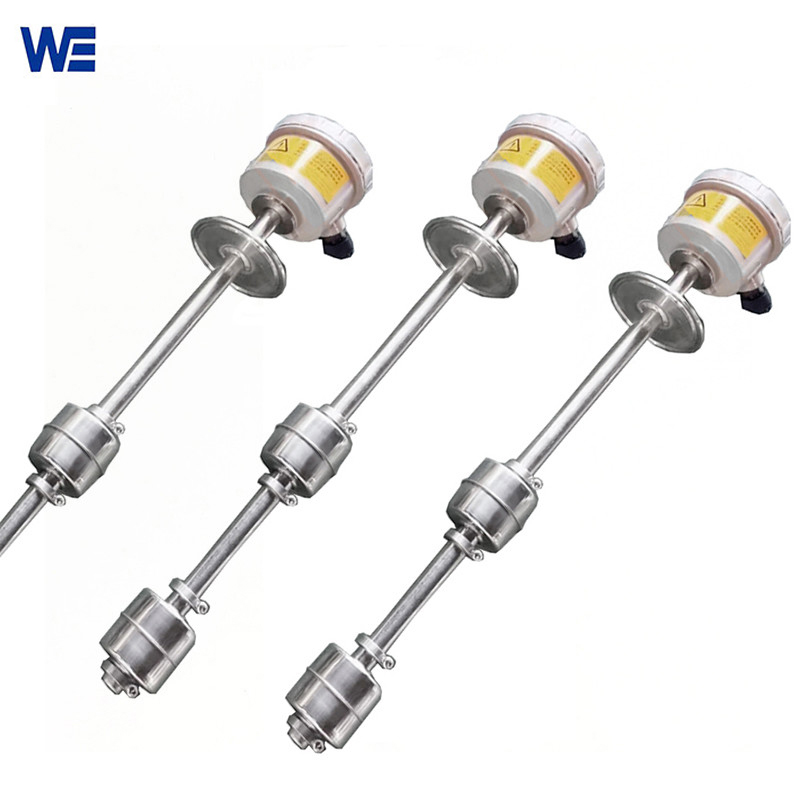

Float Ball Liquid Level Sensor
Float ball liquid level sensor is also called buoyancy liquid level switch, which is suitable for level controlling and monitoring. Compared to conventional mechanical switches, it is more reliable, compact, and operates more quickly and has long operating life. So, never mind to communicate with us for our cheerful cooperation!
What Need To Know When You Use This Float Ball Liquid Level Sensor?
- Daily Maintenance: Regular remove the dirt on the connecting rod, check whether the screws on the ring buckle are loose;
- Unpacking And Inspection: Firstly, the package should be intact, and if you find the products are damaged or parts of the product is loose or fall off when unpacking,please contact our company in time;
- Installation And Instructions: The installation position should be far away from the liquid inlet.
Product Name Float Ball Liquid Level Sensor Measuring range L≤6000mm Specific gravity of medium ≥0.8 Contact Rating 50W/200VAC,250VDC 40W/250VAC
10W/110VAC
Working Pressure Metal type: -1.0~3.5MPa Plastic type: 0~0.5MPa
Process Connection Thread; Flange(DN50-150); Clamp Power supply DC24V Measurement accuracy L=500~1000mm, ≤±1.5%FS; ﹥1000mm, ≤±1.0%FS
Load Resistance 0~750Ω Working Temperature -20~120℃（MAX：200℃） Wetted Material SUS304, SUS316L, PP, PTFE Contact Type SPST/ option SPDF Housing Encloser Water proof, explosion-proof(Ex d) Medium Density ≥0.5g/cm3 Working Current 1A(50W,40W); 0.5A(10W)
