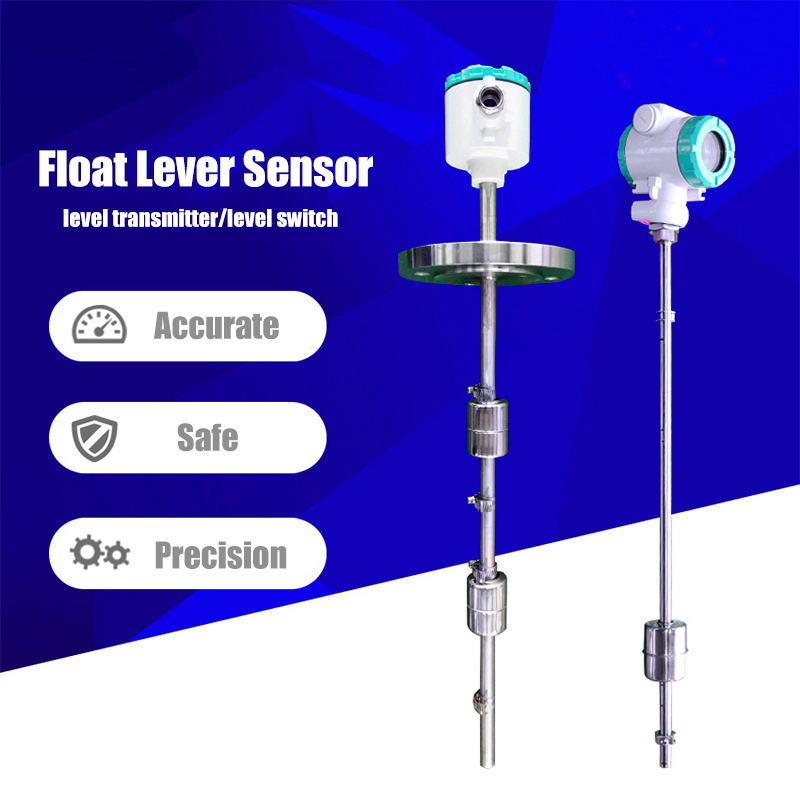

Diesel Fuel Tank Level Sensor
As the professional supplier of various level measuring instruments, Wepower produce high quality and good performance diesel fuel tank level sensors which will bring you unique satisfaction.
Diesel Fuel Tank Level Sensors are used in various industrial fields. Fuel tank level meter is a level meter specially used to measure liquid in tanks.
What is the difference between a float level gauge and a float level switch?
Our company’s float level gauge and float level switch use the same operating principle, the difference is mainly reflected in the external aspects.
The float level gauge has a display screen that can output a 4-20mA signal, but the float level switch does not have a display dial that displays “output signal”.
What are the commonly used specifications of float level gauges?
The general materials of Diesel tank level meter are: SS304, SS316, PP, PTFE.
The measurement range is within 6000mm.
Fuel tank level meter power supply is DC24V.
Generally, float level gauges and float level switches are affected by density.
| Measuring range | L≤6000mm |
| Specific gravity of medium | ≥0.8 |
| Container flange | DN50~DN150 |
| Pressure Level | 0.6~2.5MPa |
| Output signal | 4-20mA |
| Power supply | DC24V |
| Measurement accuracy | L=500~1000mm, ≤±1.5%FS; ﹥1000mm, ≤±1.0%FS |
| Load Resistance | 0~750Ω |
