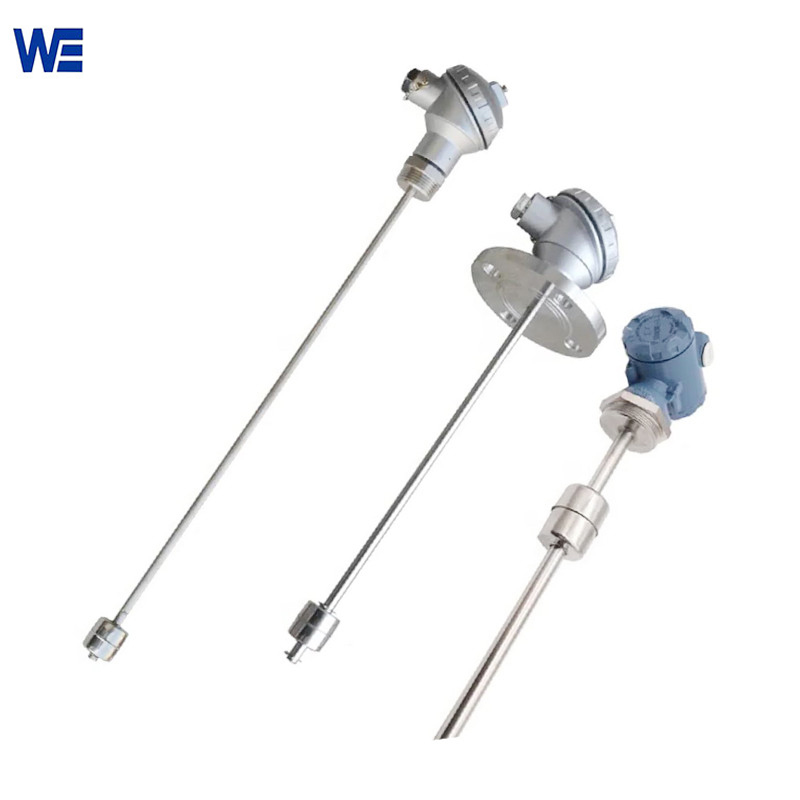

Magnetic Type Level Transmitter

Wepower Electronic Magnetic Type Level Transmitter is a continuous liquid level measurement instrument. Magnetic type level transmitter outputs standard 4-20mA current signal, Hart. Magnetic type level transmitters are customized products according to customer requirements. There are 300-6000mm lengths for customers to choose. Wepower magnetic type level transmitters can be used to measure water, dilution chemicals, solutions, light oil, diesel oil, etc.

What’s The Working Principle Of Magnetic Type Level Transmitter?

The magnetic float moves up and down on the guide rod as the liquid level in the tank changes. During this process, the magnetic float and the reed switch in the guide rod continuously perform magnetic coupling. This makes the resistance value in the guide rod change continuously, at this time, the intelligent converter of the magnetic type level transmitter converts the resistance change into an electrical signal and transmits it to the instrument head to display the liquid level value.
