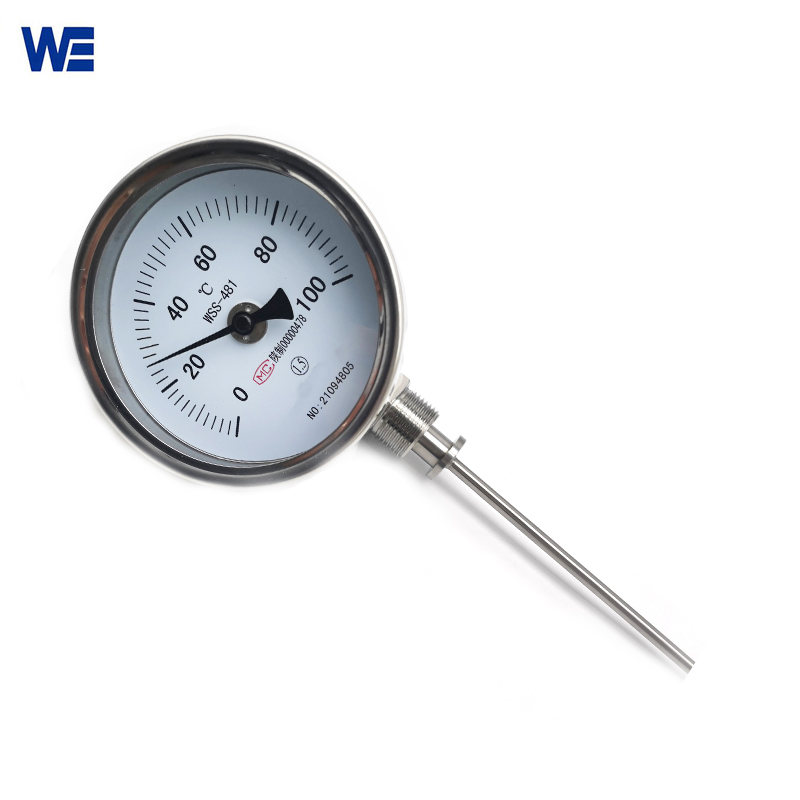

Bimetallic Thermometer
Wepower Electronic can provide a variety of customized services of bimetallic thermometer, such as connection direction, installation and fixing methods.
Wepower Electronic Can Provide Different Customized Services:
Bimetallic Thermometer comes in a variety of installation and fixing methods to accommodate real-world requirements, including movable external threaded pipe joints, movable internal threaded pipe joints, fixed threaded joints, adjustable threaded joints, movable flange joints, and fixed flanges.

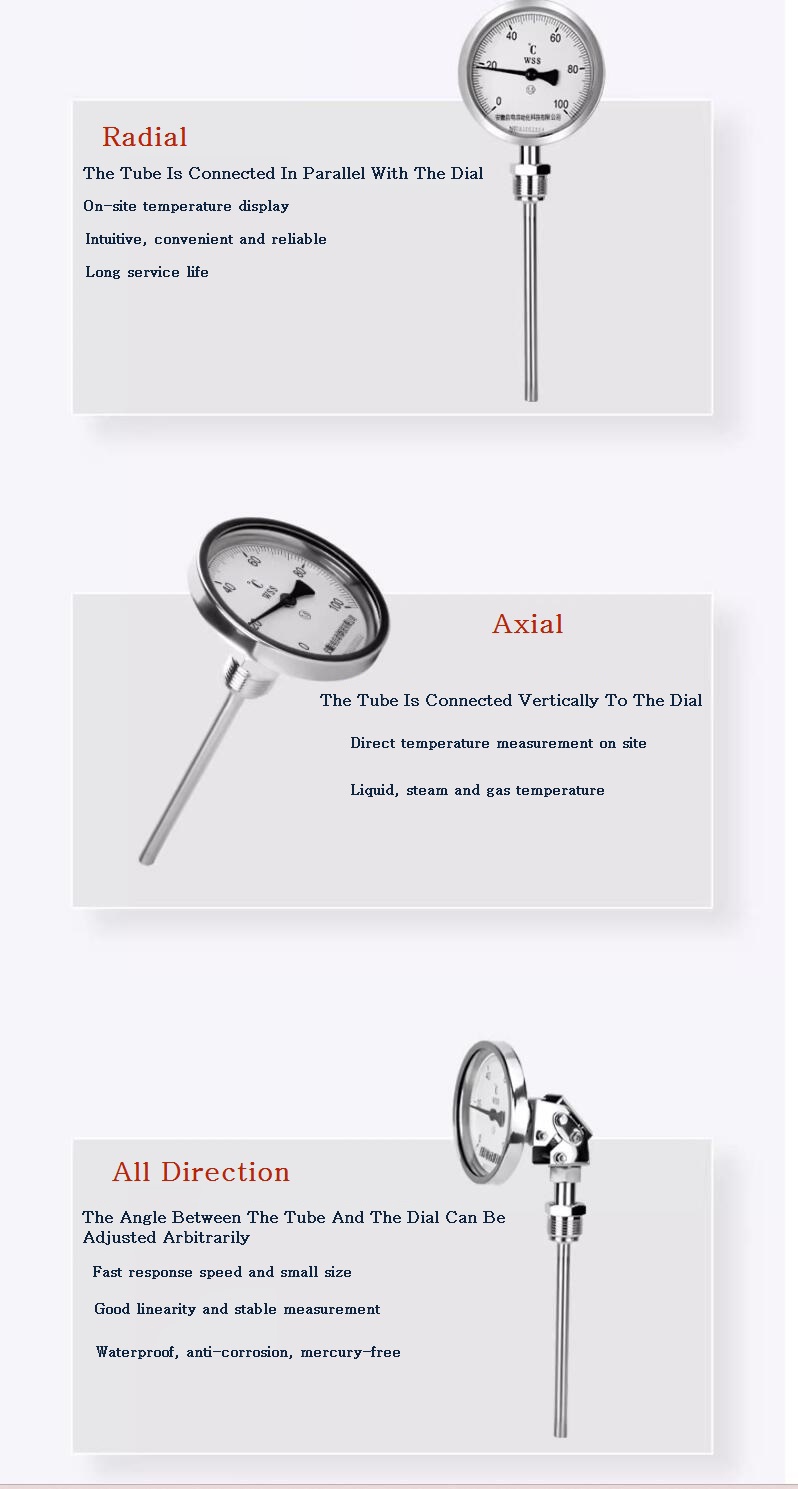

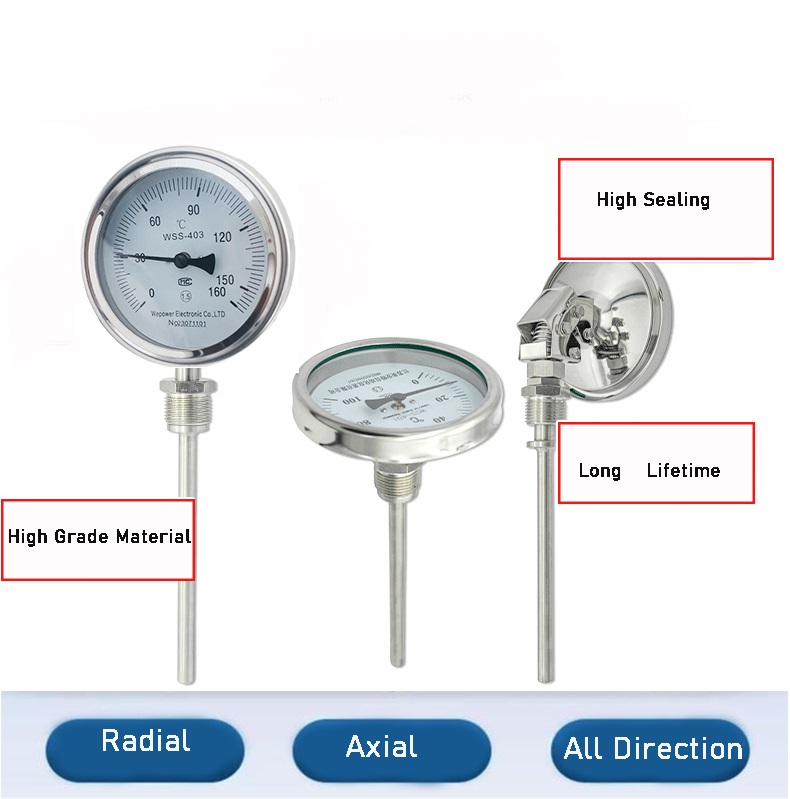

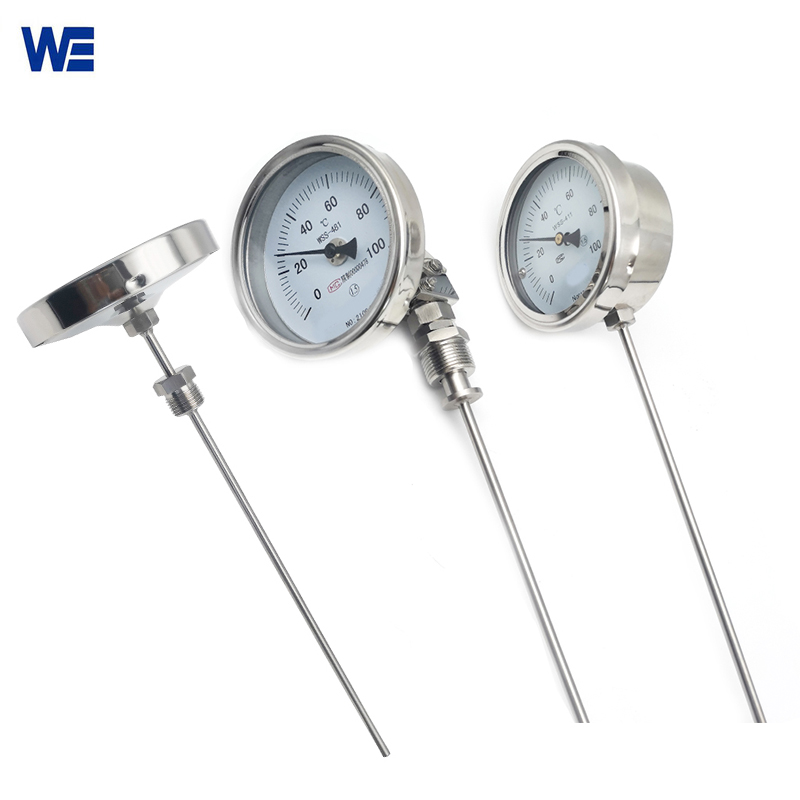

Connection Direction Of Bimetallic Thermometer:
â–²Axial bimetallic thermometer : The pointer disc is connected vertically with the protection tube.
â–²Radial bimetal thermometer: The pointer disc is connected in parallel with the protection tube.
â–²Universal bimetal thermometer: Also known as an adjustable angle type bimetallic thermometer, the angle at which the pointer plate and protective tube are connected can be changed at will.
Parameters:
| Product Name | Bimetallic Thermometer |
| Temperature Range | -30…+60,0….100,0…120,0…160,0…200,0…300,
0…350,0…400,0..500,0…600 |
| Material | stainless steel 304/316 |
| Accuracy | 1.5% of range |
| Diameter of Dial Indicator | φ100mm; 150mm; 75mm; 63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process connecting Method | Without fixed
Movable thread outer Movable thread inner Fixed thread Fixed flange Adjustable thread Adjustable flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4,M33×2 |
| Direction | Axial/Radial |
| Contact Type(for electric contact type) | NO, NC, NONO, NCNC, NONC, NCNO, SPDT |
