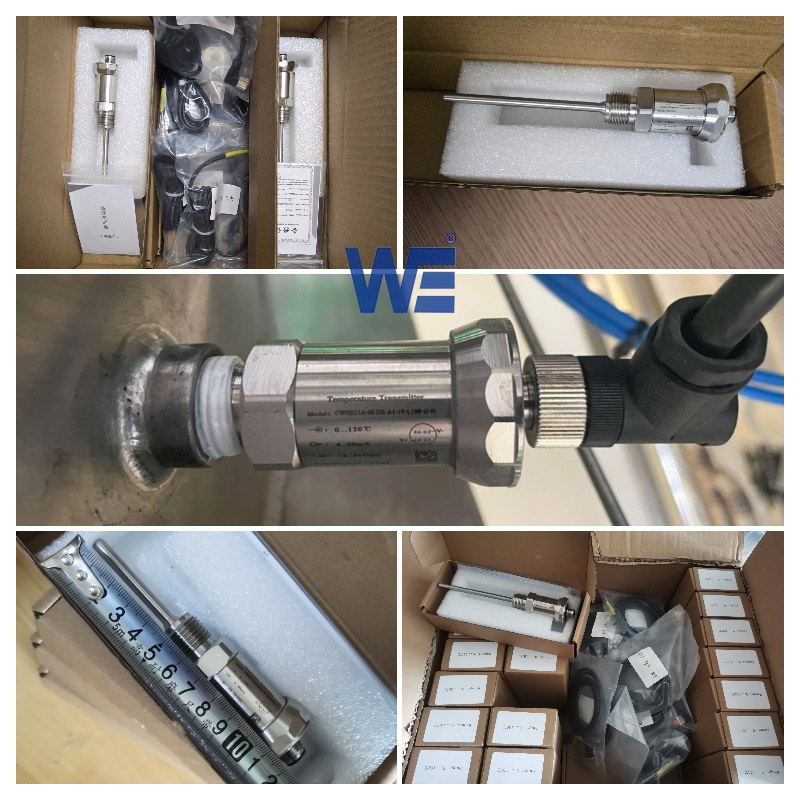

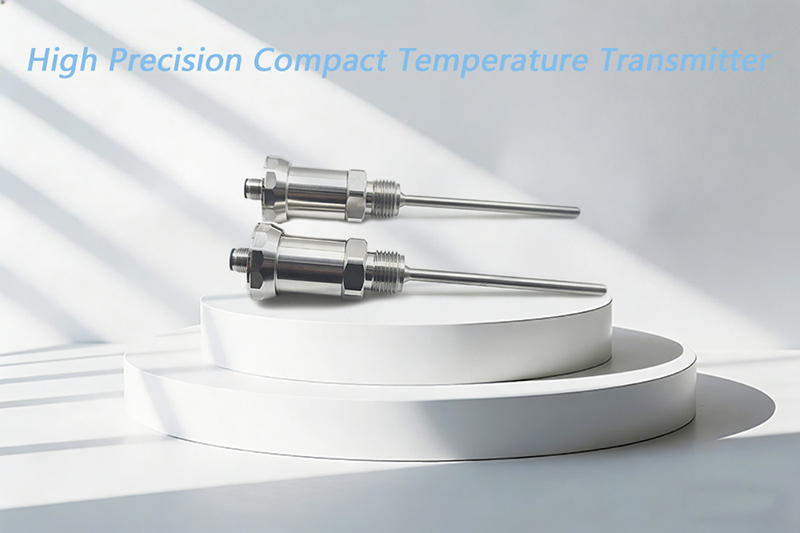

Compact Temperature Transmitter
To address the demand for miniaturized temperature measurement equipment in fields such as industrial automation and marine engineering, Wepower has launched a compact type temperature transmitter. The housing and probe feature a robust stainless steel feel and stability, with 4-20mA output, it provides a lightweight and reliable solution for temperature measurement and control.
Working Principle Of The Compact Temperature Transmitter:
Wepower’s compact temperature transmitter is a device that integrates temperature acquisition and transmission. It converts the temperature signal into a 4-20mA output signal through a resistance temperature detector (RTD), enabling real-time and accurate transmission of temperature data.
Customized Adaptation:
- For Narrow Temperature Measurement Points In Various Pipelines: custom-made short probes are available.
- Depth Temperature Measurement Of Industrial Kilns: customization extended high-temperature resistant probes.
Wepower can provide customized designs for probe length, diameter, and connection method.
Parameters:
| Medium | Liquid, Gas |
| Input | PT100/PT1000 |
| Range | -200～+350℃ |
| Accuracy | ±0.5% |
| Temperature change effect | For 0.5 grade：0.05%F.S/℃ |
| Protection tube diameter | Φ5,Φ6,Φ8(mm) |
| Protection tube material | SS304/316 |
| Output | 4～20mA(two-wire); RS485; 0-5VDC; 1-5VDC; 0-10VDC |
| Display | With display/Without display |
| Installation | Fixed thread, adjustable thread, Fixed flange, adjustable flange, tri-clamp |
| Electrical Connection | Hersman joint; Aviation joint |
| Power supply | 12～36VDC, nominal voltage 24VDC |
| Operating temperature range | -50～+300℃ |
| Storage Temperature | -45～+125℃ |

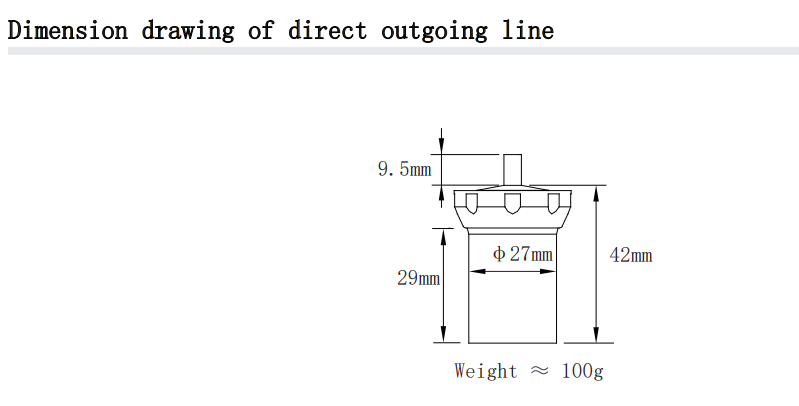

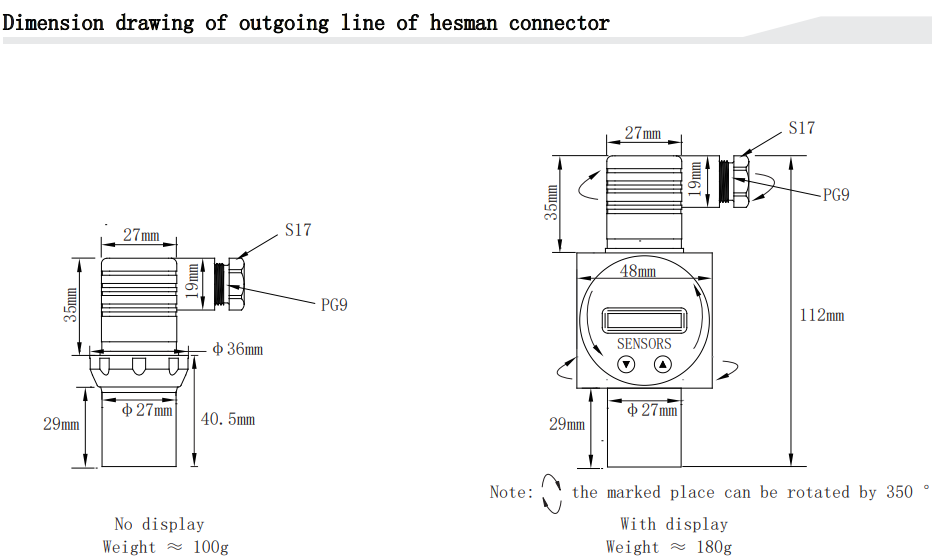

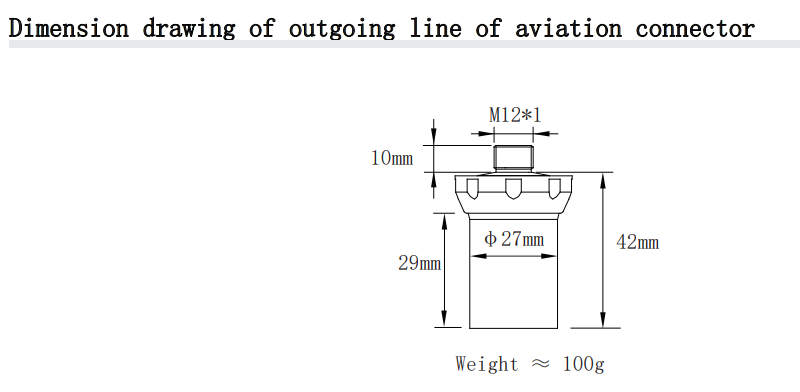

Dimension:
