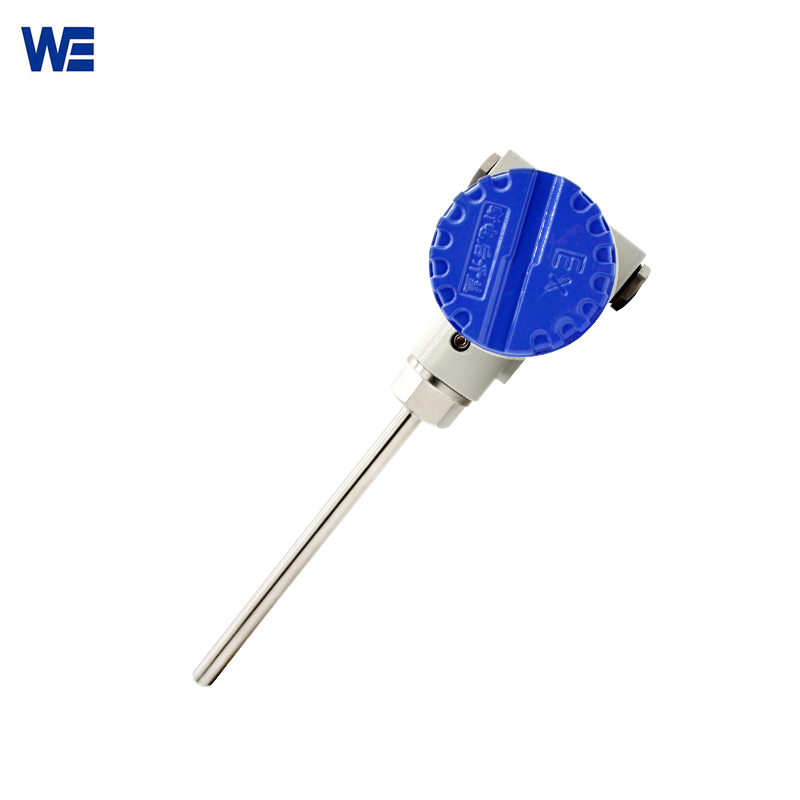

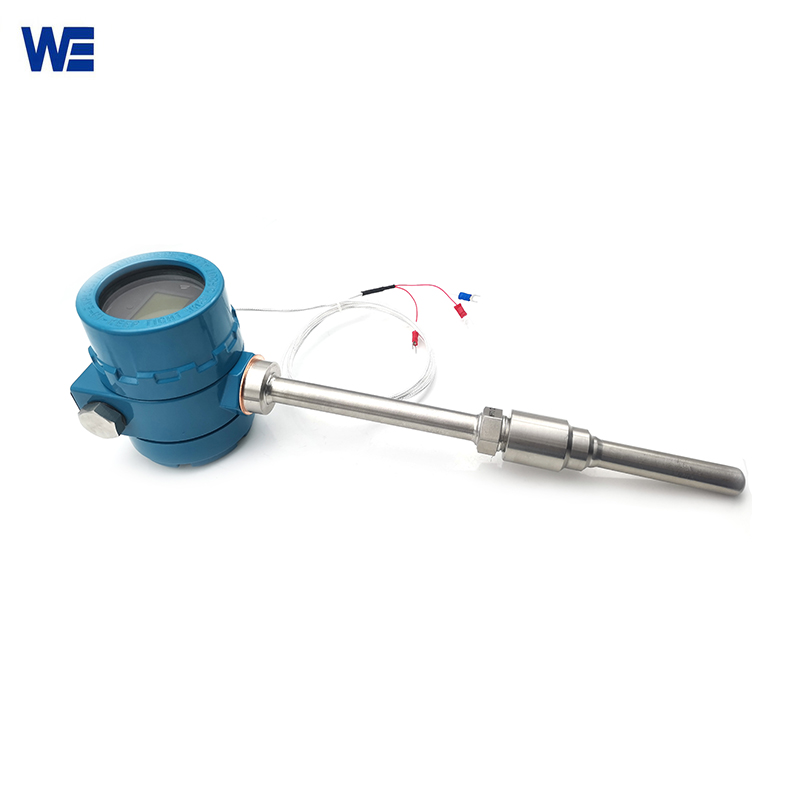

RTD Thermocouple Transmitter
RTD Thermocouple Transmitter produced by Wepower Electronic has precise measurement, high-definition display, stable quality, and provides various customized services.
Measuring Principle Of RTD Thermocouple Transmitter:
Two wires are utilized as the power input and the signal output common transmission line in RTD Thermocouple Transmitters, which convert thermocouple or RTD signals into linear output signals of 4-20mA/0-10v or input electrical signals or measured temperature.
Where Is The RTD Thermocouple Transmitter Used?
â–²Process Industry:
- Chemistry and Chemical Engineering
- Pharmaceutical Industry
- Food Processing
Installation of RTD thermocouple transmitters ensures product quality.
â–²Energy Industry:
- Water treatment
- Power plants
- Oil and gas industry
RTD thermocouple transmitter can Improve energy efficiency.
â–²Manufacturing:
- Automobile production
- Hot air furnace
- Ceramic Industry
- papermaking and other industries
Temperature transmitters also play an important role in the detection process.
Parameters:

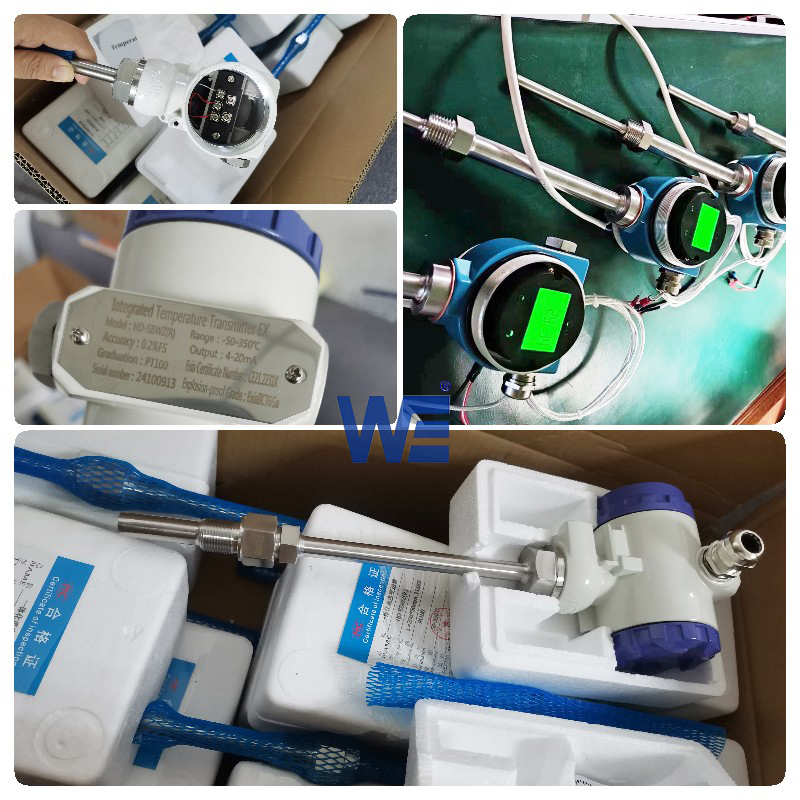

| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |
| Product Name | RTD Thermocouple Transmitter |
| Explosion-proof grade | d∥BT4, d∥CT5 |
| Input | thermal resistance Pt100, Pt1000 (-200～600℃) |
| Thermocouple K, E, S, B, T, J, N | |
| Output | 4-20mA signal within the measuring range can be linear with the output resistance signal of the thermal resistance thermometer, can be linear with the input temperature signal of the thermal resistance thermometer. |
| 4-20Ma can be linear with the millivolt signal input by the thermocouple, It can also be linear with the input temperature signal of the thermocouple thermometer. | |

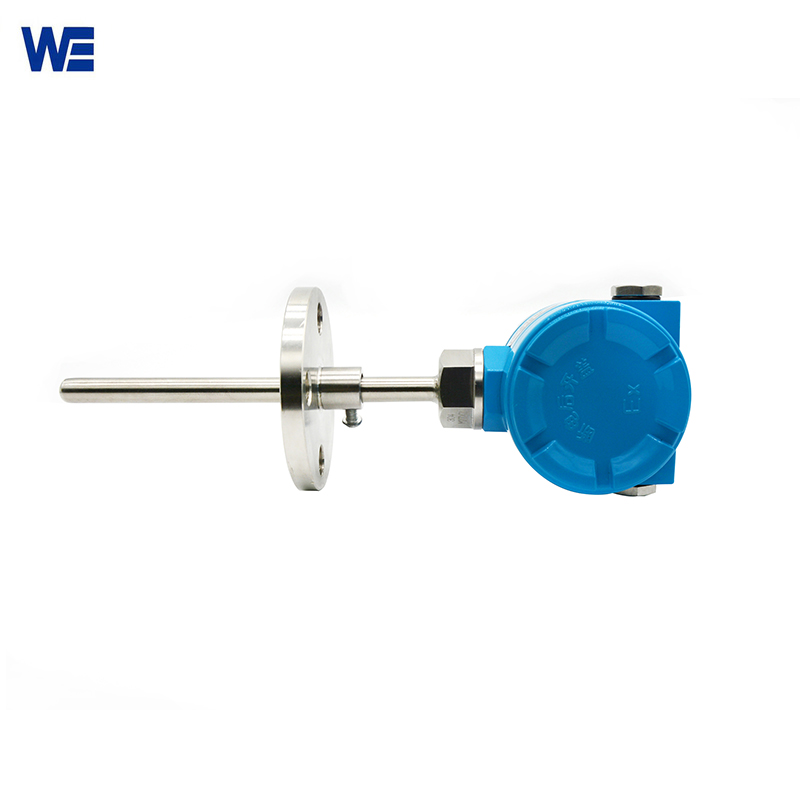

| Process Connecting | 1: No fixed device; 2: Fixing thread; 3: Movable flange; 4: Fixed flange; 5:Rectangular movable flange; 6: Taper thermowell and fixing thread |
| Basic error | ±0.2%, ±0.5% |
| Power Supply | 12-35VDC |
| Transmission method | Two-wire system |
| Electrical interface | M20x1.5, NPT1 / 2 |
| Measuring range | Thermocouple：0~1300 degrees Celsius（0-1100℃for long time usage） |
| RTD : -200~500 ℃ | |
| Protecting tube material | 1Cr18Ni9Ti /SS304/SS316/SS316L/SS310S/ |
| Thermocouple Wire Dia | 2mm/2.5mm (Can be customized ) |
| Displaying | LED/LCD/ Without display |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
