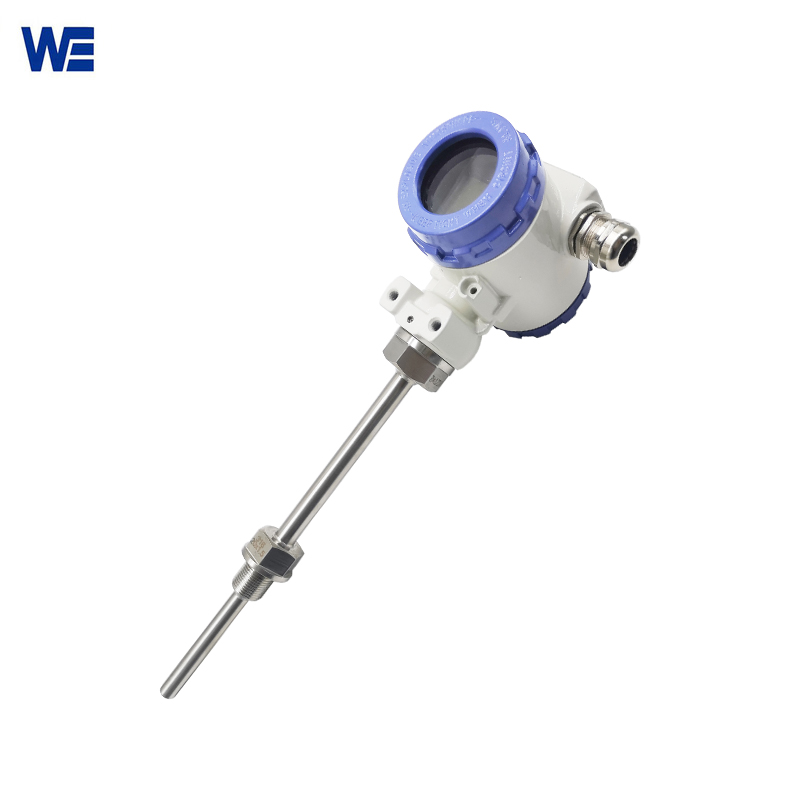

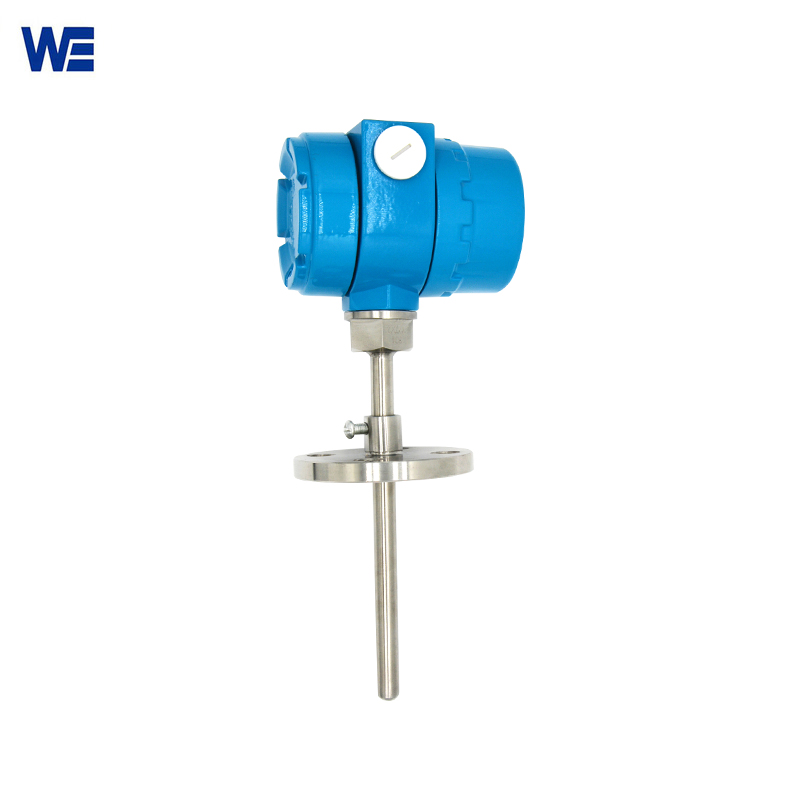

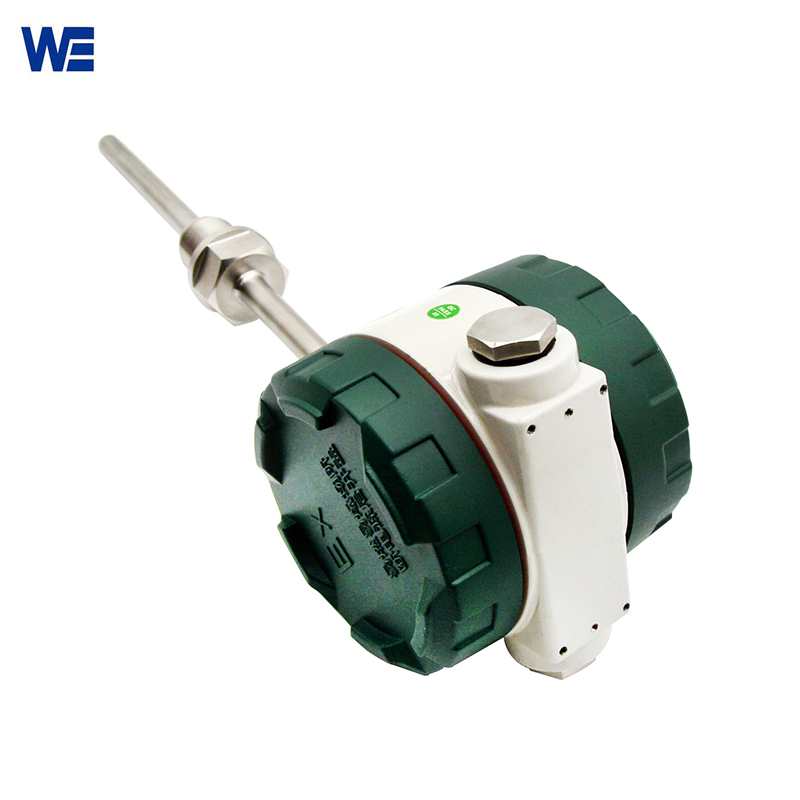

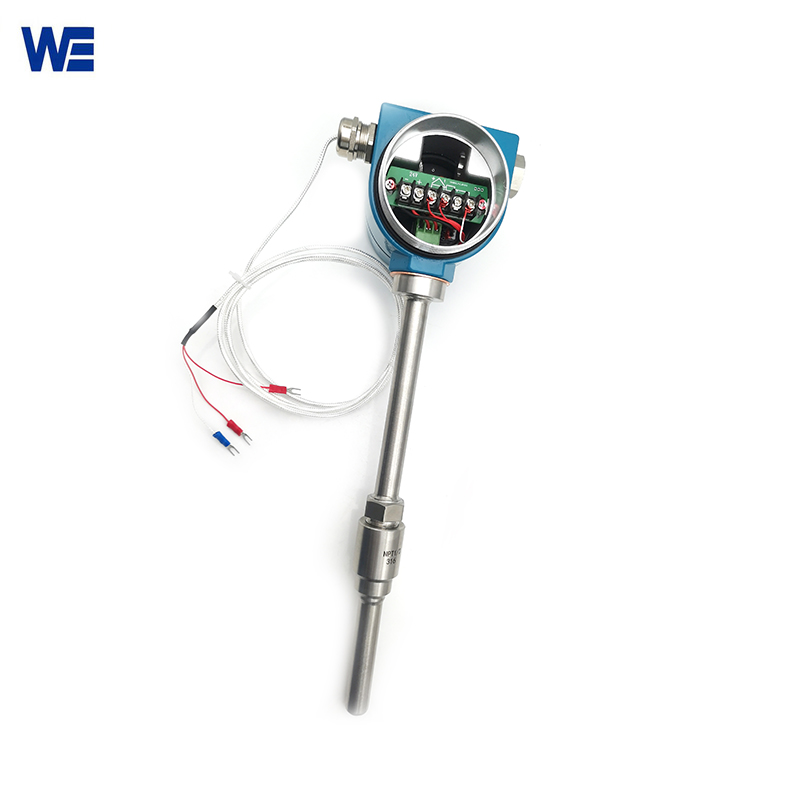

PT100 Temperature Transmitter
PT100 Temperature Transmitter produced by Wepower Electronic is widely used in sewage treatment, electroplating metallurgy, petrochemical industry, textile industry, heating system and other industries.
Advantages Of PT100 Temperature Transmitter Produced By Wepower Electronic:
- Wide Range Of Applications
PT100 Temperature Transmitter produced by Wepower Electronic is widely used in sewage treatment, electroplating metallurgy, petrochemical industry, textile industry, heating system and other industries.
- Comprehensive services
Wepower Electronic can provide customized services for different requirements of customers, including the length of wetted tube, tube diameter, thread type, color, etc. Wepower Electronic has many years of industry experience, professionalism creates quality!
Parameters:
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |
| Product Name | PT100 Temperature Transmitter |
| Explosion-proof grade: | d∥BT4, d∥CT5 |
| Input | thermal resistance Pt100, Pt1000 (-200～600℃) |
| Thermocouple K, E, S, B, T, J, N | |
| Output | 4-20mA signal within the measuring range can be linear with the output resistance signal of the thermal resistance thermometer, can be linear with the input temperature signal of the thermal resistance thermometer. |
| 4-20Ma can be linear with the millivolt signal input by the thermocouple, It can also be linear with the input temperature signal of the thermocouple thermometer. | |
| Process Connecting | 1: No fixed device; 2: Fixing thread; 3: Movable flange; 4: Fixed flange; 5:Rectangular movable flange; 6: Taper thermowell and fixing thread |
| Basic error | ±0.2%, ±0.5% |
| Power Supply | 12-35VDC |
| Transmission method | Two-wire system |
| Electrical interface | M20x1.5, NPT1 / 2 |
| Measuring range | Thermocouple :0~1300 degrees Celsius（0-1100℃for long time usage） |
| RTD : -200~500 ℃ | |
| Protecting tube material | 1Cr18Ni9Ti /SS304/SS316/SS316L/SS310S/ |
| Thermocouple Wire Dia | 2mm/2.5mm (Can be customized ) |
| Displaying | LED/LCD/ Without display |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |

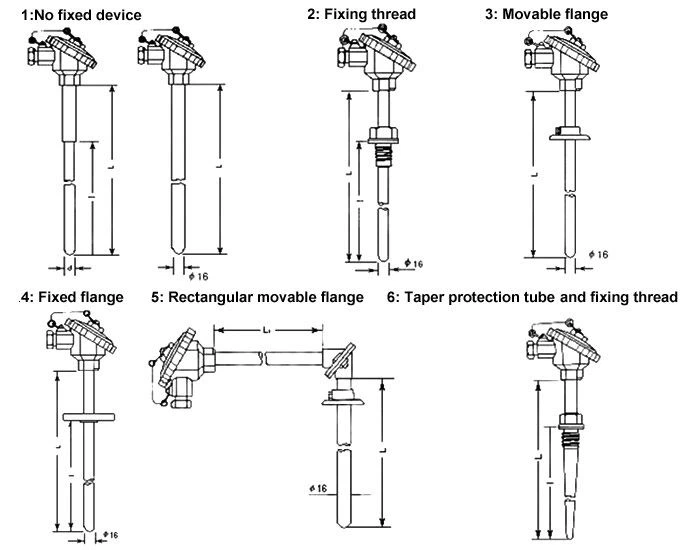

Installation Guidance:
