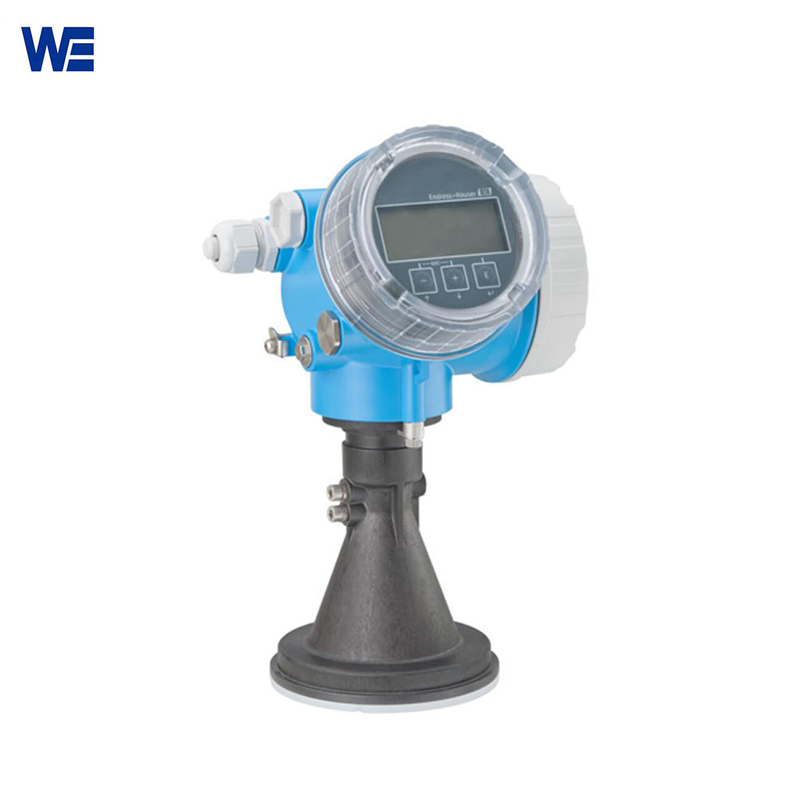

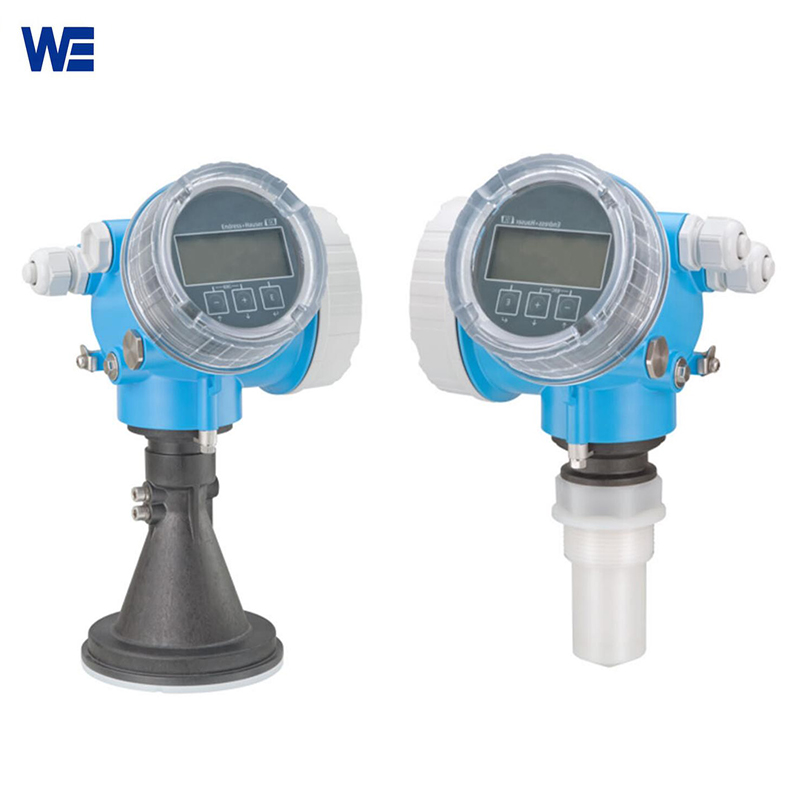

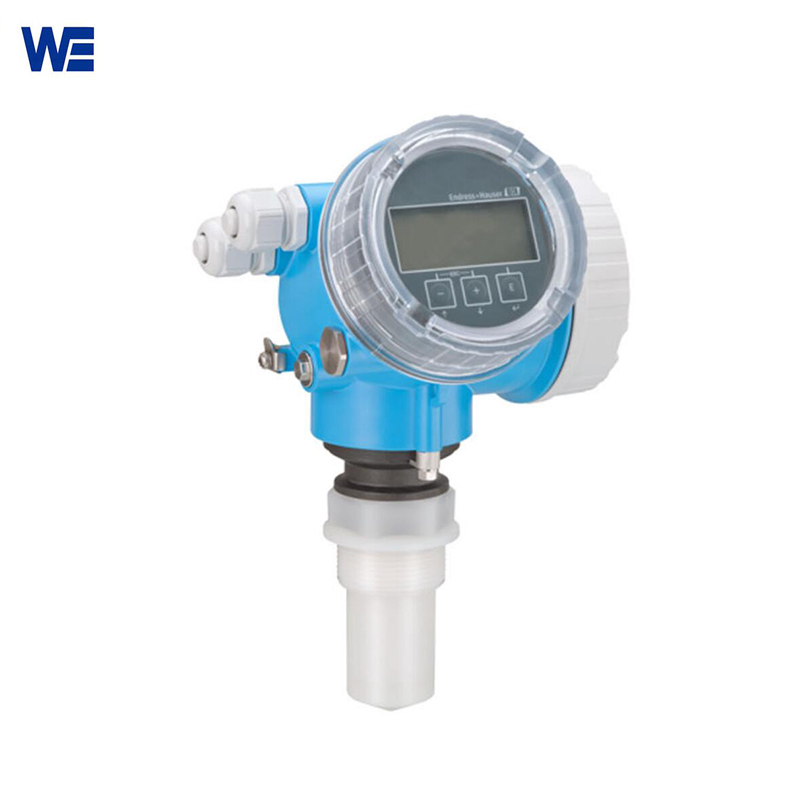

E+H Micropilot FMR50 Radar Level Meter
An effective radar level meter for measuring pastes, slurries, and other liquids is the Micropilot FMR50 radar level meter. The great measurement accuracy and adaptability of the Endress+Hauser FMR50 radar level transmitter make it an ideal measurement tool.
Features&Advantages Of E+H Micropilot FMR50 Radar Level Meter:
A non-contact radar level meter for measuring the level of liquids or slurries in enclosed tanks is the E+H Micropilot FMR50 Radar Level Meter. With a 2mm accuracy, the Micropilot FMR50 is a premium E+H radar level meter. The E+H FMR50 radar level transmitter’s chip uses the most advanced technology available in the industry, and because of this, the measurement is largely stable and unaffected by changes in temperature, gas in the tank, steam, etc.
Wepower Electronic offers first-hand new E+H products at the best prices, supplying customers all over the world with high-quality, original, and authentic E+H products. We have E+H regular inventory, and you are welcome to contact us.
Parameters:
| Name | E+H Micropilot FMR50 Radar Level Meter |
| Measuring Principle | Radar |
| Model No. | FMR50-AAACCABMGGFAK |
| Characteristic / Application | For basic level measurement in liquids, pastes and slurries; non affected by changing media, temperature changes, gas blankets or vapor;
Encapsulated PVDF or PP clad horn antenna |
| Specialties | Heartbeat Technology,
SIL 2 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi-Echo Tracking, HistoROM, RFID TAG for easy identification |
| Supply / Communication | 2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART) Bluetooth® wireless technology and App (optional) |
| Frequency | K-band (~26 GHz) |
| Accuracy | +/- 2 mm (0.08 in) |
| Ambient temperature | -40…+80 °C
(-40…+176 °F) |
| Process temperature | -40…+130 °C
(-40…+266 °F) |
| Process pressure / max. over-pressure limit
|
Vacuum…3 bar
(Vacuum…43.5 psi) |
| Main wetted parts | PVDF, Viton, PP, PBT |
| Process connection | Thread:
G1 1/2, MNPT1 1/2 Flange: UNI DN80…DN150 (3″…6″) |
| Max. measurement distance | Standard: 30 m (98 ft)
With advanced dynamics: 40 m (131 ft) |
| Communication | 4…20 mA HART
PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
| Certificates / Approvals | ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex |
| Safety approvals | Overfill protection WHG
SIL |
| Options | Display,
Customized parameterization, PWIS free, Remote operation via SmartBlue App using Bluetooth® |
| Application limits | Ammoniacal gas phase:
FMR54 in stilling well Strong build-up formation: FMR54 with air purge Low DK: FMR51 Only PTFE resistant: FMR52 Custody transfer measurement: FMR5xx |
Other Popular E+H Products Which We Have Advantage :
PMD55B-BFBACBH37CCASAJA1D+Q1VDÂ Â Â Â Â 0-3KPA
PMD55B-AABACBH37DCASAJA1D+Q1VDÂ Â Â Â 0-10KPA
PMD55B-BFBACBH37DCASAJA1D+Q1VDÂ Â Â Â 0-10KPA
PMD55B-AABACBH37FCASAJA1D+Q1VDÂ Â Â 0-50Kpa
PMD55B-BFBACBH37FCASAJA1D+Q1VDÂ Â Â 0-50 Kpa
PMD55B-AABACBH37HCASAJA1D+Q1VDÂ Â Â 0-300 Kpa
PMD55B-BFBACBH37HCASAJA1D+Q1VDÂ Â Â 0-300 Kpa
PMD75-BBC7FK1DAAA+N573
PMC71-ABA1C1GAAAA
PMC71-ABA1H1GAAAA
PTC31B-AA4D1FGBVWJA
CPM223/253-MR0005 CPS11D-7BA21 CYK10-A101 COM253-DX0005 COS41-4F CPM253-MR0105 FDU91-RG1AA/2AA COS61-A1F0 CPS11D-7BT21 CUS71D-AA1A FMU90-R11CA111AA3A COS61D-AA1AA3 CPS11D-7BT2G FMU40-ARB2A2 CPS11D-7AA21 CPS12D-7NA21 CUS52D-AA1AA3 CPS11D-7AS21 CPS12D-7PA21 CPS11D-7BA2G CYK10-A201
CUS51D-AAD1A3 CM42-MAA000EAZ00 FMU30 5M 8M CLM253-CD0005
Regular Large Stock :100% original *fresh factory date * competitive price * No delivery time
| Pressure Transmitter | ||||||
| differential pressure | Explosion-proof | PMD75B-QKT1/0 | PMD75B-BNBAEJH37BCASAJA1D+Q1VD | |||
| differential pressure | non explosion-proof | PMD55B-65C9/0 | PMD55B-AABACBH37DCASAJA1D+Q1VD | |||
| differential pressure | Explosion-proof | PMD55B-65A8/0 | PMD55B-BFBACBH37DCASAJA1D+Q1VD | |||
| differential pressure | non explosion-proof | PMD55B-6340/0 | PMD55B-AABACBH37FCASAJA1D+Q1VD | |||
| differential pressure | Explosion-proof | PMD55B-6594/0 | PMD55B-BFBACBH37FCASAJA1D+Q1VD | |||
| differential pressure | Flameproof | PMD55B-6568/0 | PMD55B-BFBACBH37HCASAJA1D+Q1VD | |||
| differential pressure | Flameproof | PMP55B-8WV9/0 | PMD55B-BFBACBH37LCASAJA1D+Q1VD | |||
| pressure | Flameproof | PMP51B-J7W7/0 | PMP51B-BFBACBH6AA3FCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7U6/0 | PMP51B-BFBACBH6AA3KCA1VNJA1+Q1VD | |||
| pressure | non explosion-proof | PMP51B-J7T0/0 | PMP51B-AABACBH6AA3PCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7R0/0 | PMP51B-BFBACBH6AA3PCA1VNJA1+Q1VD | |||
| pressure | non explosion-proof | PMP51B-J7Q4/0 | PMP51B-AABACBH6AA3SCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J7P9/0 | PMP51B-BFBACBH6AA3SCA1VNJA1+Q1VD | |||
| pressure | Flameproof | PMP51B-J0K0/0 | PMP51B-BFBACBH6AA3UCA1VNJA1+Q1VD | |||
| Temperature Transmitter: | ||||||
| Module (regular) | TMT72-8TN4/0 | TMT72-AAA1AABA1+F9 | ||||
| Module (intrinsically safe) | TMT72-8TP5/0 | TMT72-BAA1AABA1+F9 | ||||
| Explosion-proof case + display | TMT72-8TV8/0 | TMT72-B6A1AH4A1+F9G1 | ||||
| Explosion-proof case without display | TMT72-8TU2/0 | TMT72-B6A1AH3A1+F9 | ||||
| Rail type (regular type) | TMT72-8TQ0/0 | TMT72-AAA2AAAA1+F9 | ||||
| Rail type + Intrinsically safe | TMT72-8TR6/0 | TMT72-BAA2AAAA1+F9 | ||||
| Ultrasonic Level Sensor | ||||||
| FMU30-AAHEAAGGF | ||||||
| FMU30-AAHEABGHF | ||||||
