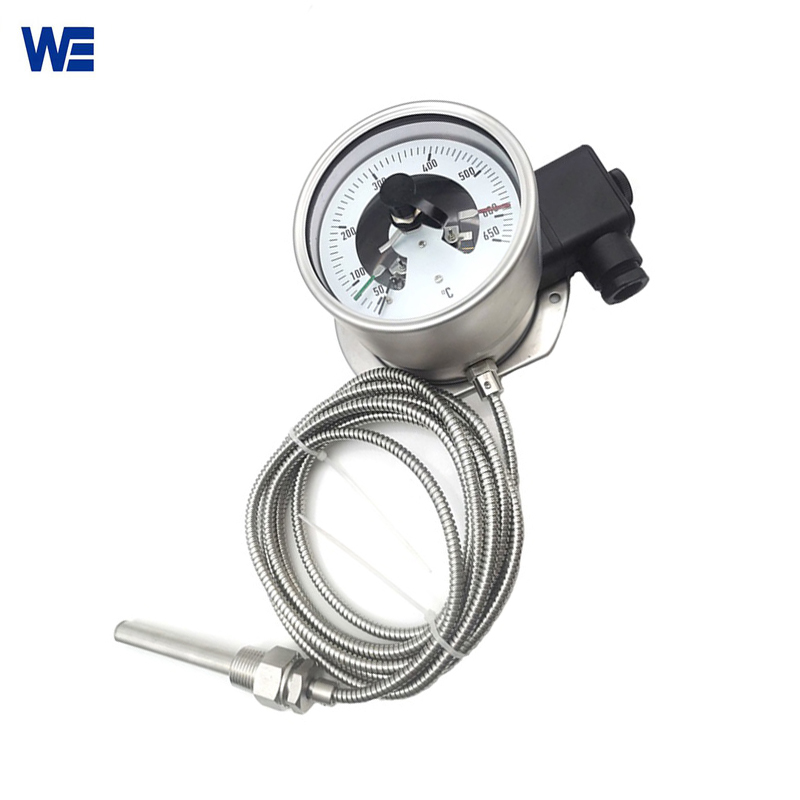

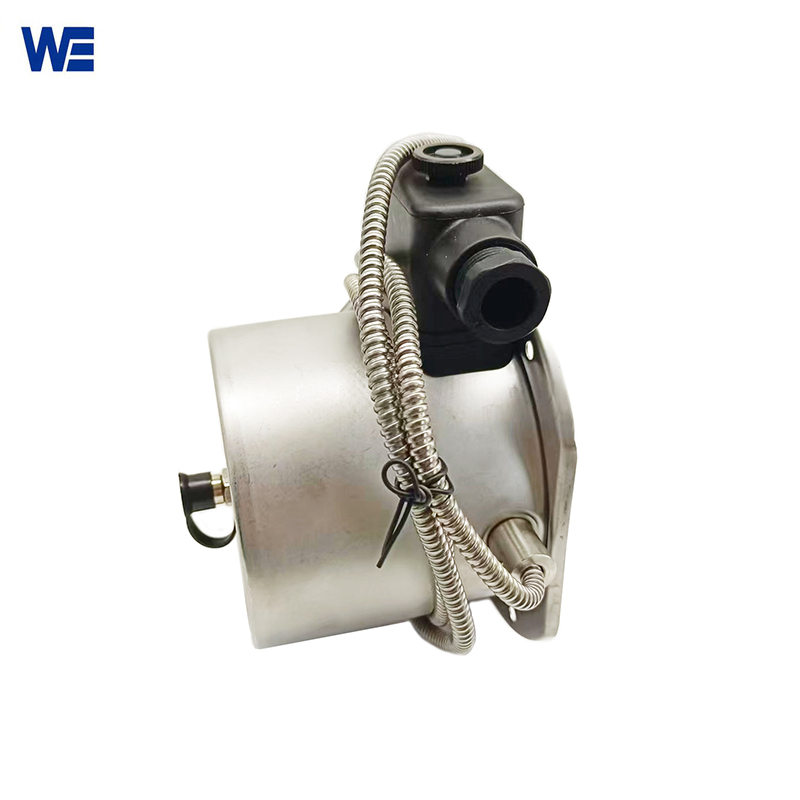

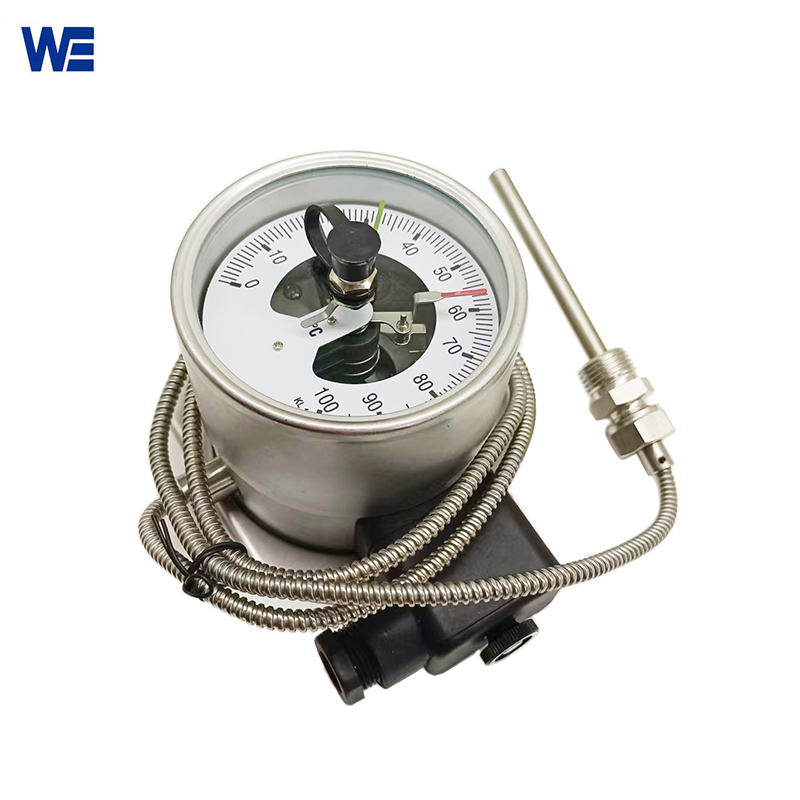

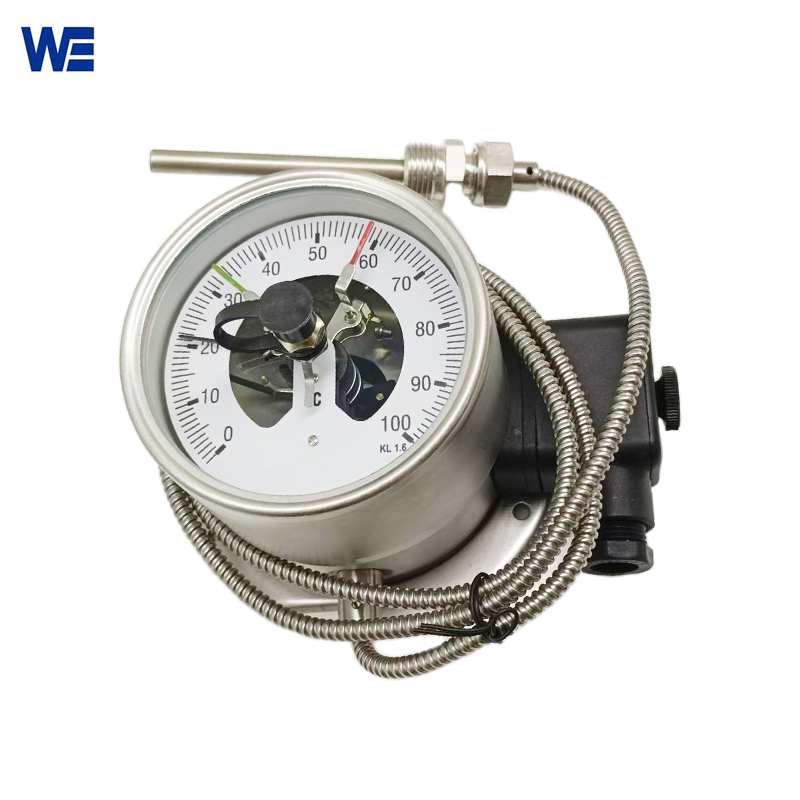

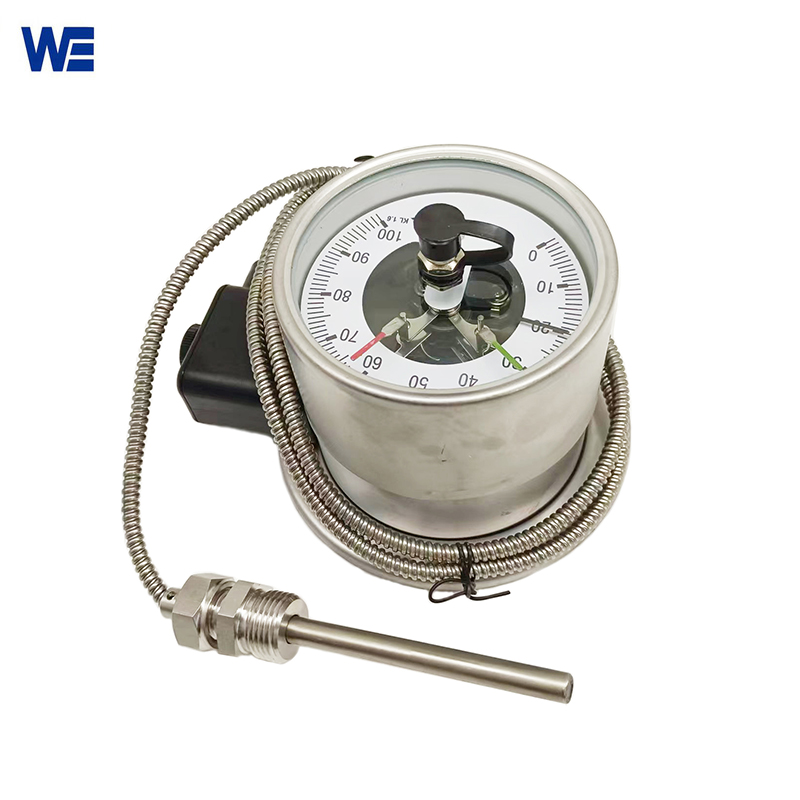

Electric Contact Thermometer
Electric contact thermometers produced by Wepower Electronic have automatic power cut-off and alarm functions. The housing and stem are made of stainless steel, with high reliability, long service life and wide application. The connection direction, process connection method and insertion length can be customized.
Feature And Advantages Of Electric Contact Thermometer Produced By Wepower Electronic:
Electric Contact Thermometers are used in production sites where automatic temperature control and alarm are required. Electric contact thermometer can directly measure the temperature of liquid, steam and gas media in various production processes.
Wepower Electronic’s Electric Contact Thermometers have automatic power cut-off and alarm functions. The housing and stem are made of stainless steel, with high reliability, long service life and wide application. The connection direction, process connection method and insertion length can be customized.
Installation Methods:
▲Vertical pipe installation
▲Curved pipe installation
▲Flange installation
▲Thread installation
▲If the temperature measurement point is not easy to access and needs to be installed over a long distance, we provide models with capillaries.
Parameters:
| Product Name | Electric Contact Thermometer |
| Temperature Range | -30…+60,0….100,0…120,0…160,0…200,0…300,
0…350,0…400,0..500,0…600 |
| Material | stainless steel 304/316 |
| Accuracy | 1.5% of range |
| Diameter of Dial Indicator | φ100mm;150mm;75mm;63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process connecting Method | Without fixed
Movable thread outer Movable thread inner Fixed thread Fixed flange Adjustable thread Adjustable flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4,M33×2 |
| Direction | Axial/Radial |
| Contact Type(for electric contact type): | NO,NC,NONO,NCNC,NONC,NCNO,SPDT |
