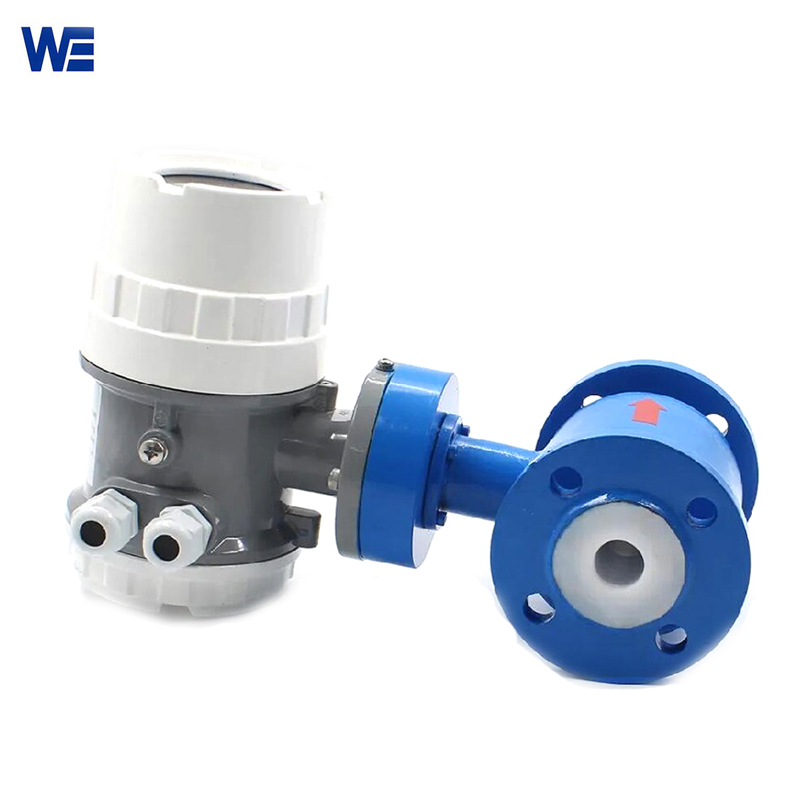

Electromagnetic Flow Transmitter

Electromagnetic Flow Transmitter

The measurement principle of Electromlagnetic Flow Transmitter is based on Faraday’s law of electromagnetic induction.

The two electromagnetic coils at the upper and lower ends generate a constant or alternating magnetic field. When the conductive medium flows through the electromagnetic flow meter, the electrodes on the wall of the flow meter can detect the induced electromotive force. This induced electromotive force is related to the flow rate of the conductive medium, the magnetic induction intensity of the magnetic field, and the conductor. The width (inner diameter of the flow meter measurement tube) is proportional to the flow meter. The process parameters of the medium flow induced electromotive force can be obtained through intelligent meter calculation.

FEATURES

• Measurement of electromagnetic flow transmitter  is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity
• There are no flow-impeding parts in the measuring pipe, there is no pressure loss, and the straight pipe section requirements are low. Unique adaptability to serological measurement
• Reasonable selection of sensor lining and electrode materials means they have good corrosion resistance and wear resistance
• The converter adopts a novel excitation method, which has low power consumption, stable zero point and high accuracy. The flow range can reach 150:1
• The converter can be integrated with the sensor or separate
• Since the induced voltage signal is formed in the entire space filled with magnetic fields and is an average value on the pipe surface, the straight pipe section required for the sensor is shorter, with a length of 5 times the pipe diameter
• Explosion-proof instruments can be used in corresponding explosion-proof places
