Pipe Flow Meter

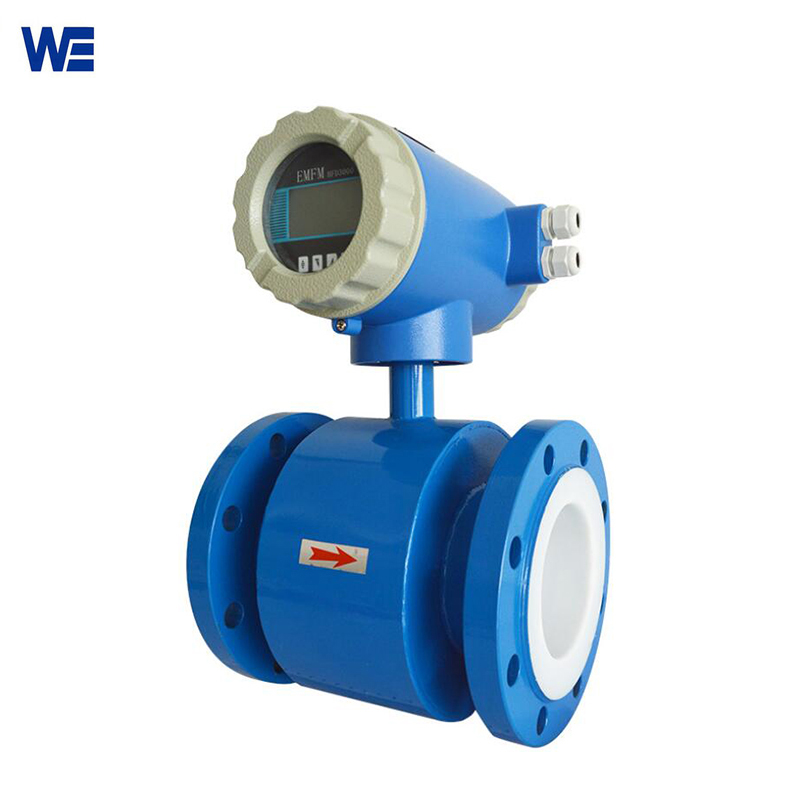

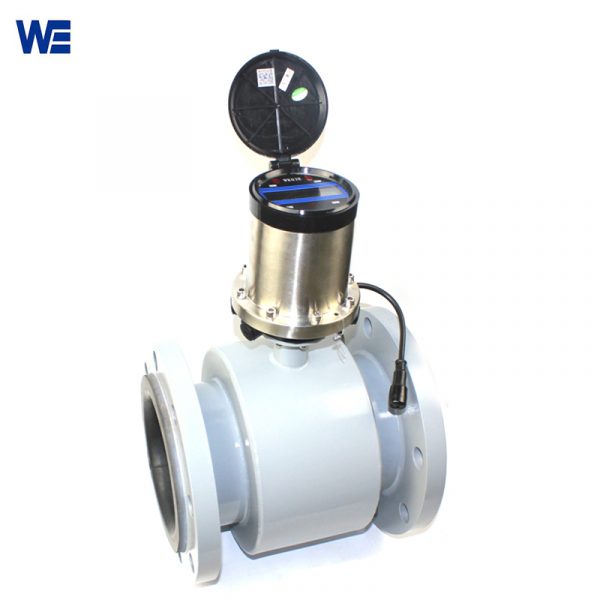

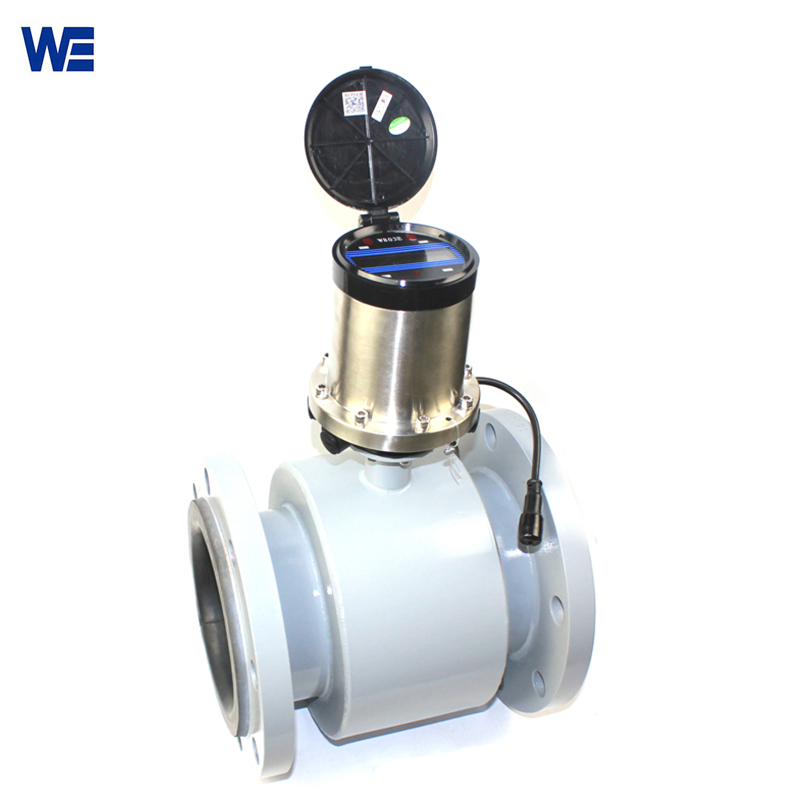

Wepower brand WELD series pipe flow meter is an electromagnetic pipe flow meter, which adopts the principle of electromagnetic induction. Pipe flow meter can realize plane measurement, multi-angle inclination measurement, and vertical measurement for such industrial fields:‌ petroleum, Chemical Industry, metallurgy, building materials, food, light , environmental protection, aerospace, tap Water, municipal administration, Sewage Dep.
Pipe flow meter is an electromagnetic pipe flow meter that operates on the electromagnetic induction principle.
Here are a few popular application places:
| Application | Water supply for water park |
| Fire truck sprinkling process | |
| Beverage factory production process | |
| Milk production process | |
| City groundwater testing | |
| Water supply pipeline testing |
What is the body material of the pipe flow meter should I choose?
- The pipe flow meter has a variety of materials to choose from.
- For general industrial pipes, a pipe flow meter made of carbon steel can be used.

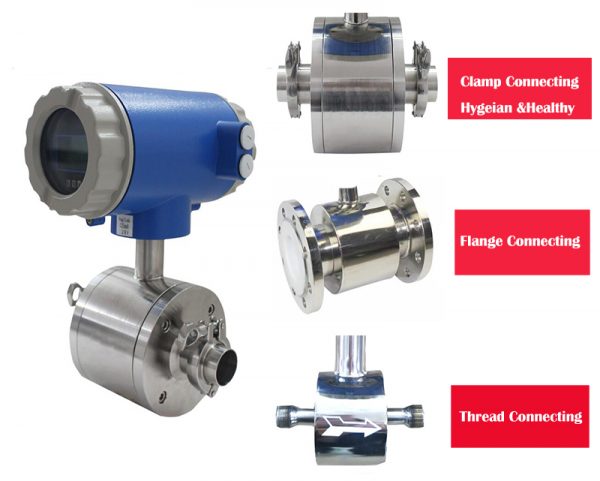

- For sanitary pipes, such as production pipes for beverages or beer, we recommend stainless steel 304.
What should users pay attention to when installing pipe flow meter?
- If the user purchases a flange-mounted pipe flow meter, it is necessary to ensure that the flanges are well connected.
- Although our pipe flow meter supports multi-angle installation, for safety reasons, please do not install it upside down in a crowded area.
- When installing, it is necessary to pay attention to whether the measured liquid reacts with the lining in the pipe flow meter; therefore, we recommend users to use the suitable lining material for matching different medium fluids.
                                        Â
| Connection | Pipe type: flange / special specifications |
| Insertion type: simple/ ball valve type | |
| Diameter | Pipe type: DN4-DN2000 |
| Insertion type: DN200-DN3000 | |
| Range | Standard range |
| Extended range | |
| Special range | |
| Accuracy | Pipe type: ±0.5%R/±1.0%R |
| Plug-in type: ±2.5%R | |
| Communication protocol | No communication output |
| MODBUS protocol | |
| Output method | Frequency output |
| Equivalent pulse | |
| Digital pulse | |
| Four-wire 4-20mA | |
| Power supply mode | DC24V |
| AC220V | |
| Lithium battery | |
| Housing | 304 stainless steel |
| Carbon steel | |
| Explosion-proof | Non-explosion-proof |
| Exd [ia] iaqIICT5 | |
| Lining | Neoprene |
| Polyurethane rubber | |
| Polytetrafluoroethylene | |
| Teflon | |
| PFA | |
| Electrode | AISI316L |
| Hastelloy-B | |
| Hastelloy-C | |
| Titanium | |
| Tantalum | |
| Platinum | |
| Tungsten Carbide | |
| Accessory Options | One-piece |
| External keypad integrated | |

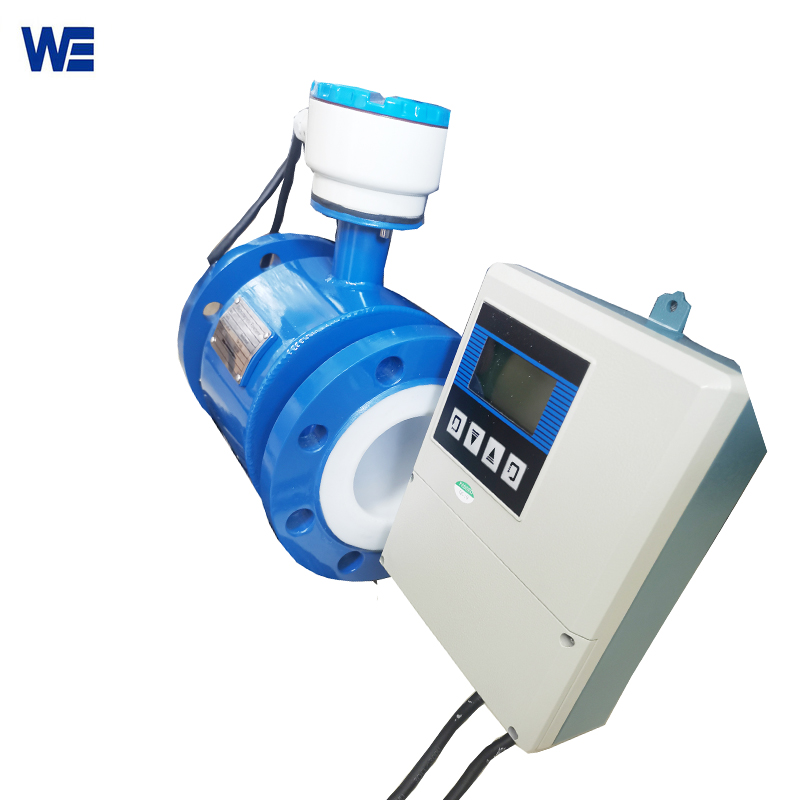

| Split type | |
| Submersible split type |
Flow Range Table of Pipe Type Electromagnetic Flow Meter:
| Nominal Diameter | Range | Nominal Diameter | Range | Nominal Diameter | Range |
| (mm) | (m 3 /h) | (mm) | (m 3 /h) | (mm) | (m 3 /h) |
| DN10 | 0.14 ～ 1.40 | DN125 | 22.08～ 441.56 | DN700 | 692.37 ～13847.40 |
| DN15 | 0.32 ～ 6.36 | DN150 | 31.79～ 635.85 | DN800 | 904.32～ 18086.40 |
| DN20 | 0.57～ 11.30 | DN200 | 56.52 ～ 1130.4 | DN900 | 1144.5～ 22890.60 |
| DN25 | 0.88～ 17.66 | DN250 | 88.31 ～ 1766.25 | DN1000 | 1413.0～ 28260.00 |
| DN32 | 1.45～ 28.94 | DN300 | 127.17～ 2543.40 | DN1200 | 2034.7～ 40694.40 |
| DN40 | 2.26～ 45.22 | DN350 | 173.09～ 3461.85 | DN1400 | 2769.4～ 55389.60 |
| DN50 | 3.35～ 70.65 | DN400 | 226.08～ 4521.60 | DN1600 | 3617.2～ 72345.60 |
| DN65 | 5.97～ 119.40 | DN450 | 286.31～ 5722.65 | DN1800 | 4578.1～ 91562.40 |
| DN80 | 9.04～ 180.86 | DN500 | 353.25～ 7065.00 | ||
| DN100 | 14.13 ～ 282.60 | DN600 | 508.68～ 10173.6 |
