Multipoint Thermocouple
Multipoint thermocouples are typically made up of multiple temperature measuring points, each connected to a common sensor lead to provide tank temperature distribution and average temperature.

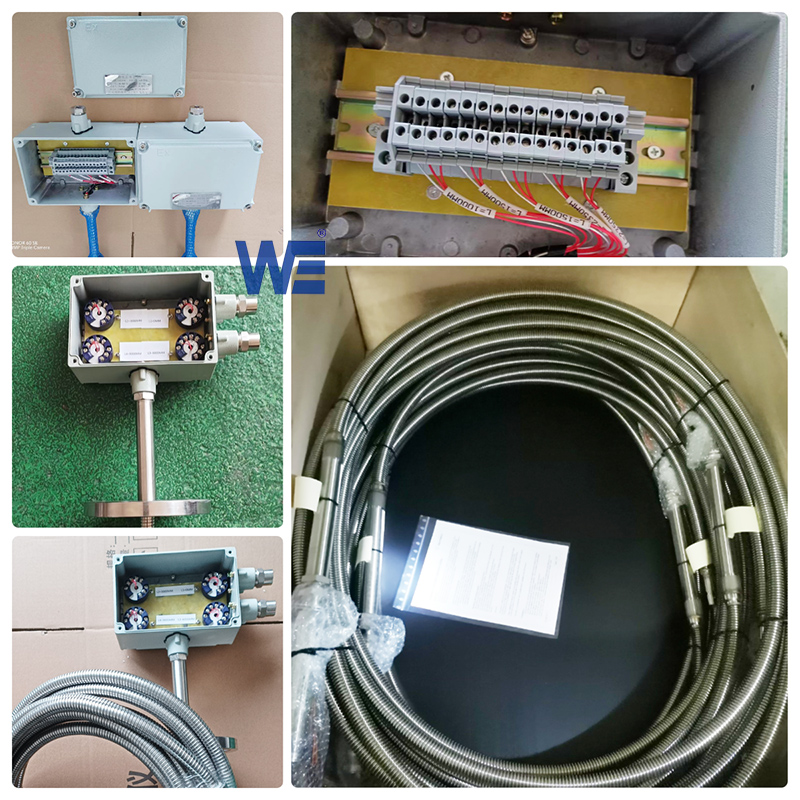

Construction Of Multipoint Thermocouple:
Multipoint Thermocouples are typically made up of multiple temperature measuring points, each connected to a common sensor lead to provide tank temperature distribution and average temperature. All point elements are attached to a probe that runs from the top of the sensor to the bottom.
Features:
- Customized according to customer’s specifications
- Temperature range -200… + 1200 ° C
- Interchangeable measuring inserts provide flexibility and make installation easier.
- Anchored support
Parameters:
| Product Name | Multipoint Thermocouple |
| Ref No. | PT100, Type K/J/T/N thermocouple |
| Explosion-proof grade | DIIBT4/ DIICT6 |
| Accuracy Class | 0.5%F.S、0.2%F.S |
| Process connecting /material | DN50 GB/ANISI/JIS flange ;stainless steel 304; Thread |
| Diameter Sheath | Ø3, Ø4, Ø5, Ø6, Ø8,as request |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel/ |
| Measuring range | -200~1600 degrees Celsius |
| Junction Box | Ex type aluminum housing ,water-proof |
| Electrical connecting | M20*1.5, NPT1/2″, G1/2″ |
| Heavy punch | stainless steel , with fix hole , 35*150mm |
| Flexible Protecting tube | SS301/SS316/PTFE |
| Signal Output | 4-20mA |
Diagram:
