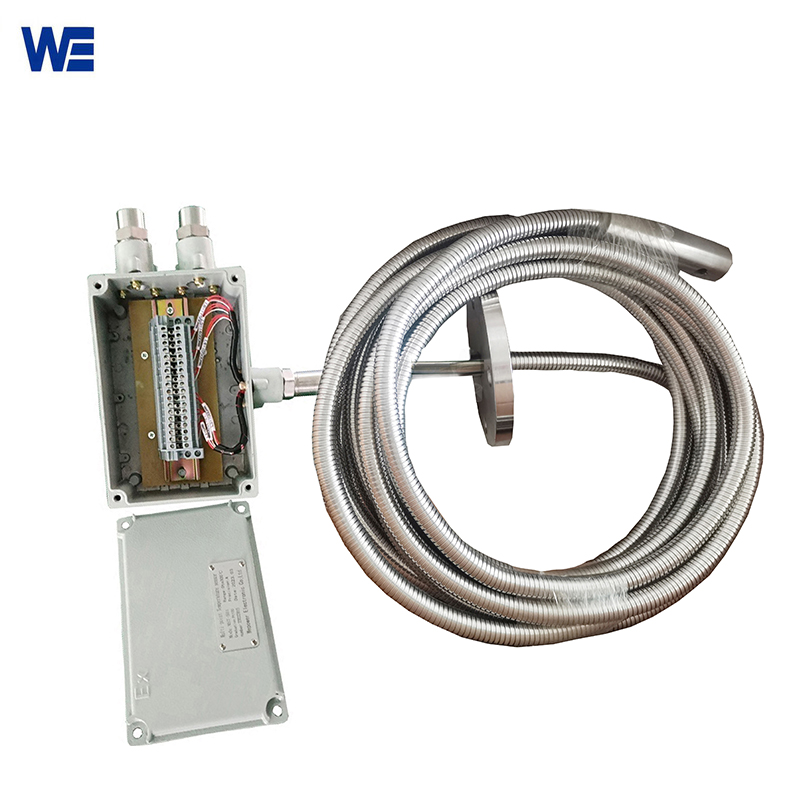

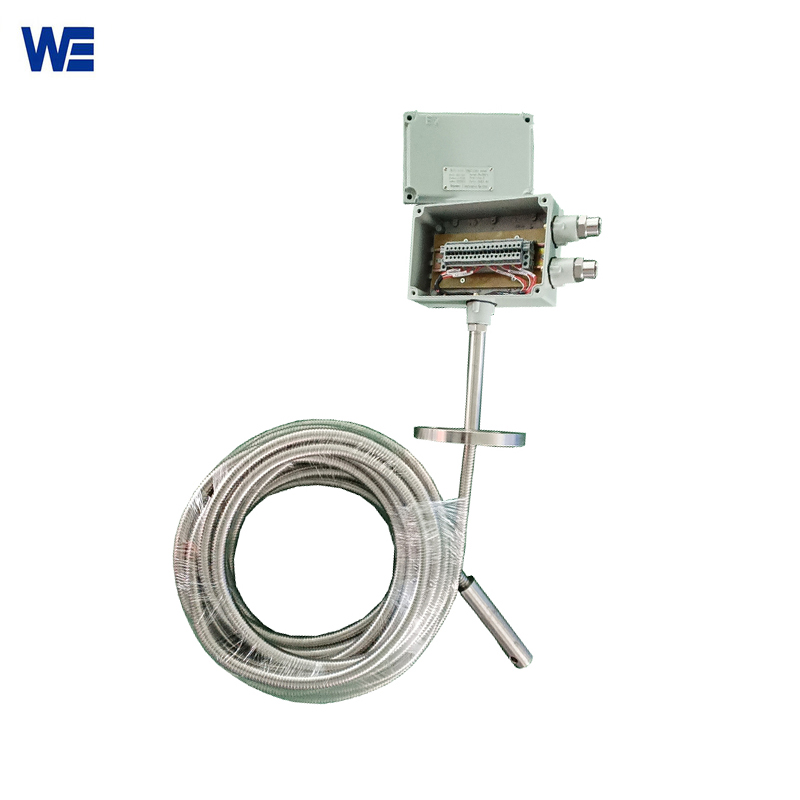

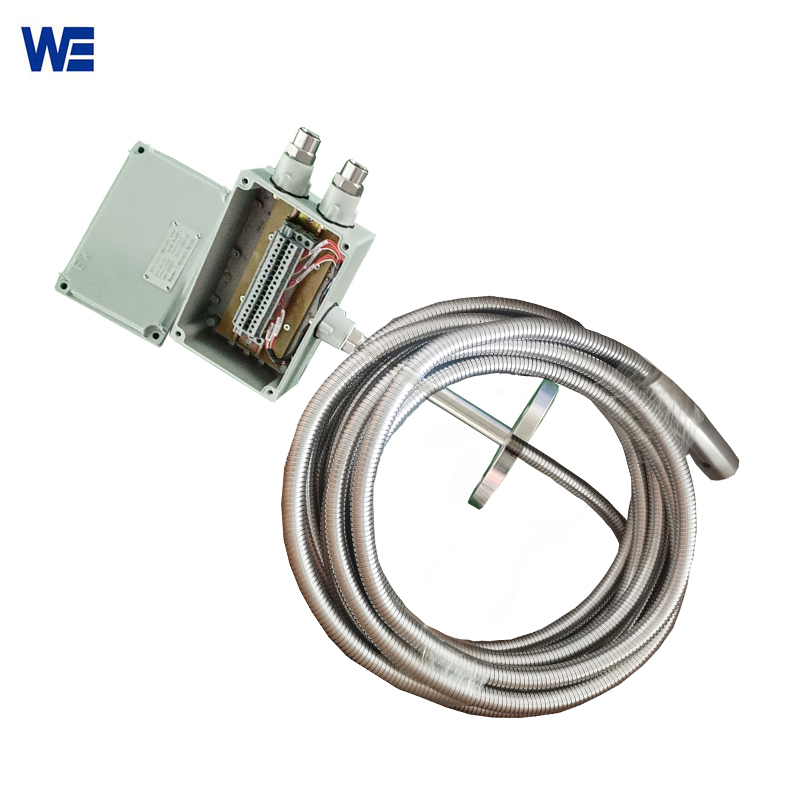

Multi Point Temperature Transmitter
Multi Point Temperature Transmitter produced by Wepower Electronic is a unique product with excellent reliability, practicality and safety. It uses multiple measurement points to measure the temperature at different locations or heights throughout the tank.
Features Of Multi Point Temperature Transmitter:
Multi Point Temperature Transmitter produced by Wepower Electronic is a unique product with excellent reliability, practicality and safety. It uses multiple measurement points to measure the temperature at different locations or heights throughout the tank. Each temperature measurement point is connected to a common sensor lead and can be anchored at the bottom.
Application Areas:
▲Energy Generation
▲Chemical Industry
▲Petroleum
▲Metallurgy
▲Power Industry
▲Food Processing
▲Scientific Research and Experiment
Case Example:
The Following Picture Is The On-site Installation Picture Of One Of Our Vietnamese Customers.
Parameters:
| Product Name | Multi Point Temperature Transmitter |
| Ref No. | PT100, Type K/J/T/N thermocouple |
| Explosion-proof grade | DIIBT4/ DIICT6 |
| Accuracy Class | 0.5%F.S、0.2%F.S |
| Process connecting /material | DN50 GB/ANISI/JIS flange ;stainless steel 304; Thread |
| Diameter Sheath | Ø3, Ø4, Ø5, Ø6, Ø8, as request |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel/ |
| Measuring range | -200~1600 degrees Celsius |

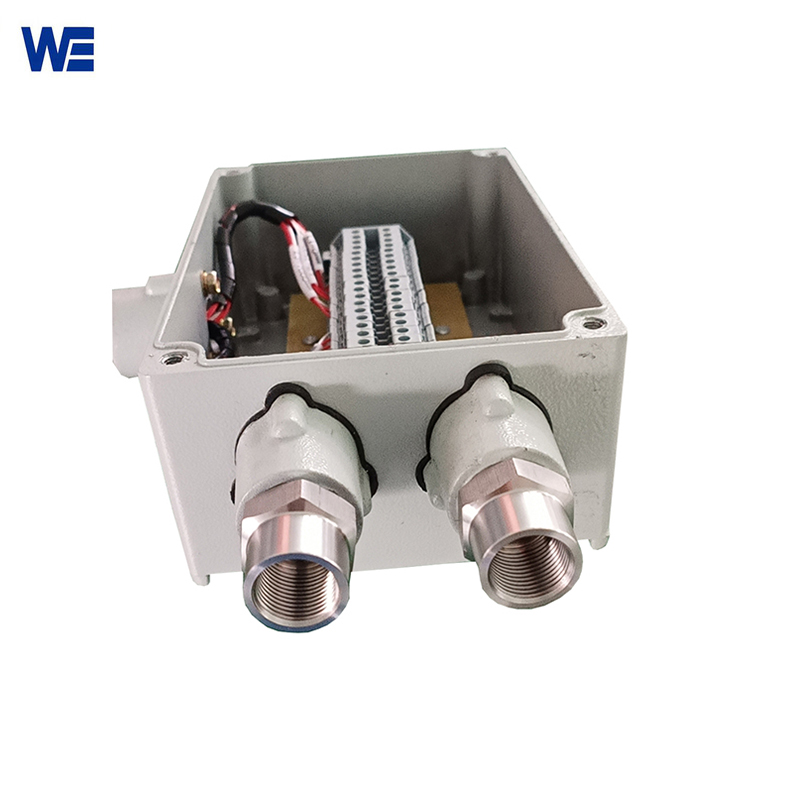

| Junction Box | Ex type aluminum housing ,water-proof |
| Electrical connecting | M20*1.5, NPT1/2″, G1/2″ |
| Heavy punch | stainless steel ,with fix hole, 35*150mm |
| Flexible Protecting tube | SS301/SS316/PTFE |
| Signal Output | 4-20mA |

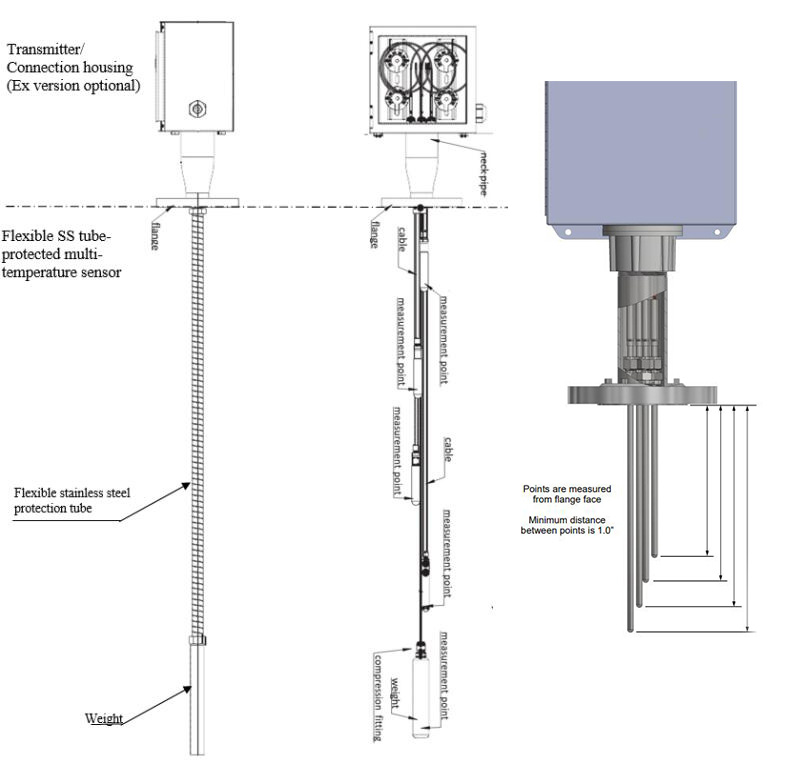

Diagram:
