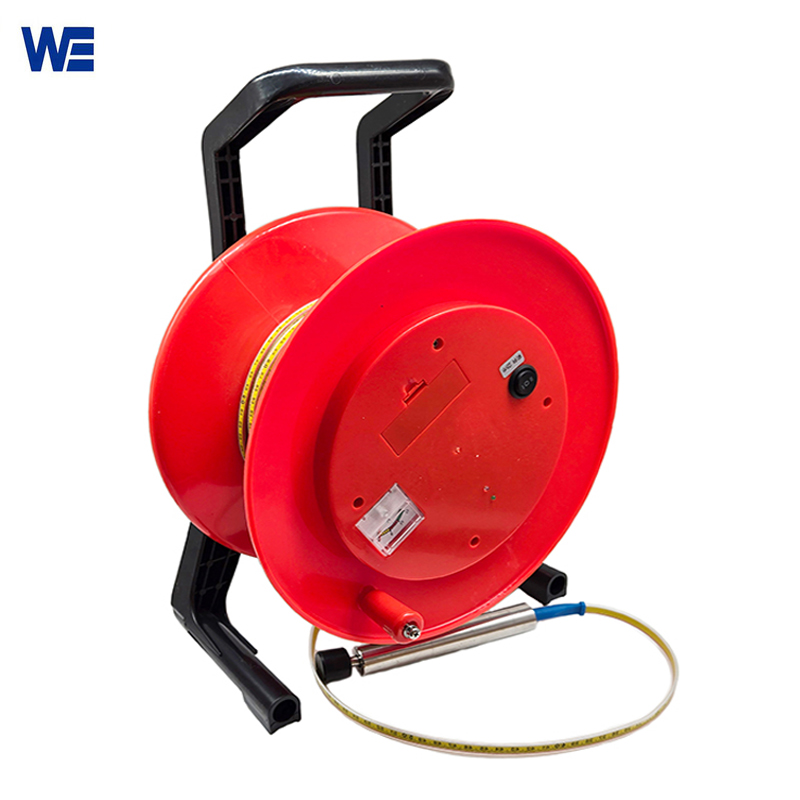

Electronic Water Level And Depth Reader
No matter you require to measure water levels or the depth, this electronic water level and depth reader equipped with a stinless steel probe(25*170mm), can definitely fit your needs. WEpower Electronic provide OEM with customers.
What is the main features of the electronic water level and depth reader?
- Easy operation
When you operate this tape water level meter, just throw the flexible probe into what you need to measure, no more things to do.Then you’ll read exact value on the cable ruler with PE coating.
- Portable
This dual purpose meter’s weight is light that easy to take it away to different sites. What is more , there is wheels trolly equipped for movement when the range up to 400m/500m /600m. At this time, we also desigened extended handel for your convenience!
- Dual functions
Measure water level, press the button on “Ⅰ”，measure depth of wells, press the button on “Ⅱ”. So, when you have this water level and depth measurement, it is equivalent to you own two device for your needs.
- Durability
This electronic water level sensor has a long life, good durability and can resist different kinds of harsh environments, can be used in pure water and brackish water.
| Product Name | Electronic Water Level And Depth Reader |
| Measuring Range(m) | WEDL-10M,WEDL-20M,WEDL-30M,WEDL-50M,WEDL-100M,WEDL-150M,WEDL-200M,
WEDL-250M,WEDL-300M,WEDL-350M,WEDL-400M,WEDL-500M,WEDL-600M |
| Minimum Indication(mm) | 1mm |
| Repeat Indication(mm) | ±2.0 |
| Power Supply(V) | 9V lithium battery |
| Probe Dimension | 25mm*170mm |
| Material | 30-350m range: strong ABS reel disc and frame
≥400m range: strong ABS reel disc+ frame+wheel trolley for easy moving SS304 probe |
| Cable Material*Size | Steel ruler with PE coating; Width:10mm*Thickness 2mm |
| Ambient Temperature | -20~65℃, relative humidity ≤85%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator light, buzzer |
| Product Size | Length 46cm*Width 37cm*Height 28cm(150 meters and below); Length 46cm*Width 37cm*Height 30cm(200m,300m); Length 51cm*Width 48cm*Height 64cm(400m, 500m, 600m) |
| Weight | 5kg(50m)/9kg(300m)/30kg(500m) |
| Reel Disc Color | Orange |
