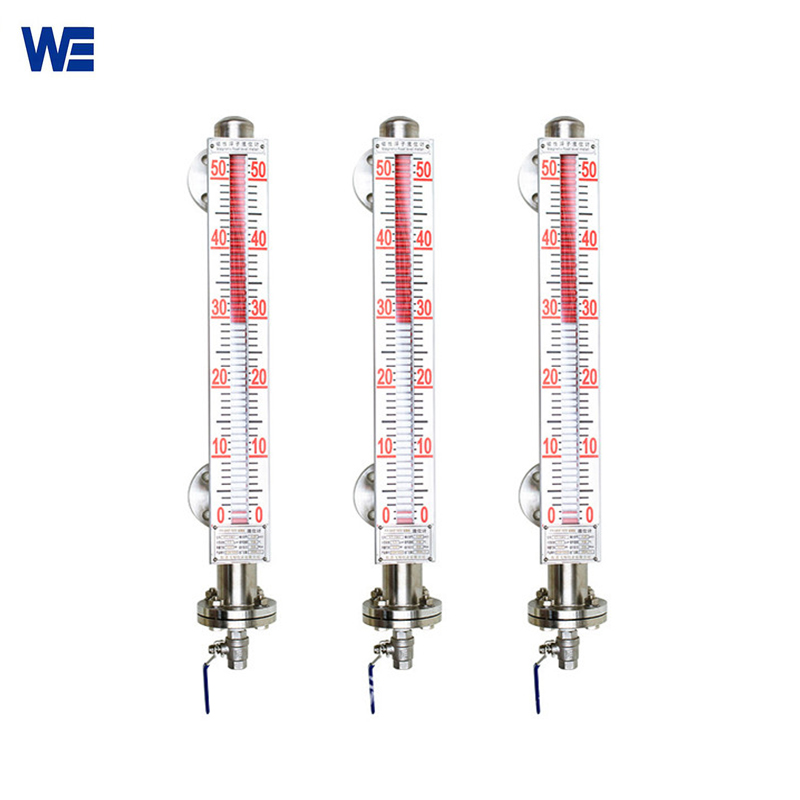

Float Type Level Indicator
The float type level indicator is a practical and durable liquid level measuring instrument. Wepower Electronic has many years of experience in producing float type level indicator, we guarantee that float type level indicator is carefully produced using high-quality materials.

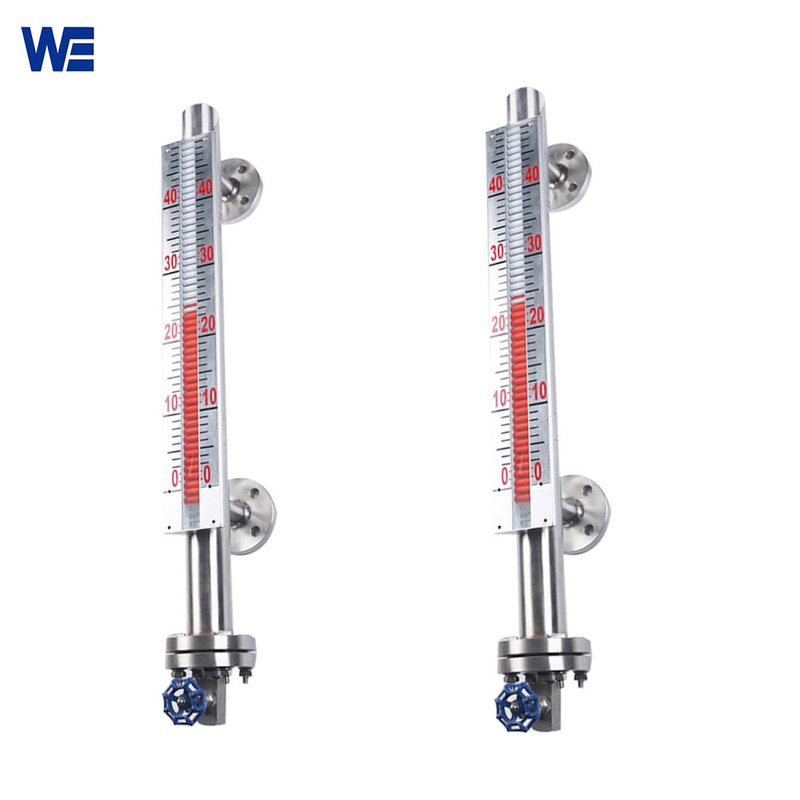

One of the most trustworthy and accurate ways to measure liquid levels in industrial and chemical processes is the Float Type Level Indicator. In addition to being installed in closed tanks under high pressure and temperature, float type level indicators can also be utilized in open tanks. In the oil and gas industry, the float type level indicator adds an additional layer of protection to the measurement, reducing risks like hot oil leaks. Utilizing anti-corrosion and hygienic PTFE or SS316 materials, Wepower Electronic’s float type level indicator can also be used in the food processing industry.
Float Type Level Indicator commonly used occasions:
▲ Feed water heater
▲ Oil and water separator
▲ Flash drums
▲ Surge tanks
▲ Gas chillers
▲ Deaerators
▲ Blowdown flash tanks
▲ Hot well
| Product | Float type level indicator |
| Model number | WP/ZP- UHZ |

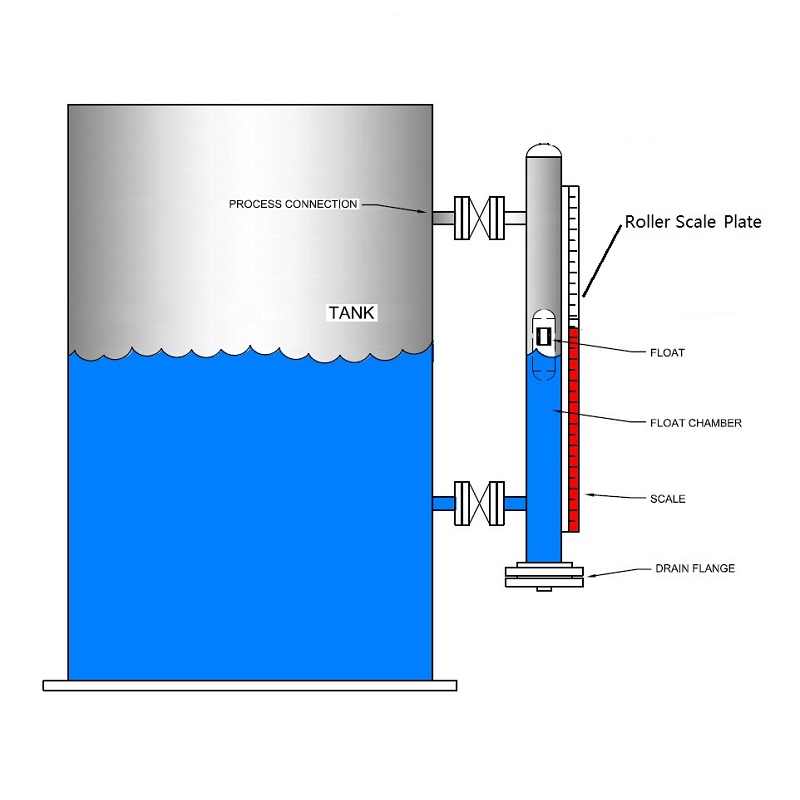

| Working principle | Magnetic coupling effect |
| Measuring media | liquid like water, solutions |
| Measuring range | 300-13000mm |
| Accuracy | 10mm |
| Working pressure | 1.0/1.6/2.5/4.0/6.0/16Mpa |
| Working temperature | -20~450°C |
| Medium Viscosity | ≤0.5Pa.S |
| Medium density | ≥0.45g / cm 3 |
| Relative Humidity | 10% to 90% |
| Environmental Pressure | 86KPa ~ 106KPa |
| Wetted materials | stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc. |
| Process connection | flange connection, DN25 by default. |
| Power supply | DC24V or AC220V |

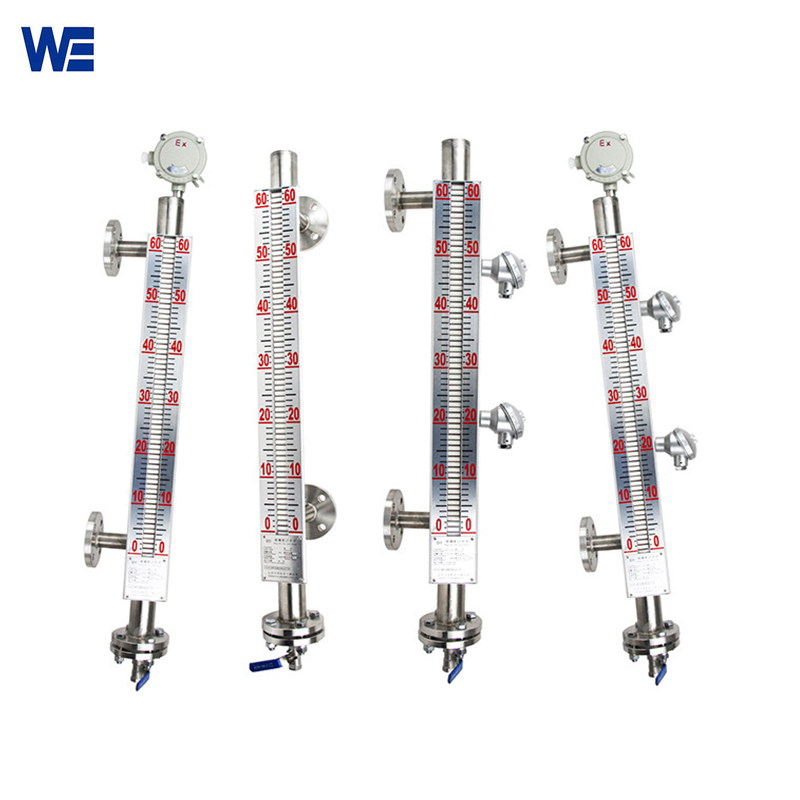

| output | Mechanical type, output type(4-20mA+HART) |
| Display | With or Without LCD |
| Installation type | Side mounted or top mounted |
| Protection level | IP65 |
| UHZ Magnetic Liquid Level Meter | ||||||||
| / | A Side Mounted B Top Mounted |
Installation Type | ||||||
| / | 1 Basic Type 2 Anti-corrosive 3 Jacket Type 4.High Pressure &Pressure |
Type | ||||||
| / | C 0.6MPa D 1.6MPa E 2.5MPa F 4.0Mpa G 6.4Mpa H More than 6.4MPA |
Working Pressure | ||||||
| / |
|
Op tional | ||||||
| L= Measuring Range (For Side Mounted) | / | |||||||
| / | L1=Measuring Range (Top mounted 0～4000mm) | / | ||||||
| / | Medium Density ρ(g/cm3) | / | ||||||
| / | / | |||||||
| A | 1 | D | 1 | L=2500mm | L1=3000mm | ρ=0.8g/cm3 | Example | |
