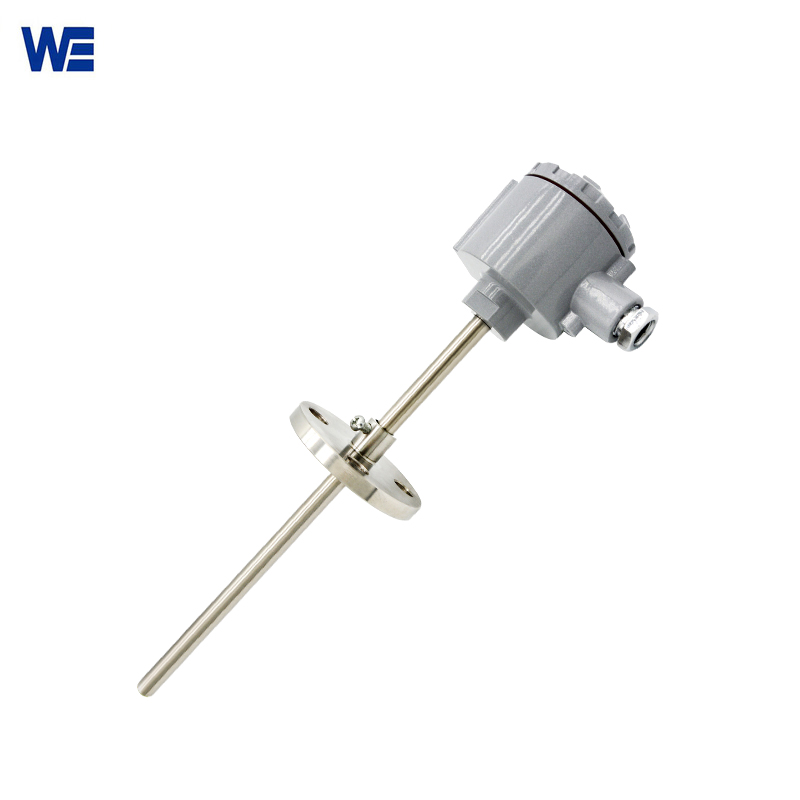

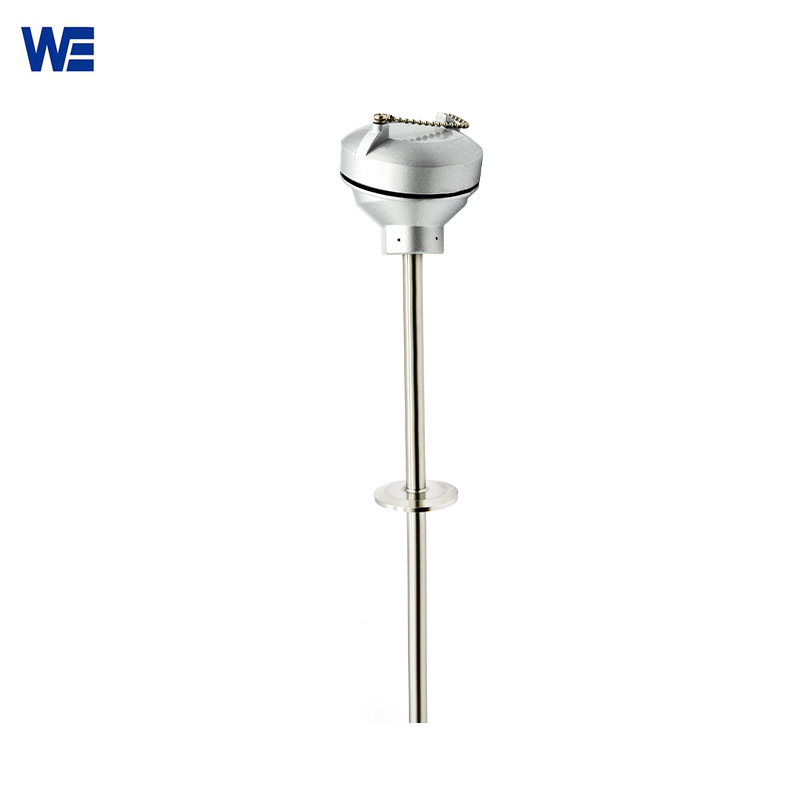

K Type Temperature Sensor
K type temperature sensors have wide application fields such as: food processing machine, plating baths, medical equipment, industrial heating, packing equipment, refrigerator temperature control, even temperature monitoring etc.
K Type Temperature Sensors work in most industrial application sites. Because of the reliability and accuracy, K-type temperature sensors can be used widely at temperature up to 2300°F (1260°C). Wepower Electronic has been producing various temperature sensors for nearly 20 years, designing and manufacturing, providing ODM and OEM customization services.
Features Of K Type Temperature Sensor:
▲Less thermal response time, reducing dynamic error;
▲Flexible installation and use;
▲High mechanical strength and good pressure resistance;
▲Small diameter (1, 1.5, 2, 3, 4, 5, 6, 8mm) and the length is not limited;
▲ Index number: K, E, S, N, T, J;
▲Aluminum Housing head is water-proof, Explosion-proof.
Parameters:
| Category | Code | Graduation Mark | External diameter of tube（mm） | Common temperature (°C) | High operating temperature (°C) | Allowable deviation | |
| Measuring range (°C) | Allowable difference | ||||||
| Platinum rhodium 10-platinum | WRPK | S | ≥Φ3 | 1100 | 1200 | 0-1200 | ±1.5°C or ±1.5%t |
| Nickel-chromium-copper-nickel | WREK | E | ≥Φ3 | 600 | 700 | 0-700 | ±2.5°C or ±0.75%t |
| Nickel-chromium-nickel silicon | WRNK | K | ≥Φ3 | 800 | 950 | 0-900 | ±2.5°C or ±0.75%t |
| Copper-copper nickel | WRCK | T | ≥Φ3 | 350 | 400 | Less than -200 | Unspecified |
| -40-350 | ±0.75%t | ||||||
| Iron-copper nickel | WRFK | J | ≥Φ3 | 500 | 600 | 0-600 | ±2.5°C or ±0.75%t |
Installation Guidance:
