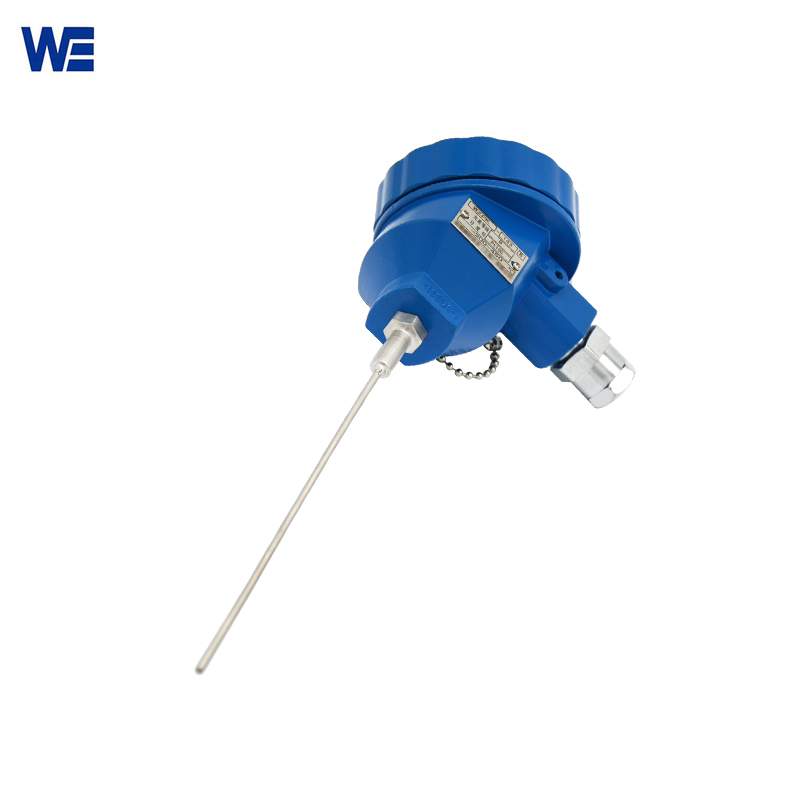

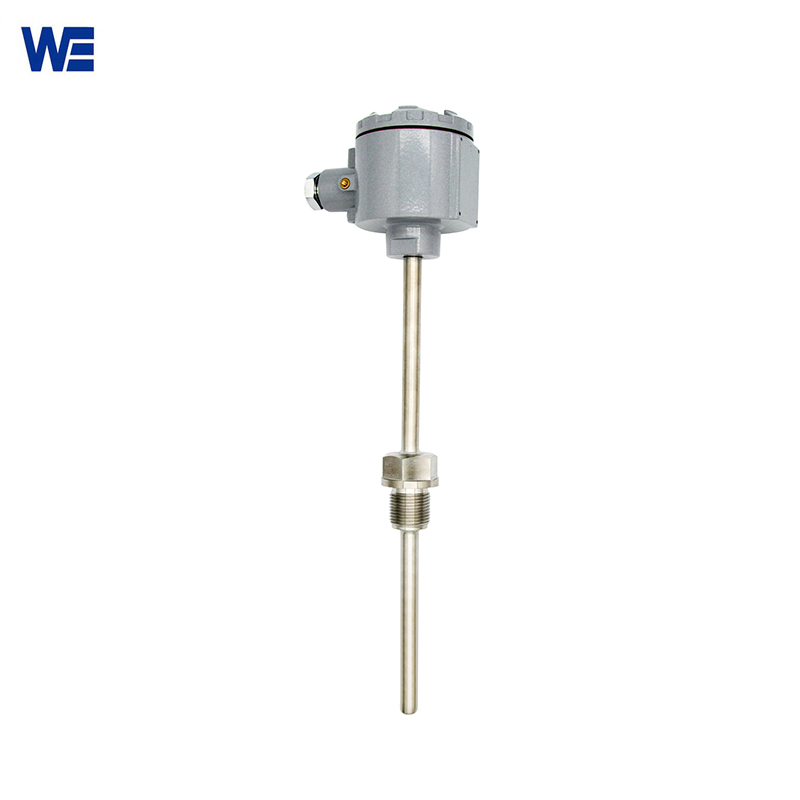

Thermocouple Temperature Sensor

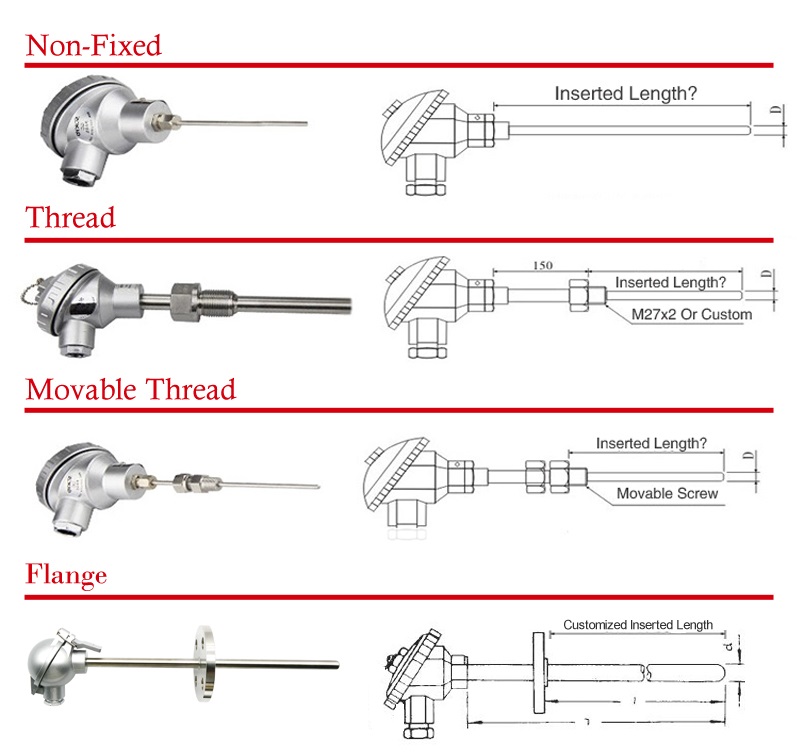

The thermocouple temperature sensors produced by our company can provide various customized services: customized housing material, housing color, different process connections, and various sizes you need. Choose Wepower Electronic, choose professionalism!
Different Types Of Thermocouples Are Suitable For Different Temperatures:
Thermocouple Temperature Sensor are usually used in conjunction with display instruments, recording instruments, and electronic computers. Directly measure the temperature of liquid, steam, gas and other media and solid surfaces in the range of 0-1700°C in various production processes.

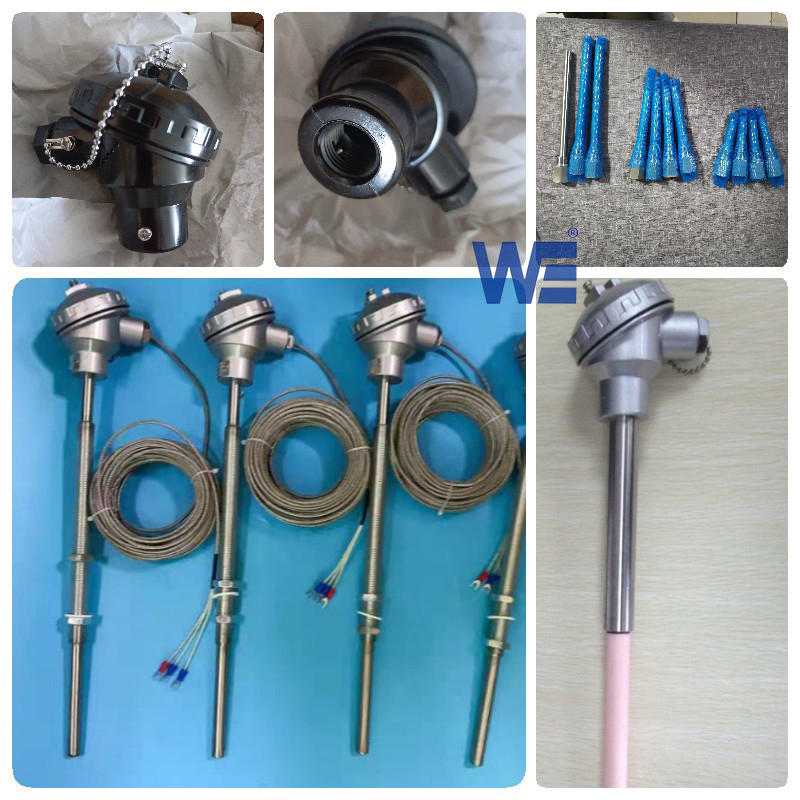

Different types of THermocouple Temperature Sensors are suitable for different temperatures. It is worth mentioning that our company produces Type S Thermocouples, which are made of corundum and are suitable for a variety of high-temperature field conditions. They have stable quality, excellent workmanship, and long service life. Type S thermocouples are superior to other types of thermocouples in terms of accuracy and stability.

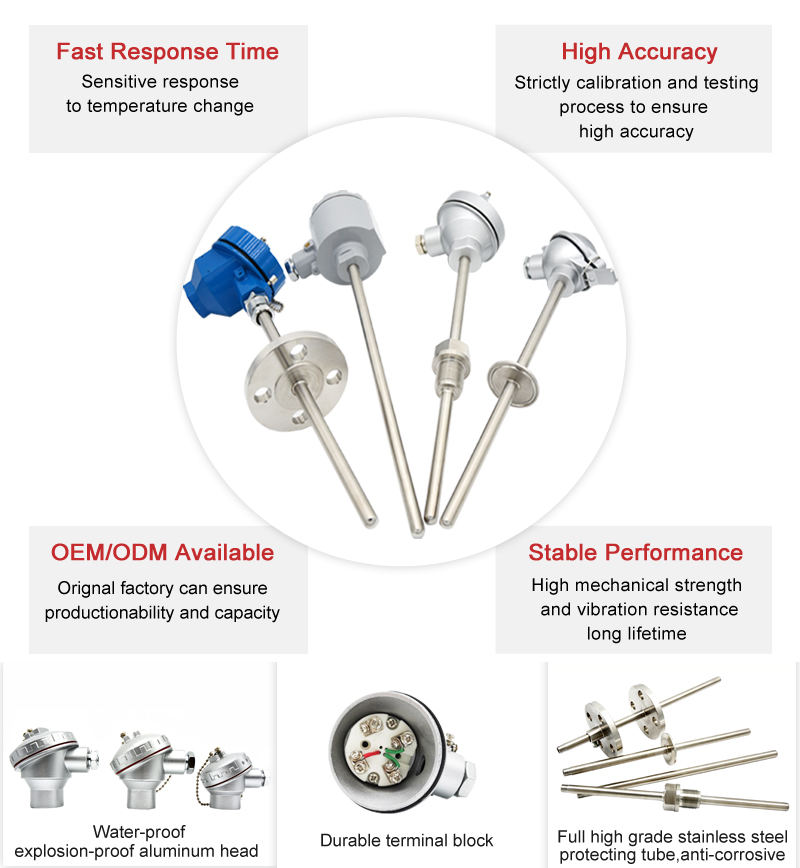

Features:
- Less thermal response time, reducing dynamic error
- Flexible installation and use
- Wide measuring range
- High mechanical strength and good pressure resistance
- Small diameter (1, 1.5, 2, 3, 4, 5, 6, 8mm) and the length is not limited
- Index number: K, E, S, N, T, J
- Aluminum Housing is water-proof ,Explosion-proof;stainless steel 304/316 probe and lead wire
Parameters:
| Category | Code | Graduation Mark | External diameter of tube（mm） | Common temperature (°C) | High operating temperature (°C) | Allowable deviation | |
| Measuring range (°C) | Allowable difference | ||||||
| Platinum rhodium 10-platinum | WRPK | S | ≥Φ3 | 1100 | 1200 | 0-1200 | ±1.5°C or ±1.5%t |
| Nickel-chromium-copper-nickel | WREK | E | ≥Φ3 | 600 | 700 | 0-700 | ±2.5°C or ±0.75%t |
| Nickel-chromium-nickel silicon | WRNK | K | ≥Φ3 | 800 | 950 | 0-900 | ±2.5°C or ±0.75%t |
| Copper-copper nickel | WRCK | T | ≥Φ3 | 350 | 400 | Less than -200 | Unspecified |
| -40-350 | ±0.75%t | ||||||
| Iron-copper nickel | WRFK | J | ≥Φ3 | 500 | 600 | 0-600 | ±2.5°C or ±0.75%t |
