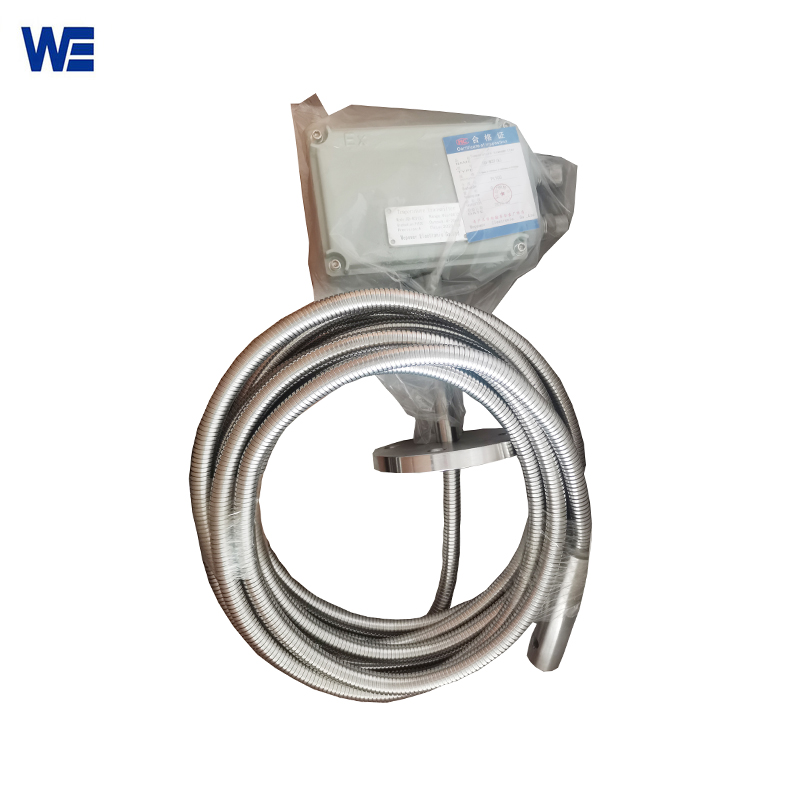

Multi Point RTD
Multi Point RTD is a linear relationship between resistance and temperature to infer changes in temperature by measuring changes in the resistance value.
Working Principle Of Multi Point RTD:
Multi Point RTD is a linear relationship between resistance and temperature to infer changes in temperature by measuring changes in the resistance value. Multi Point RTD is usually composed of multiple temperature measuring points. Each temperature measurement point is connected to a common sensor lead. According to the site conditions, anchor support can be added at the bottom.
Why Choose Multi Point RTD Produced By Wepower Electronic?
▲High accuracy
▲Stable performance
▲Provide customers with OEM/ODM service
▲Professional packaging and multiple transportation methods
Parameters:
| Product Name | Multi Point RTD |
| Ref No. | PT100, Type K/J/T/N thermocouple |
| Explosion-proof grade: | DIIBT4/ DIICT6 |
| Accuracy Class | 0.5%F.S、0.2%F.S |
| Process connecting /material | DN50 GB/ANISI/JIS flange ;stainless steel 304; Thread |
| Diameter Sheath | Ø3, Ø4,Ø5, Ø6, Ø8,as request |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel/ |
| Measuring range | -200~1600 degrees Celsius |
| Junction Box | Ex type aluminum housing ,water-proof |
| Electrical connecting | M20*1.5, NPT1/2″，G1/2″ |
| Heavy punch | stainless steel ,with fix hole , 35*150mm |
| Flexible Protecting tube | SS301/SS316/PTFE |
| Signal Output | 4-20mA |
Diagram:
