Non Contact Liquid Radar Gauge

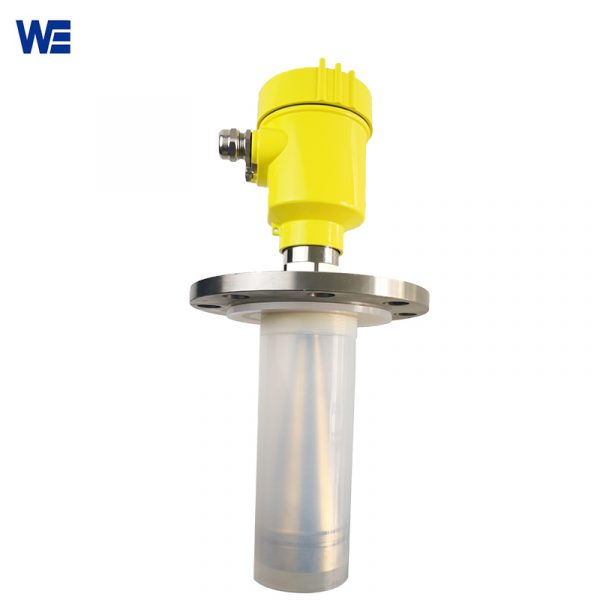

Both RD807 and 801 have PTFE material antenna ( RD807 is stainless steel horn with PTFE shell ), antenna material and structure are the features of non-contact liquid radar level gauge.
Both RD807 and 801 have PTFE material antenna ( RD807 is stainless steel horn with PTFE shell ), antenna material and structure are the features of Non-contact Liquid Radar Level Gauge.
PTFE material antenna is suitable for detecting various corrosive and highly corrosive liquids, steam and volatile liquids, such as acid and alkali solutions, formaldehyde solutions, sodium hydroxide, salt water, alcohol, etc. The Non Contact Liquid Radar Gauge produced by Wepower Electronic is of stable quality and is trustworthy.
| Product Name | 26G Radar type level Indicator |
| Model | WERD801/WERD807 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 5mm |
| Display | LCD, Programmable |
| Material |
Antenna :PTFE |
|  Seal between shell and shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Maximum measuring range | 20m |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | Exiaâ…¡C T6 Ga / Exd â…¡C T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
