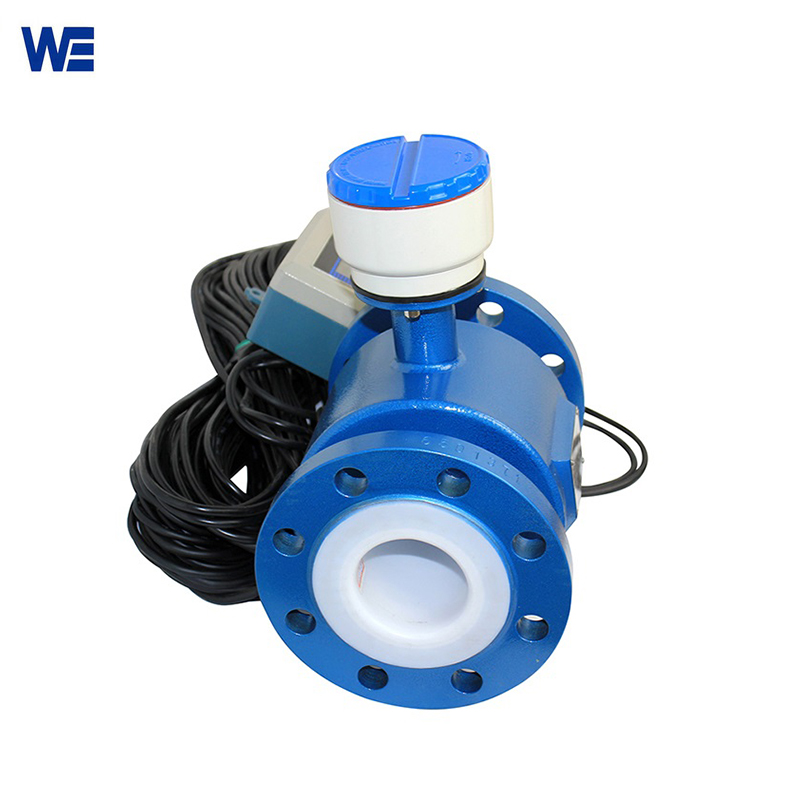

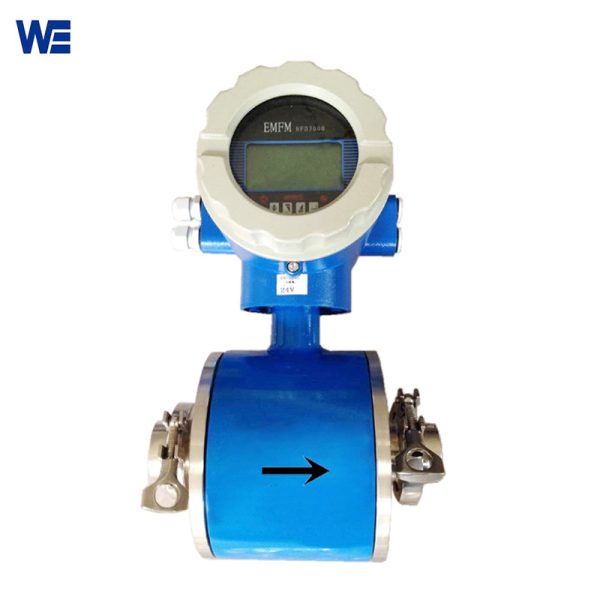

Pipeline Electromagnetic Flowmeter

Information of pipeline electromagnetic flow meter:

i.         Product name:  Pipeline Electromagnetic Flow Meter

ii.        Application: Energy System & Infrastructure Systems etc

iii.       Outer Shell:  Carbon Steel

iv.       Accuracy: ±0.5% reading value

v.        Repeatability:  ±0.1%

vi.      Connection: Flange(GB）

vii.     Liner:  PP,PVDF, Ebonite and PTFE (DN10-DN3000)

viii.    Velocity Range: 0.5-10m/s

ix.      Minimum Electric Conductivity:  50µS/cm (liquid)

x.       Power: AC220V; DC24V

xi.      Installation: Converter Mounted  on Top of the Sensor

xii.     Electrode: AISI 316L, Titanium, Tantalum, Zirconium

Are all products in stock?

• At present, most of the products on our website have semi-finished or finished products in stock. The lead time for purchasing small quantities of products is only 3 to 5 working days.

What is Faraday’s law of induction?

• Under Faraday’s law of induction, moving conductive liquids inside of a magnetic field generates an electromotive force (voltage) in which the pipe inner diameter, magnetic field strength, and average flow velocity are all proportional. In other words, the flow velocity of liquid moving in a magnetic field is converted into electricity. (E is proportional to V × B × D)
