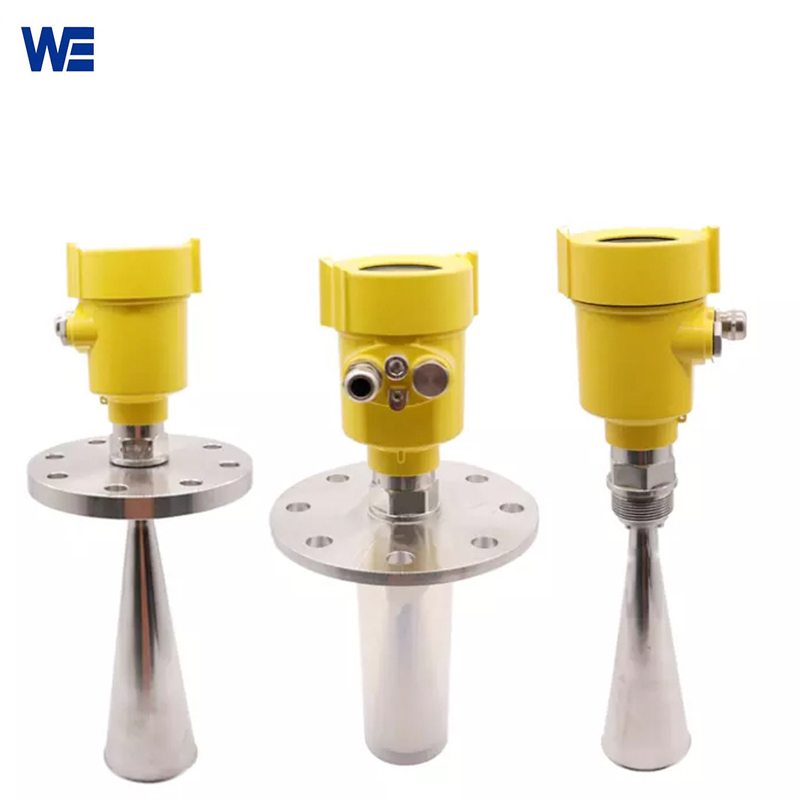

Radar Level Indicator

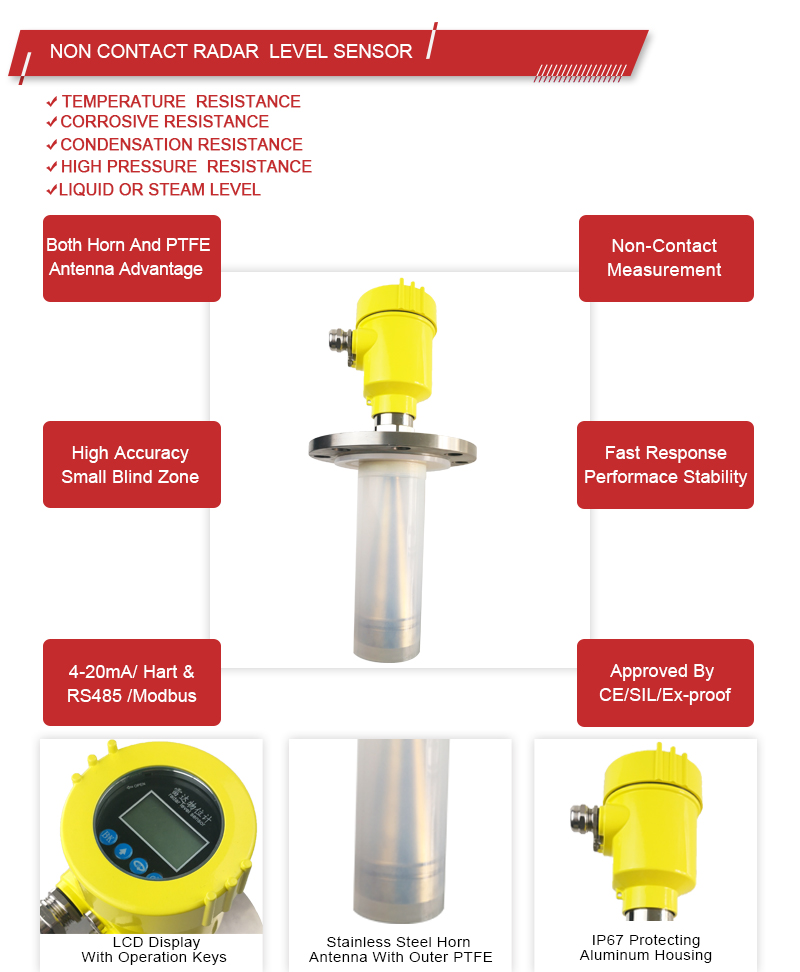

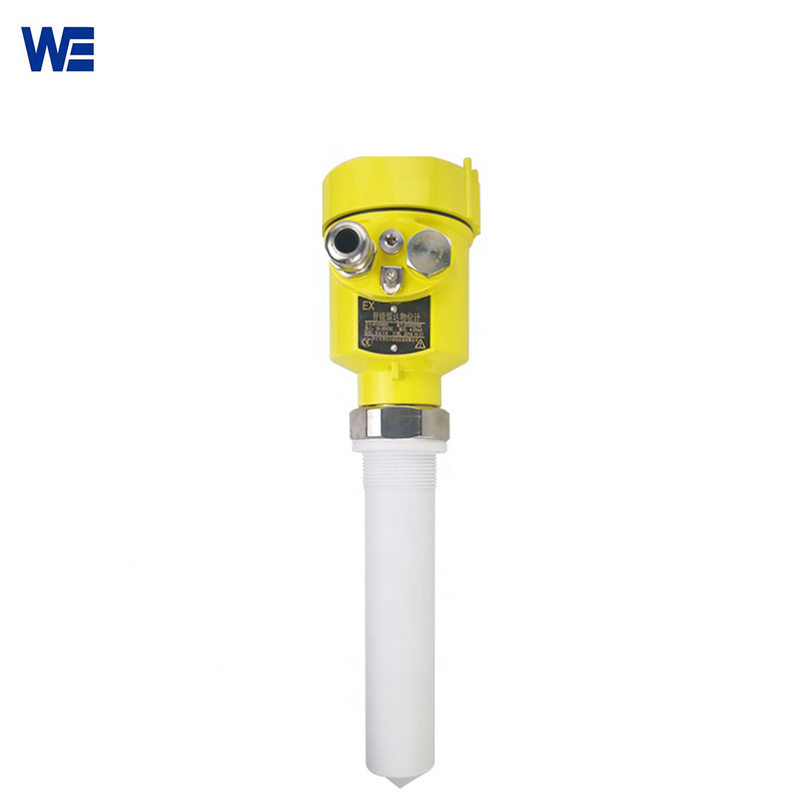

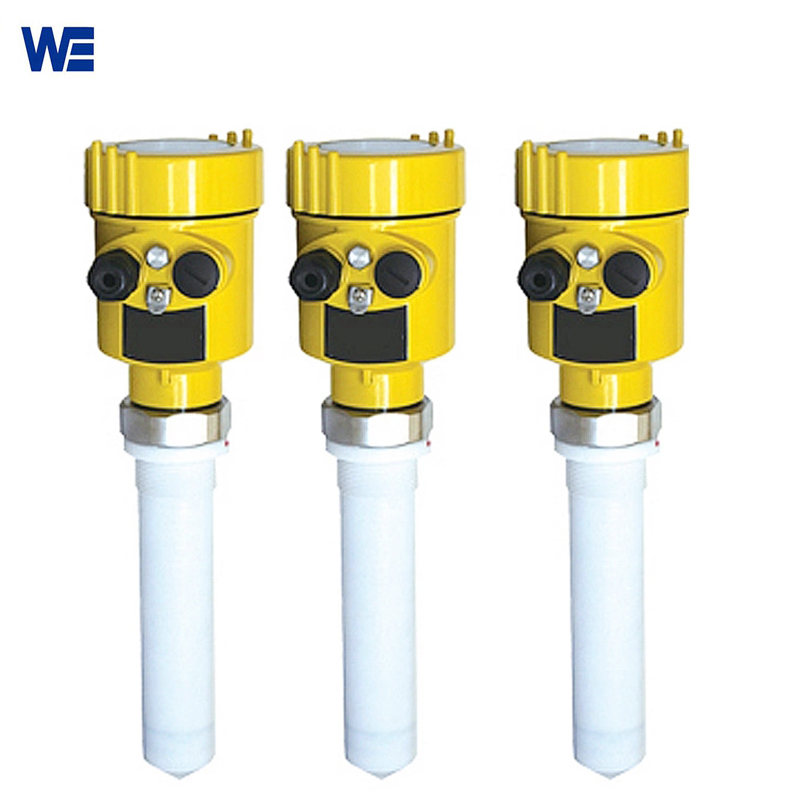

WERD801 radar level indicator has full PTFE antenna is suitable for measuring various strong corrosive liquids，preventing slight condensation,the rod antenna structure is made of tetrafluoroethylene with strong corrosion resistance.Radar level indicator has no movable components, so it is relatively safe and hygienic, especially suitable for the environment with strong corrosiveness.
WERD801 radar level indicator has full PTFE antenna is suitable for measuring various strong corrosive liquids，preventing slight condensation,the rod antenna structure is made of tetrafluoroethylene with strong corrosion resistance.Radar level indicator has no movable components, so it is relatively safe and hygienic, especially suitable for the environment with strong corrosiveness.

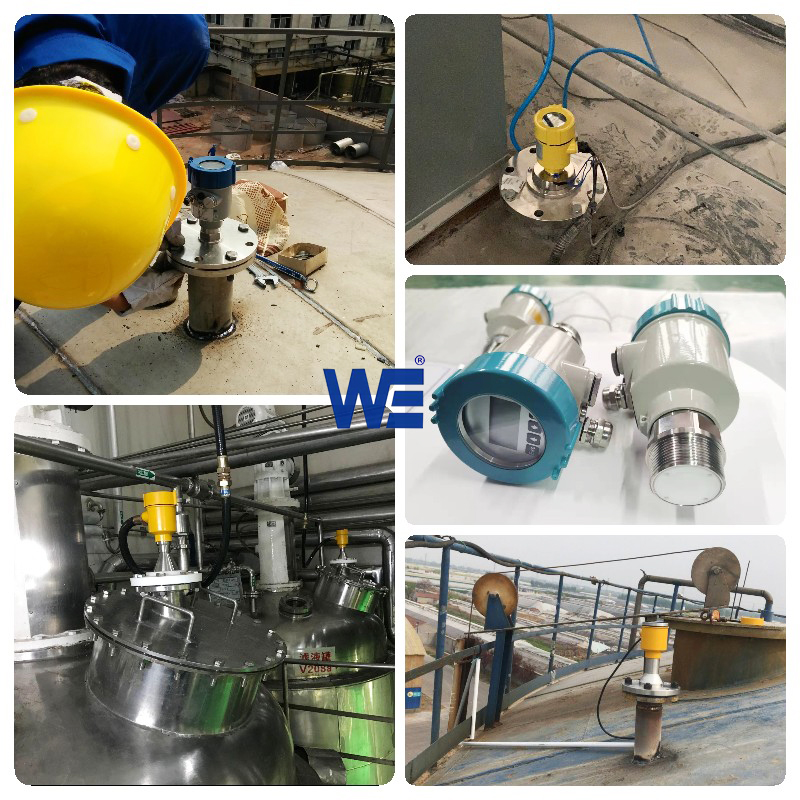

In the selection of the transmitter part, good sealing is required. As long as there is a little leakage of the medium, it may enter the inside from the housing or the wire inlet, which will cause the internal circuit board to be corroded.If the concentrated sulfuric acid and hydrochloric acid exceed a certain temperature range, and steam or vaporization occurs, it is necessary to consider the actual situation on the site and select a suitable level indicator.
| Product Name | 26G Radar type level Indicator |
| Model | WERD801 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 5mm |
| Display | LCD, Programmable |
| Material |
Antenna :PTFE |
| Seal between shell and shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Stainless steel | |

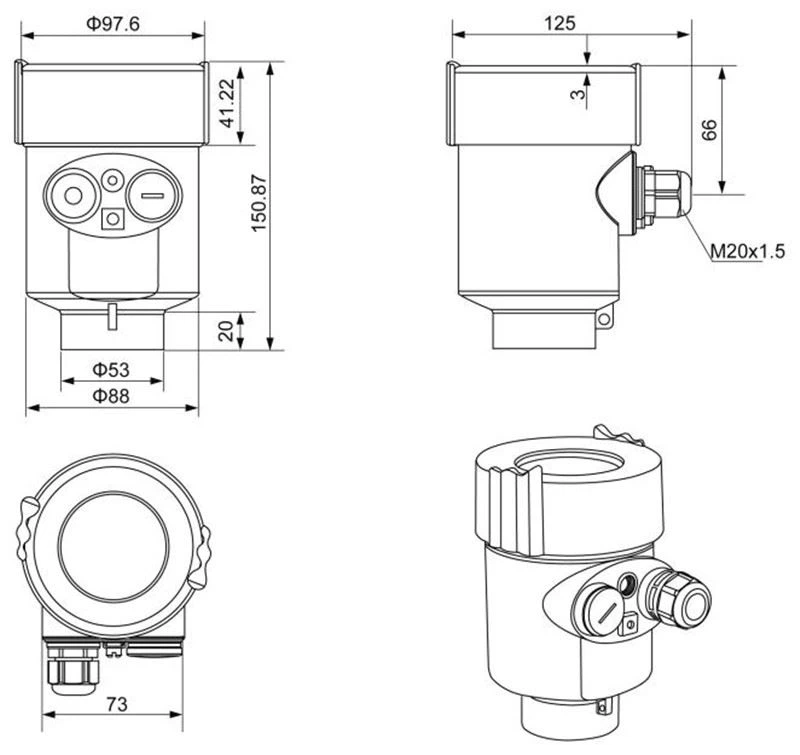

| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance ;1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Maximum measuring range | 20m |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
