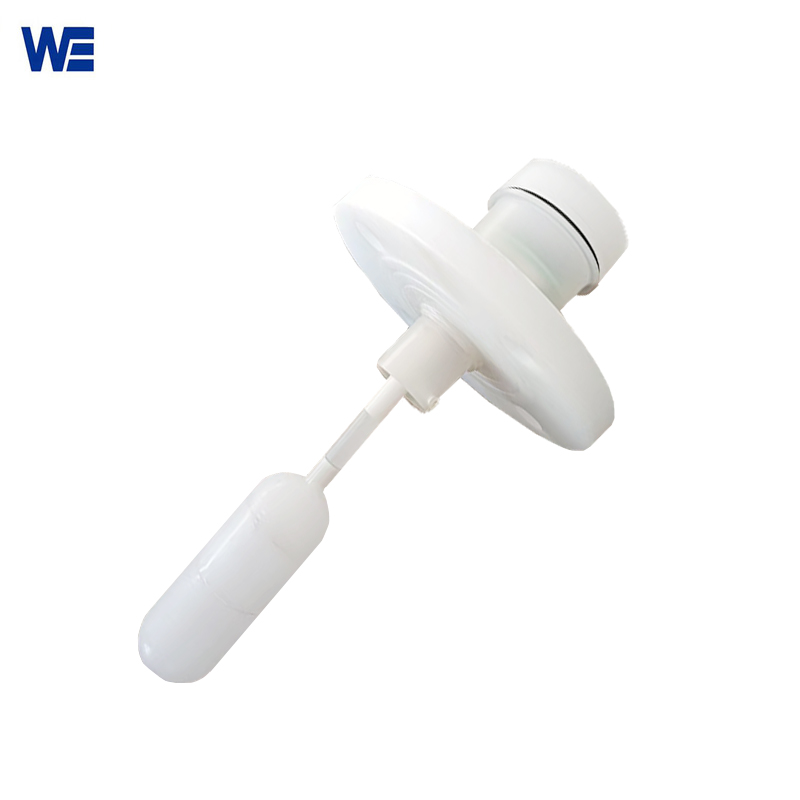

side mounting level switch PP material

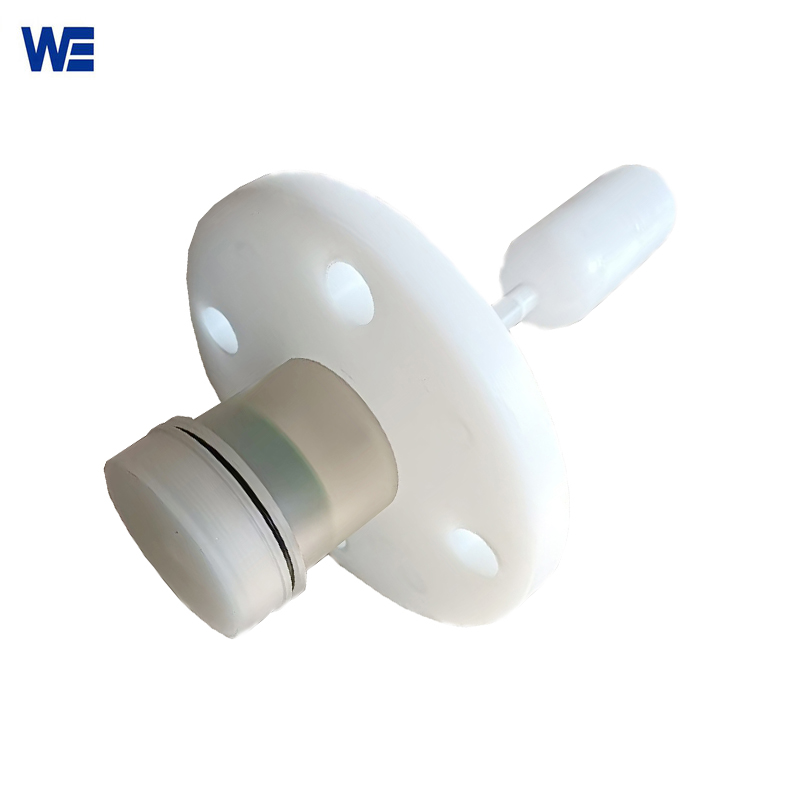

PP float level switch side mounted

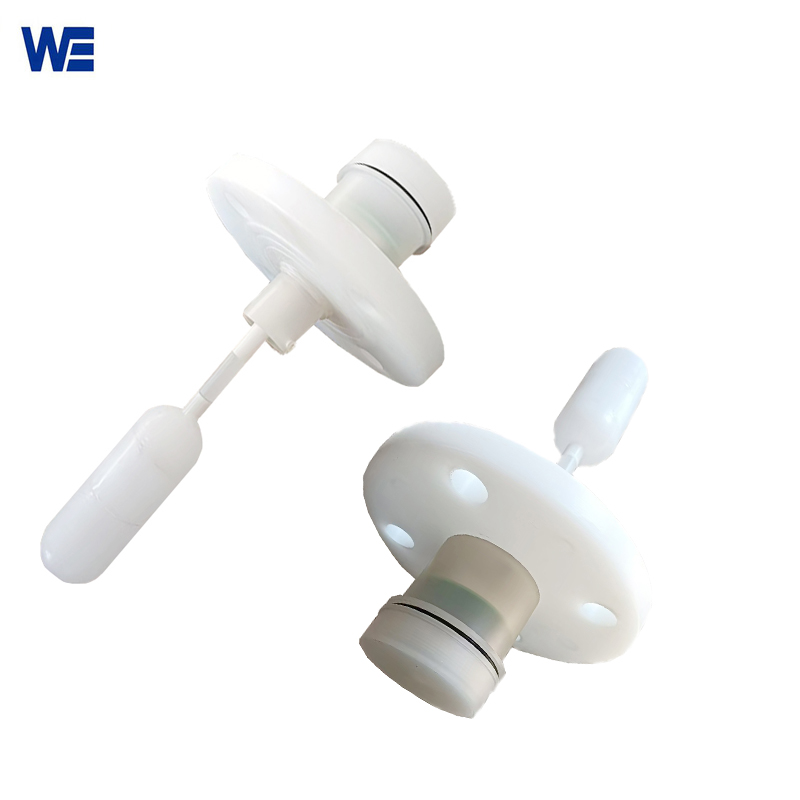

PP side mounting float switch for corrosive liquids

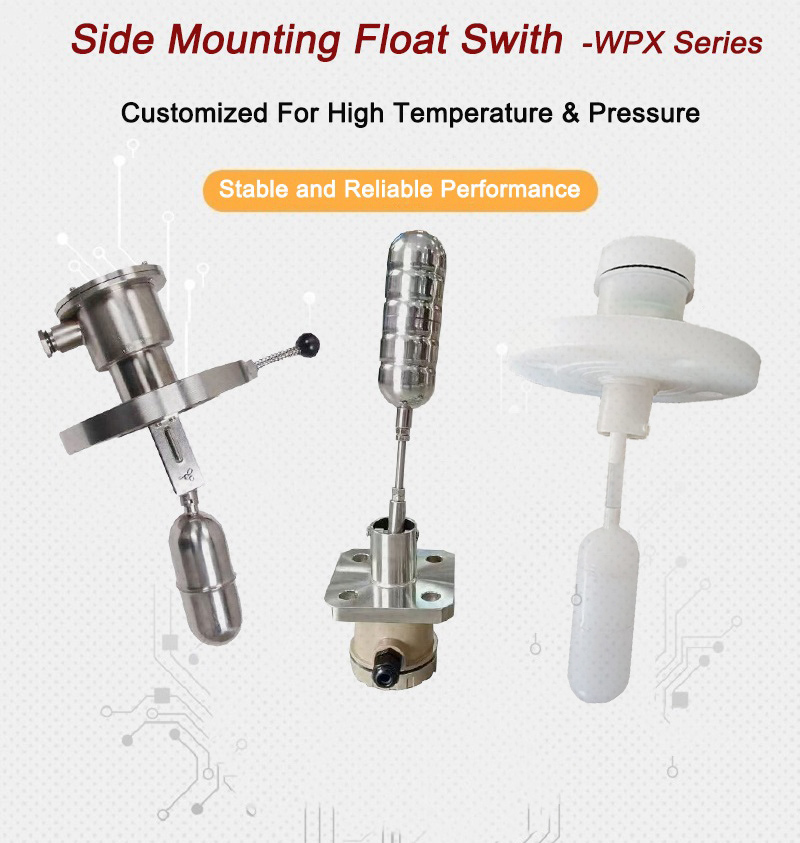

side mount float level switch china factory

Side-mount Float Level Switch PP Material

Side-mount Level Switch PP Material is the ideal choice for the corrosive measured liquids with normal temperature and pressure. It is long lifespan with contact of  1 million times.

Category: Side Mount Level Switch
Share
  • Description

product overview

 Side-mount Float Level Switch PP Material is designed for the corrosive liquids  that all the parts( housing ,flange /thread , rod ,floats)  are PP material except the electronic, which is  for the ultimate corrosion resistance.   The main features of WPX float level switch is ease usage, simple structure, safety , reliability, long service life, small size, fast operation, durability with a contact life of up to 1 million cycles. PP material side mount float level switch  can be used for level detection in chemical storage tanks and reactors, and other site that the measured liquid medium is corrosive . Since PP material can not resist high temperature and high pressure , our PP float level switch is ideal choice for the corrosive liquids with normal temperature and pressure.

Product Name Side mounted float level switch  PP material
Output Contact 5A/220VAC
Operating Pressure <1.5Mpa
Operating Temperature -20~80℃
Wetted Material PP
Applicable Specific Gravity >0.65
Contact Form SPDT
Process Connection Thread, Flange ( round flange /square flange ), Customization
Installation  Types Side- mounted or Top- mounted
Float Material Titanium Alloy, PP
Wiring Box Material  PP
Model WPS 101/102/103/104

detailsside mount float level switch china factory

PP side mounting float switch for corrosive liquidsSide mounted liquid level switch-dimension wiring diagram of float type liquid level swith

float ball level sensor workshopFloat Level Switch side mounting typeSide mounted level switch-shipment
