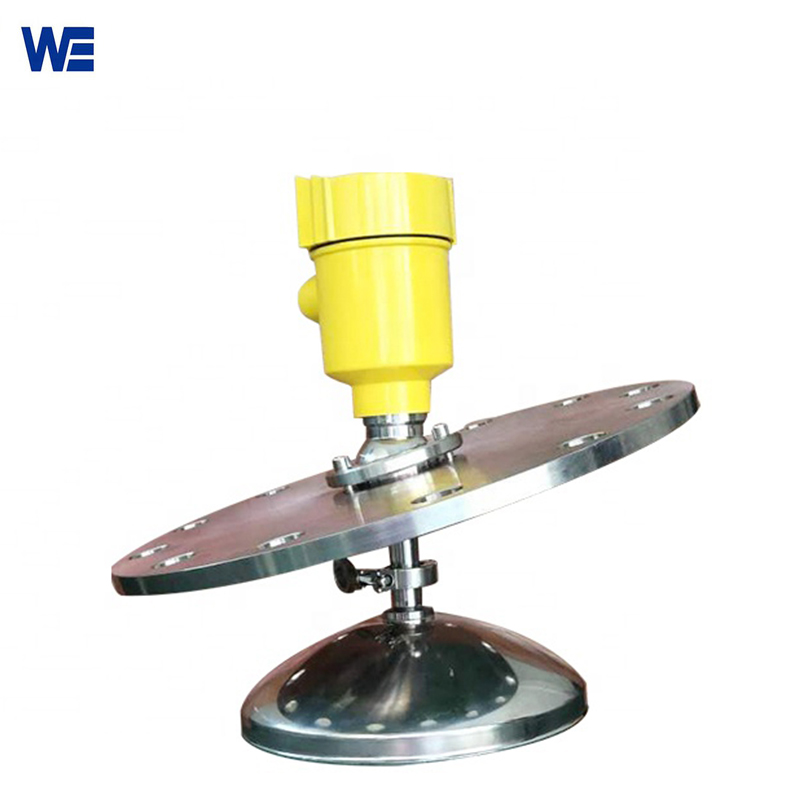

Silo Radar Level Meter

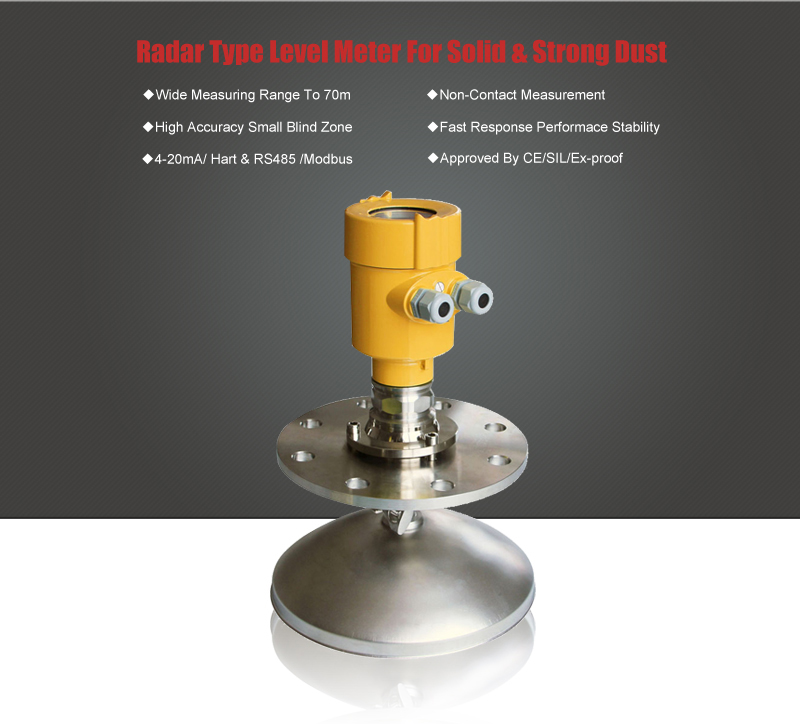

Silo radar level measurement（meter) can be used for reactor, solid silo, solid material , strong dust , and very complex measurement environment, this model is specially designed for solids material , strong dust ,easy to crystallize ,condensation occasion.

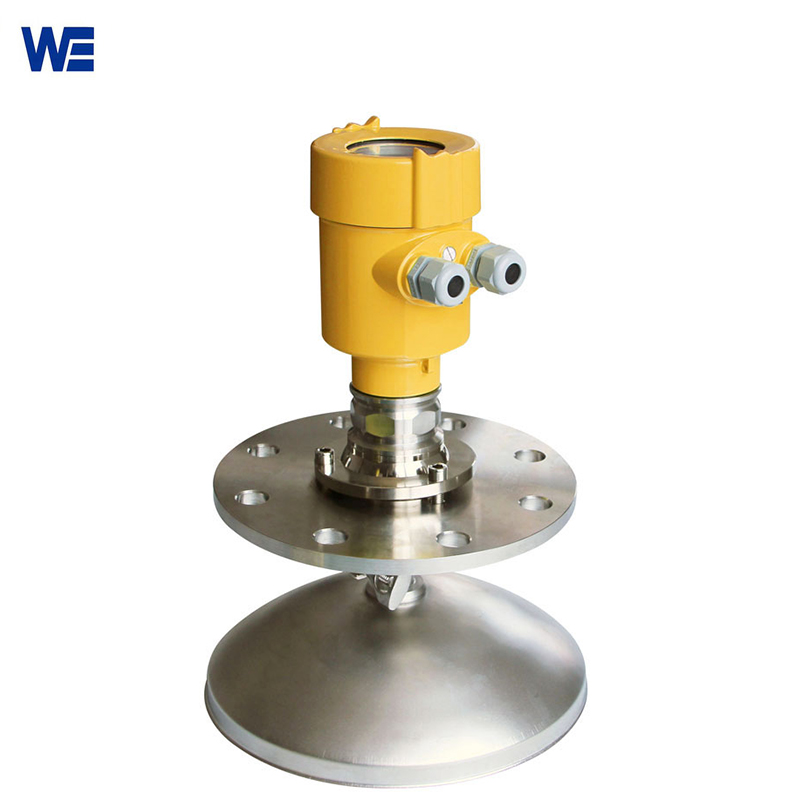

This Model WERD804 Silo Radar Level Meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70-80 meters, which is specially designed for solids material , strong dust ,easy to crystallize ,condensation occasion . Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, this rader type level transmitter can be used for reactor, solid silo, solid material , strong dust , and very complex measurement environment, it is non contact level measurement for silo ,tanks ,container etc .
| Product Name | Silo Radar Level Meter |
| Medium | Solid material, Strong dust, easy to crystallize, condensation occasion |
| Process Connection |
Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy |
± 15mm |
| Display | LED, Programmable |
| Material |
Antenna :Stainless Steel |
| The seal between the shell and the shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing : Aluminum / Plastic / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance 1 blind plug |
| Terminal : Conductor cross section 2.5mm² | |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire ) |
| RS485/ Modbus | |
| Resolution: 1.6μA | |
| Blind area | the ends of the antenna |
| Maximum measuring range | 80 meters |
| Pressure | Max.4MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃(Standard type) / -40℃~230℃(High temperature type) |
| Working Storage Temperature | (-40～80) ℃ |
| The instrument is preferably installed at 1/4 or 1/6 of the diameter of the tank. 1. datum2. The container center or axis of symmetry Note: The minimum distance from the tank wall should be 200mm. |
 |
| The top conical tank level, can be installed at the top of the tank is intermediate, can guarantee the measurement to the conical bottom. |  |
| Typical installation errors: Conical tank cannot be installed above the feed port.
Note: outdoor installation should adopt sunshade. 1. Correct 2. Error rainproof measures |
 |
| There are obstacles affecting measurement needed reflection plate.
1. Correct 2. Error |
 |
