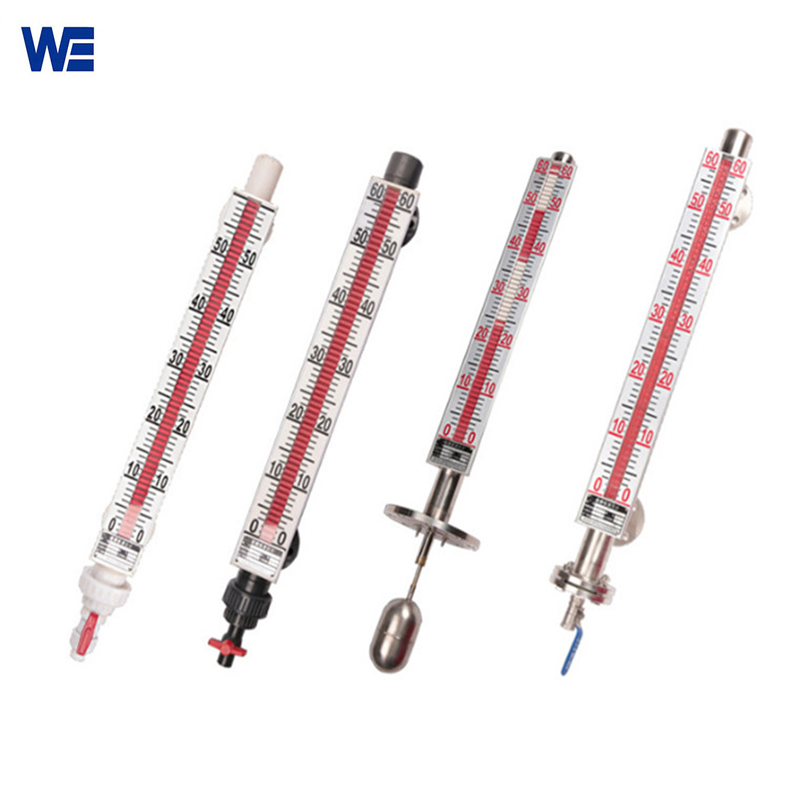

Mechanical water tank level indicator produced by Wepower electronic
Magnetic float level meter produced by Wepower electronic
Level sensor for acid liquid tanks produced by Wepower electronic
Magnetic float level gauge with 4-20mA produced by Wepower electronic

Tank Float Level Indicator

Tank float level indicator is mainly installed on the side of industrial tanks. Wepower Electronic tank float level indicator has a long measuring range and supports the measurement in high temperature and high pressure environment. The Tank float level indicator is an intuitive energy saving liquid level gauge.

Category: Magnetic Level Indicator
Share
  • Description

product overview-wepower electronic

Tank Float Level Indicator is also called magnetic level indicator, Wepower Electronic tank float level indicator has a simple structure, mainly composed of buoys, magnetic floats, plastic/ Ceramic material flip baffle, drain valves and connecting flanges. Tank float level indicator is a boon for customers who prefer mechanical automation instruments. Wepower Electronic has always been committed to the production and supply of high-quality magnetic buoyancy instruments, and has many years of experience in this field.

Common Problems When Using Tank Float Level Indicator :

▲ If the float does not float, it may be that there is a problem with the density of the float, so take it out in time and check the density of the float.

▲ If it is found that the magnetism of the float is weakened, it is necessary to contact the merchant to negotiate a solution. After the manufacturer finds out the reason, the manufacturer will resend the right float to the customer.

▲ If the float is deformed or leaks, it is likely that the liquid is corrosive or the working pressure is abnormal. It is necessary to communicate with the merchant in time and seek a solution.

Magnetic liquid level indicator produced by Wepower electronicMagnetic liquid level gauge produced by Wepower electronicparameters of radar level meter

Product Tank float level indicator
Model number WP/ZP- UHZ
Working principle Magnetic coupling effect
Measuring media liquid like water, solutions
Measuring range 300-13000mm
Accuracy 10mm
Working pressure 1.0/1.6/2.5/4.0/6.0/16Mpa
Working temperature -20~450°C
Medium Viscosity ≤0.5Pa.S
Medium density ≥0.45g / cm 3
Relative Humidity 10% to 90%
Environmental Pressure 86KPa ~ 106KPa
Wetted materials stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc.
Process connection flange connection, DN25 by default.
Power supply DC24V or AC220V
output Mechanical type, output type(4-20mA+HART)
Display With LCD display or Without
Installation type Side mounted or top mounted

Installation case of WEpower electroniccases of Wepower electronic-magnetic level gaugefinished product show of magnetic level gaugepackage and shipmentpackage of magnetic level sensor-Wepower electronicpackage and shipment of magnetic level gaugeRF admittance level sensor-application area
