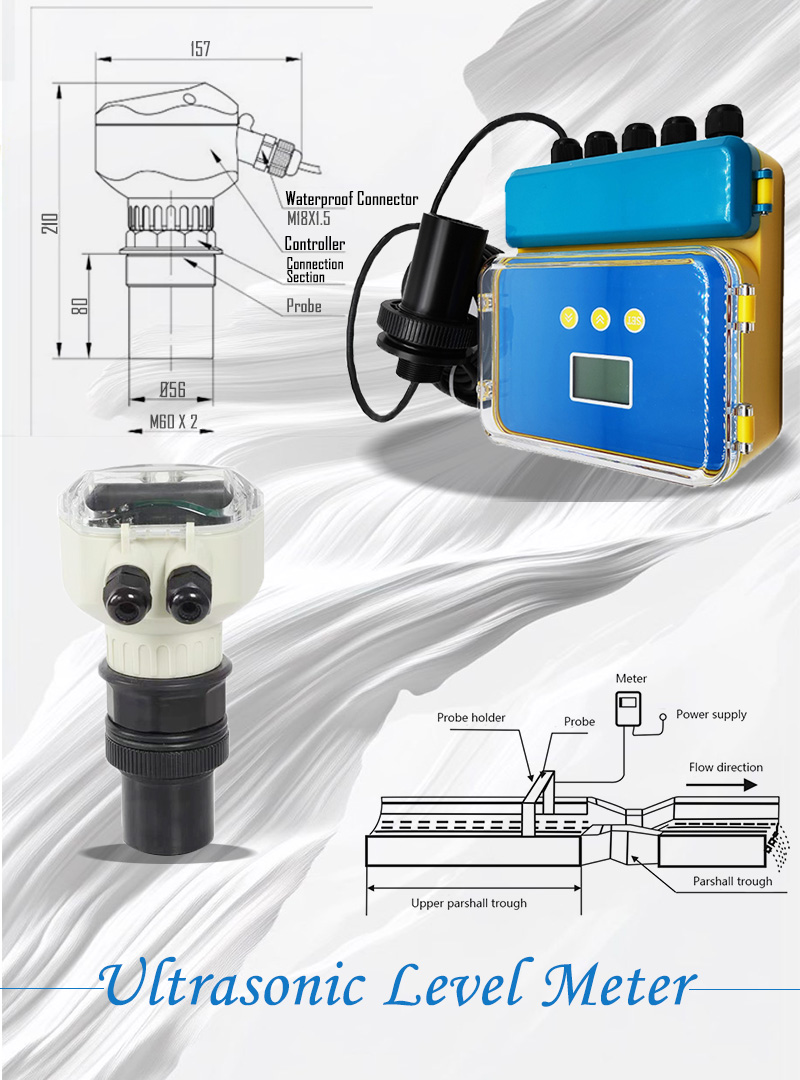

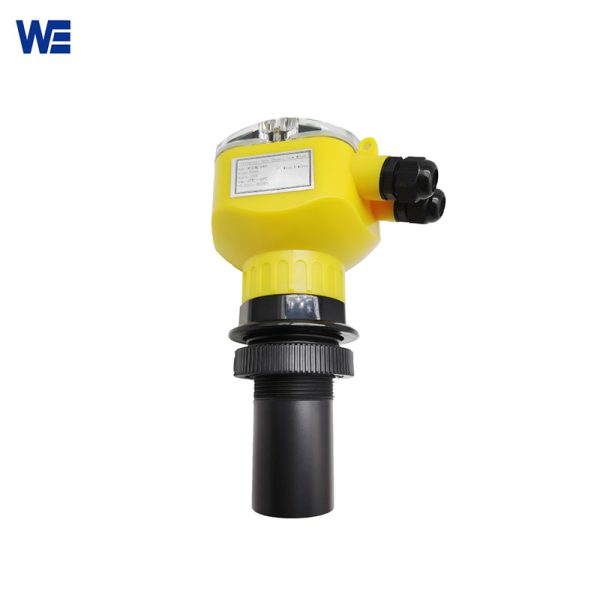

Ultrasonic Level Transmitter
Ultrasonic level transmitter produced by Wepower Electronic is safe, reliable, cost-effective, easy to install and maintenance-free. If you are need of ultrasonic level meters, contact Wepower!
What’s The Working Principle Of Ultrasonic Level Transmitter?

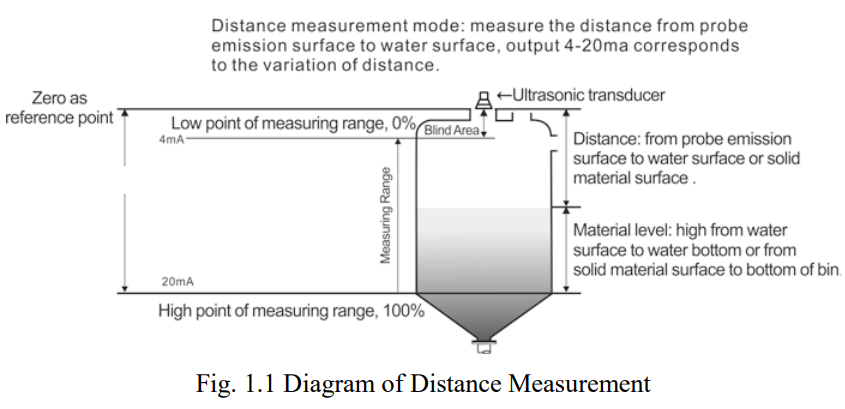

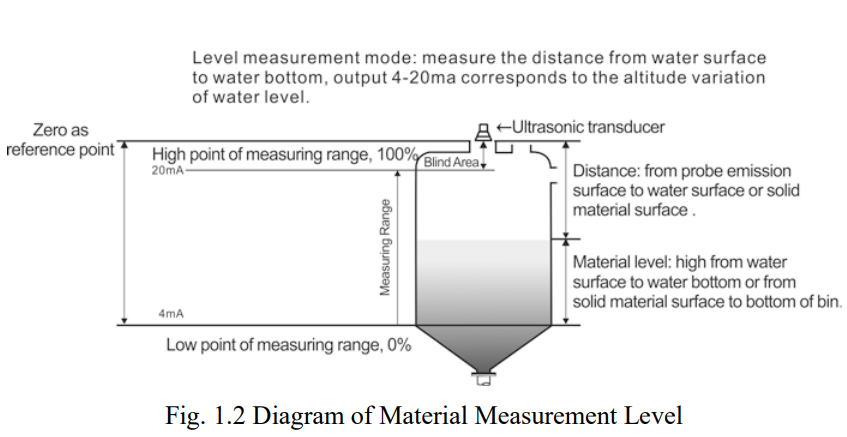

Ultrasonic Level Transmitter (measures material level, liquid level) is a non-contact level measuring instrument. It does not need to contact the medium, and the sensor transmits and receives reflected pulse sound waves to the liquid surface to meet the requirements of liquid level measurement. According to the time difference between the emission and return of the sound wave and the speed of sound, the distance between the sensor and the medium can be determined, and the liquid level height can be calculated.
Advantages Of Ultrasonic Level Transmitter Produced By Wepower:
- Maintenance-free: no moving parts, reducing mechanical wear.
- Easy installation: no need to drill holes or directly contact the medium.
- Safe and reliable: suitable for flammable and explosive environments (explosion-proof type optional).
- Cost-effective: lower cost than radar level gauges, suitable for budget-limited scenarios.
- Automatic calibration: most devices have automatic calibration function, reducing manual intervention.
| Name | Ultrasonic Level Transmitter | |
| Function | Integrated Type | Seperated Type |
| Measuring Range | 5m, 10m, 15m, 20m, 30m | 5m, 10m, 15m, 20m, 30m, 40m, 50m, |
| Measurement Accuracy | 0.5%-1.0% | 0.5%-1.0% |
| Resolution Ratio | 3mm or 0.1%
(whichever is greater) |
3mm or 0.1%
(whichever is greater) |
| Display | English LCD | English LCD |
| Analog Output | 4-line system, 4~20mA/
510Ω load 2-line system, 4~20mA/ 250Ω load |
4~20mA/ 510Ω load |
| Relay Output | 2groups (i.e. AC 250V/ 8A or DC 30V/5A) optional,
state programmable |
2groups for single channel and 4groups for double channels(optional)
AC 250V/ 8A or DC 30V/ 5A, state programmable |
| Power Supply | Standard configuration: 24VDC
Optional: 220V AC±15% 50Hz
|
Standard configuration: 220V AC±15% 50Hz
Optional: 24VDC 120mA Customized: 12VDC or battery powered |
| Ambient Temperature | Display instrument: -20~+60ºC
Probe: -20~+80ºC |
Display instrument: -20~+60ºC
Probe: -20~+80ºC |
| Communication | 485, 232 communication
(optional) (manufacturer agreement) |
485, 232 communication (optional)
(manufacturer agreement) |
| IP Grade | Display instrument: IP66,
Probe: IP68
|
Display instrument: IP65,
Probe: IP68
|
| Probe Installation | Select type based on measuring range and probe | Select type based on measuring range and probe |
| Probe Cable | None | 100m available,
standard configuration: 10m |
| Probe Material | ABS plastic(PTFE for anti-corrosion) | ABS plastic(PTFE for anti-corrosion) |
| Thread Recommendation | 0-2m: M48*2
3-10m: G2A 11-20m: M78*2 25-30m: G3 Over 35m: M108*2 |
0-2m: M48*2
3-10m: G2A 11-20m: M78*2 25-30m: G3 Over 35m: M108*2 |
