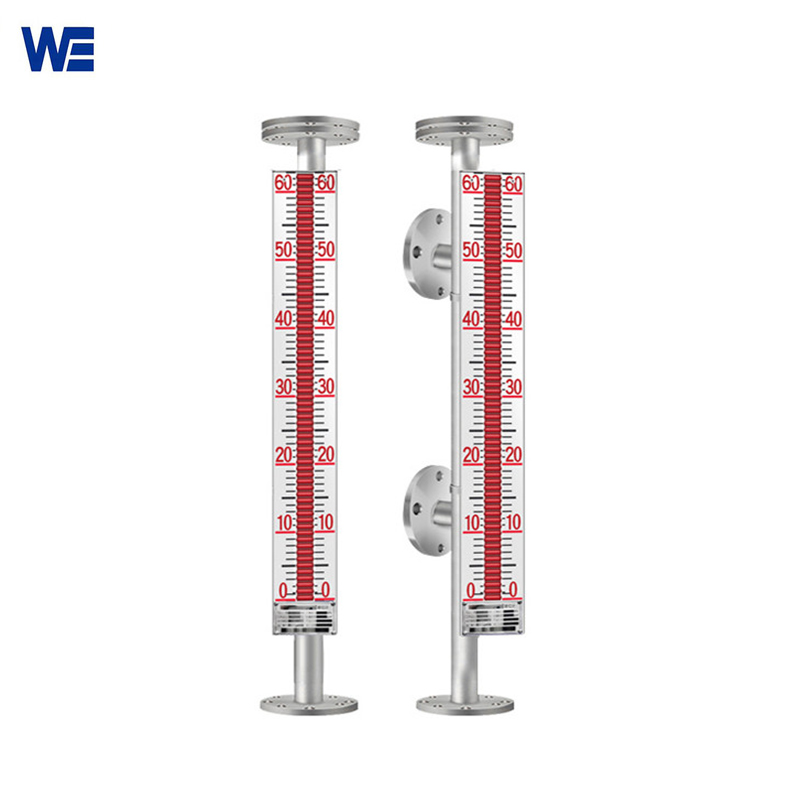

Magnetic Liquid Level Indicator

What Are The Advantages Of Wepower Magnetic Liquid Level Gauge?

• Low carbon energy economy;
• High sealing;
• Leak proof;
• Easy installation;
• Less affected by the environment;
• Can be used in corrosive industry;
• High accuracy;
• Reliable quality;
• Simple maintenance.

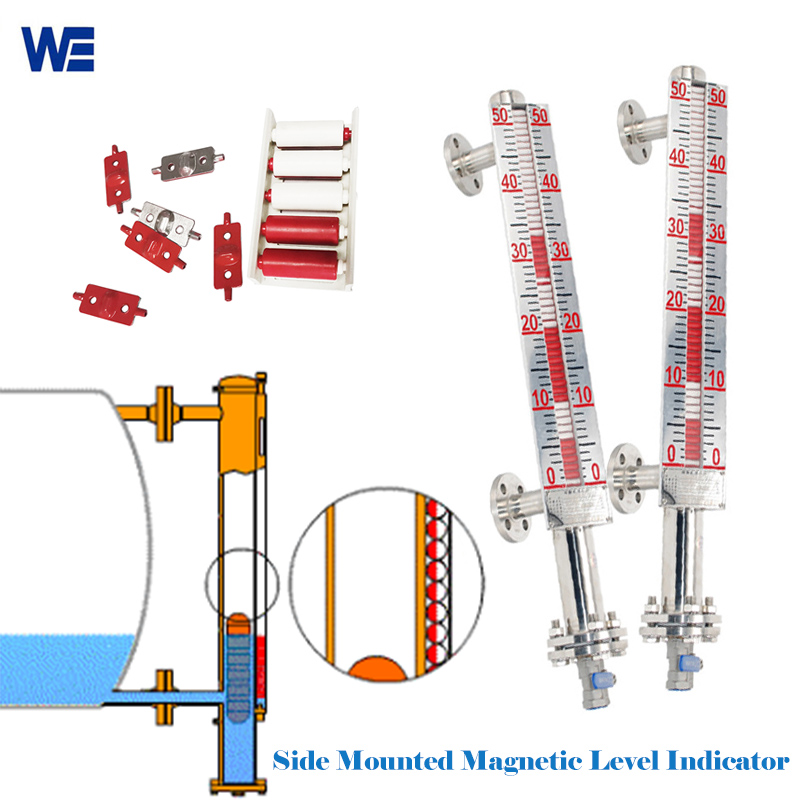

What Is The Principle Of Wepower Magnetic Liquid Level Gauge?

• Mechanical magnetic liquid level gauge

As the liquid level rises, the magnetic float will also rise. Under the action of magnetic force, the same poles repel and opposite poles attract, the magnetic force will cause the magnetic flapper to rotate 180, allowing for a direct reading of the liquid level height of the water storage facility. When the liquid level drops, the magnetic float will also descend. Similarly, the magnetic force will cause the corresponding magnetic flip column to rotate 180°again.

• Remote transmission magnetic liquid level gauge

The magnetic level indicator is combined with the reed switch remote transmission transmitter. While the liquid level measurement height is displayed on the on-site display panel, it is also transmitted to the central control room through a 4-20mA remote transmission signal, achieving remote control, indication and recording on secondary instruments or PLC devices.
