Water Tank Level Indicator

Features of Water Tank Level Indicator:

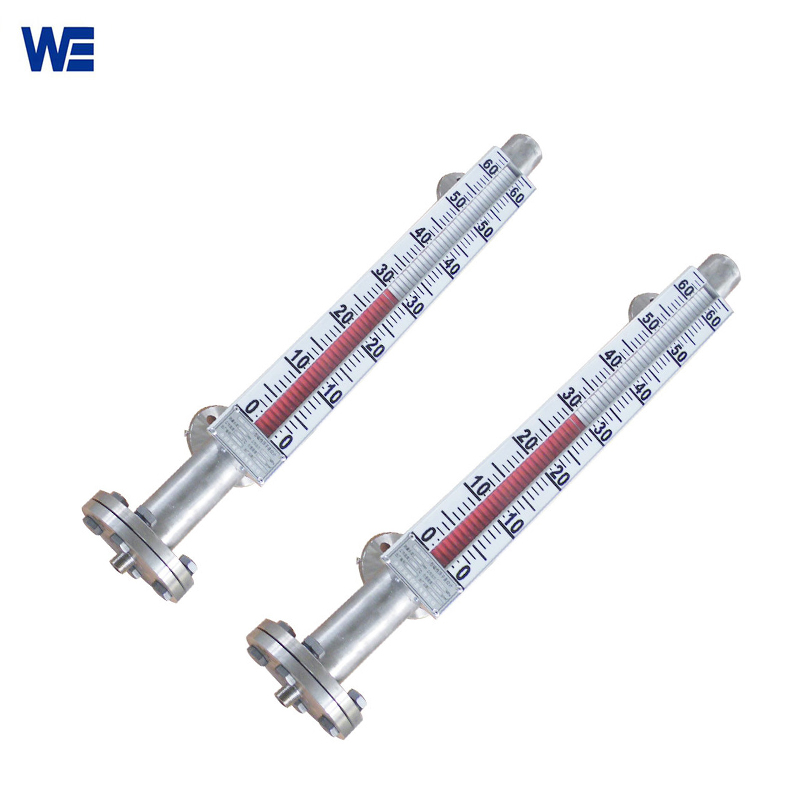

UHZ series Water Tank Level Indicator ,the whole process of measuring high sealing, leak-proof, high temperature, high pressure, high viscosity, corrosive conditions can still achieve safe and reliable liquid level measurement and control, water tank level indicator full scale without blind spots, eye-catching display, intuitive readings, and a large measurement range.

Installation:

Depending on the installation requires the user to test the container may be provided Side-mounted and Top-mounted in two different installation methods available. Optional limit switches, liquid level can be achieved, the QA lower limit alarm and control, optional level transmitter, the signal level can be converted into 4-20mA standard signal, to achieve long-range detection, indication, recording and control. Depending on the measured medium, it offers a variety of stainless steel and Teflon lining material. Not suitable for workplaces with strong vibration and strong magnetic.

Classification:

Ordinary

On-site display instrument, widely used in petroleum, chemical, electric power, light industry,and environmental protection. Continuously display the liquid level in the open pressure container.

Corrosion Resistance

Suitable for corrosive and toxic liquid level measurement instructions.

Heat Tracing Type

Suitable for measuring liquid medium with relatively high viscosity and easy to crystallize (heat tracing device is required).

High Temperature Type

Suitable for liquid level measurement of liquid medium whose container pressure is less than 10Mpa and temperature is between -200～450℃.

High-Pressure Type

Suitable for sealed containers with a temperature below 200°C and a process pressure of10Mpa (below 20Mpa).

Explosion-proof

is suitable for inflammable and explosive occasions.

Top Mounting

Is suitable for various underground fluid medium storage tanks, and can display the liquid level on the ground.
