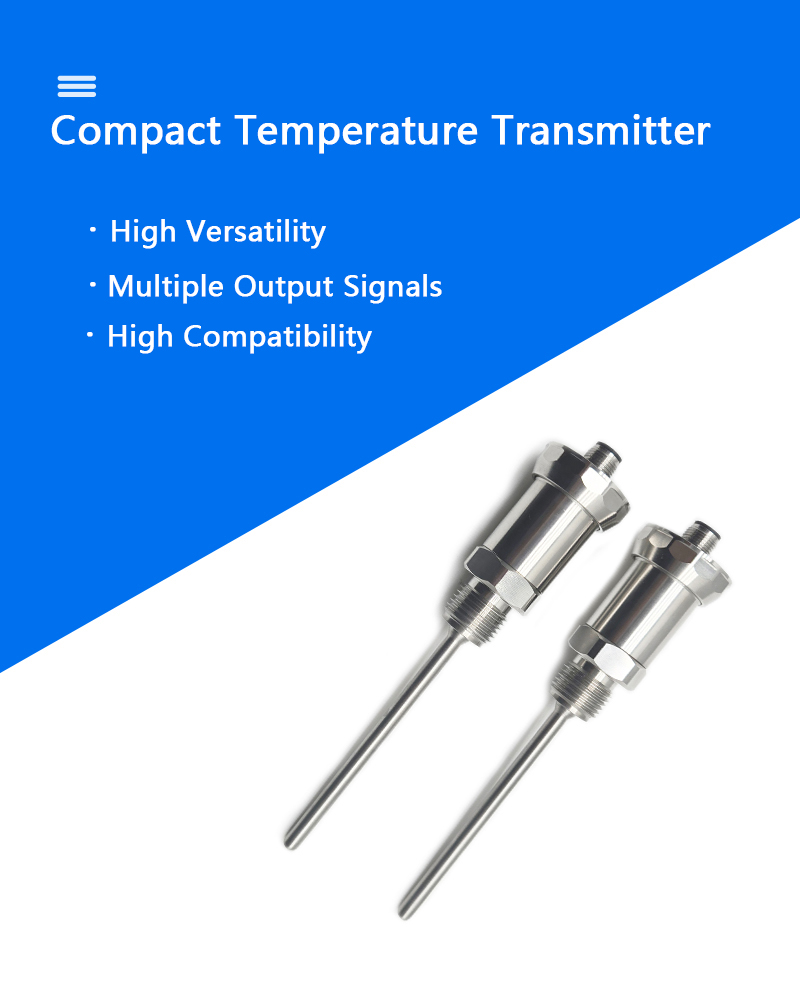

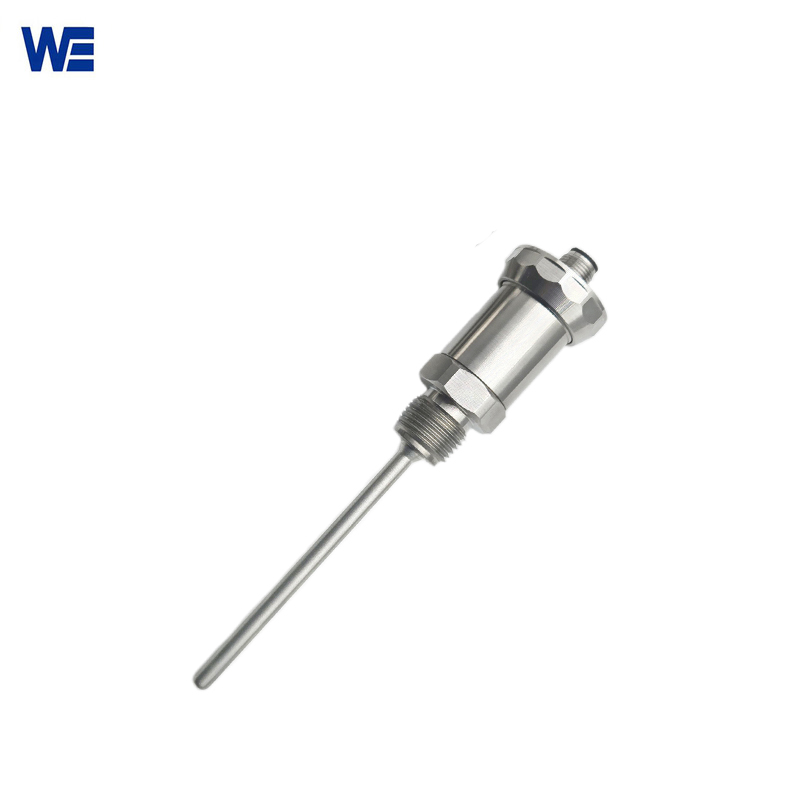

Compact Type Temperature Transmitter
Wepower’s compact type temperature transmitter is constructed entirely of stainless steel, with a compact design that perfectly fits into confined installation spaces. Our compact type temperature transmitter confidently withstands harsh industrial environments such as dampness and oil contamination, making it suitable for various operating requirements.
Compact Size Great Power
From its appearance to its performance, this Compact Type Temperature Transmitter embodies a compact yet high-performance design. Constructed entirely of high-quality stainless steel, its compact body with no redundant structures makes it perfectly suited for confined installation spaces.
The Temperature Transmitter’s stainless steel probe undergoes special heat treatment, possessing excellent high-temperature resistance and anti-aging properties, meeting temperature measurement requirements from -50 to 300℃ or even higher. The compact type temperature transmitter features a sealed structure with a high level of protection, effectively preventing the intrusion of external moisture, dust, and oil. The built-in high-performance signal module can quickly process signal conversion and output, achieving real-time and accurate transmission of temperature data. Our compact type temperature transmitter is widely used in process industries, medical, HVAC, food, and scientific experiments.
Parameters:
| Medium | Liquid, Gas |
| Input | PT100/PT1000 |
| Range | -200～+350℃ |
| Accuracy | ±0.5% |
| Temperature change effect | For 0.5 grade：0.05%F.S/℃ |
| Protection tube diameter | Φ5, Φ6, Φ8(mm) |
| Protection tube material | SS304/316 |
| Output | 4～20mA(two-wire); RS485; 0-5VDC; 1-5VDC; 0-10VDC |
| Display | With display/Without display |
| Installation | Fixed thread, adjustable thread, Fixed flange, adjustable flange, tri-clamp |
| Electrical Connection | Hersman joint; Aviation joint |
| Power supply | 12～36VDC, nominal voltage 24VDC |
| Operating temperature range | -50～+300℃ |
| Storage Temperature | -45～+125℃ |
Ordering Selection
