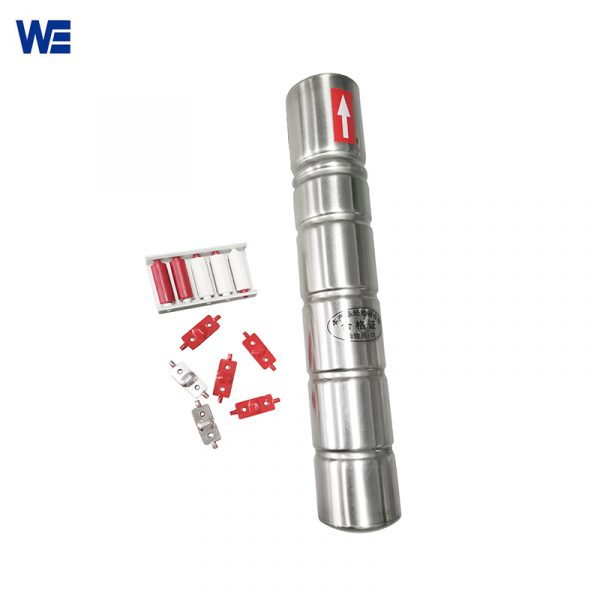

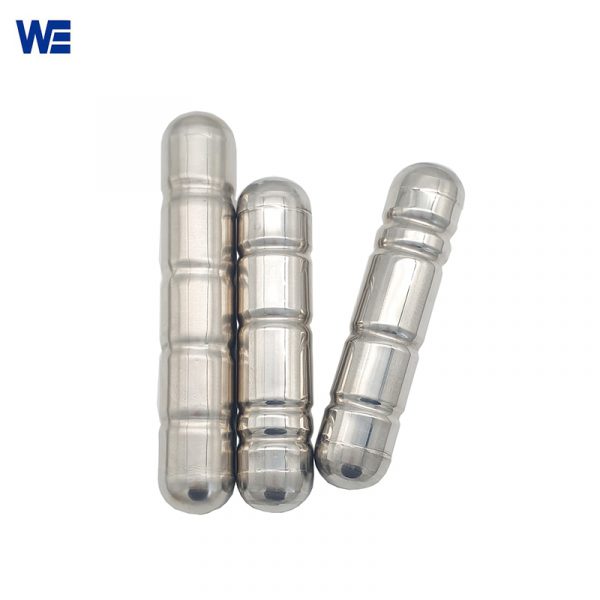

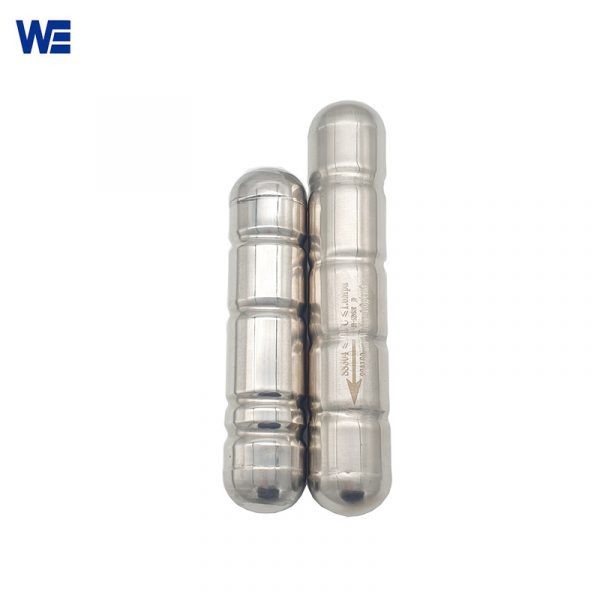

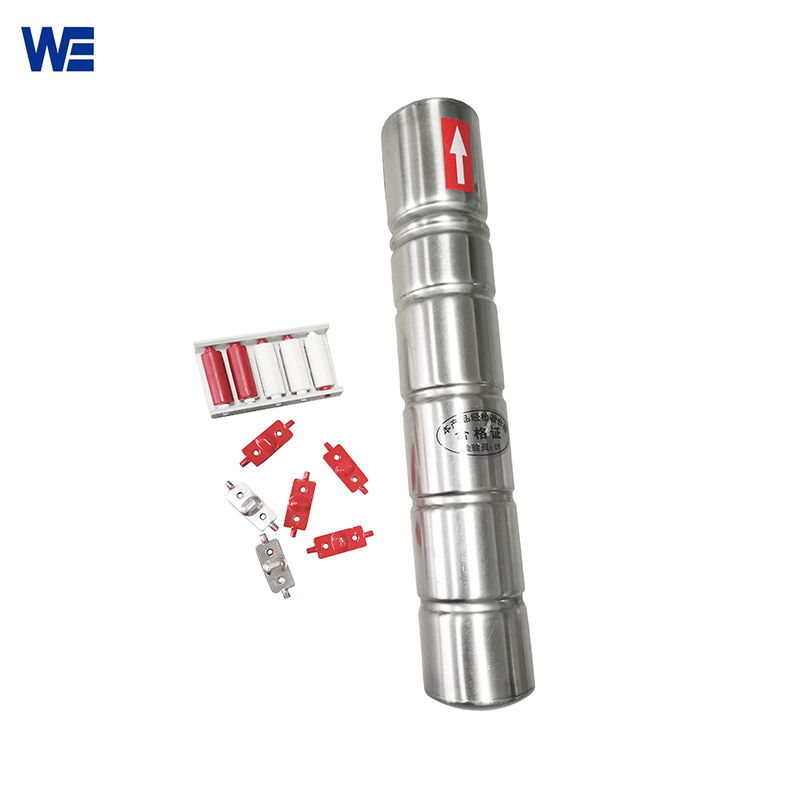

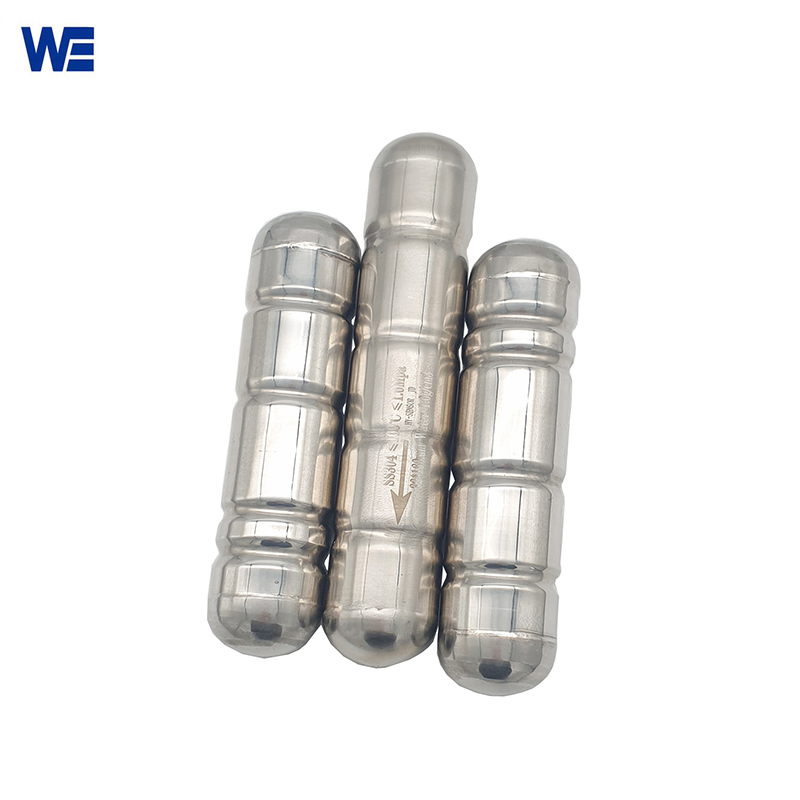

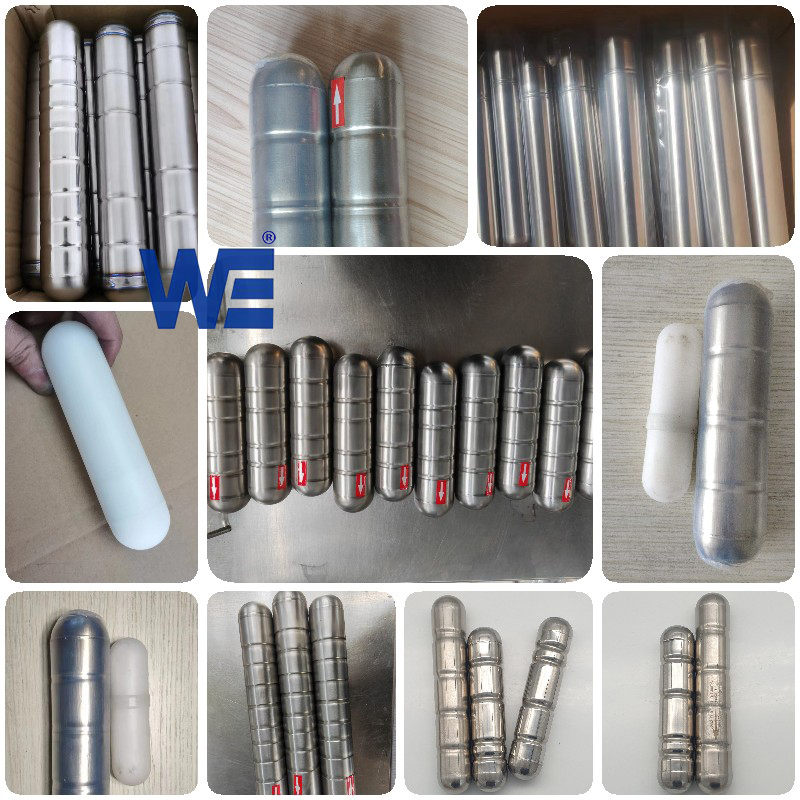

Float For Magnetic Level Gauge

Wepower magnetic floaters are available with a range of functions and designs. The magnetic tank level indicator specifically uses this type of magnetic float. It appears that the float is cylindrical and has a smooth surface. Because a permanent magnet is built into the middle of the magnetic float, it floats on the liquid level.

Working Principle Of Float For Magnetic Level Gauge:

The conduit pipe of the magnetic tank level indicator is where this float accessory is installed. When the liquid levels rise and fall, the magnetic float in the stainless conduit pipe can freely float up and down. The measuring floats differ due to the variation in the measuring medium. The density of the liquid to be measured and the pressure inside the tank dictate the form and composition of the magnetic float. The most widely used float diameter specifications are 45, 50, and 40 mm. Stainless steel 304 or 316 is commonly used to make the magnetic float in magnetic tank level indicators, while titanium is used for densities less than 0.6.

What May Cause The Loss Of Magnetism Of The Magnetic Float?

• Prolonged use may weaken or even lose the magnetic force of the float.
• Some high and low temperature environments may affect the magnetic force.
•  If there is a strong magnetic field outside, the float will also be affected.
• If this happens, the user needs to replace the float in time, and the replaced float must have the same density.

Magnetic float accessory can be customized according to customer requirements, we support bulk sales and 12-month warranty. Contact us now!
