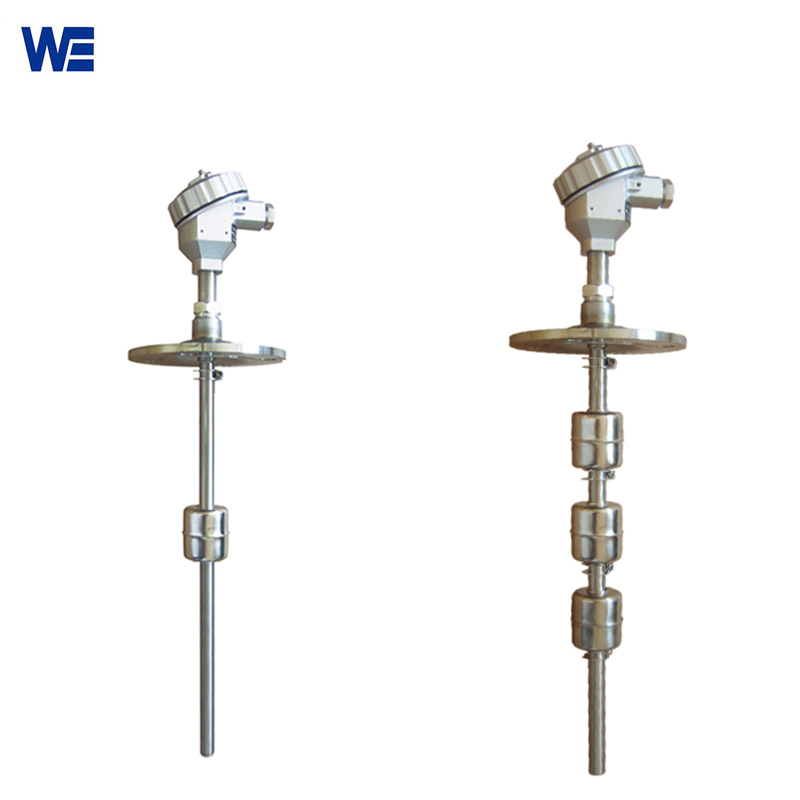

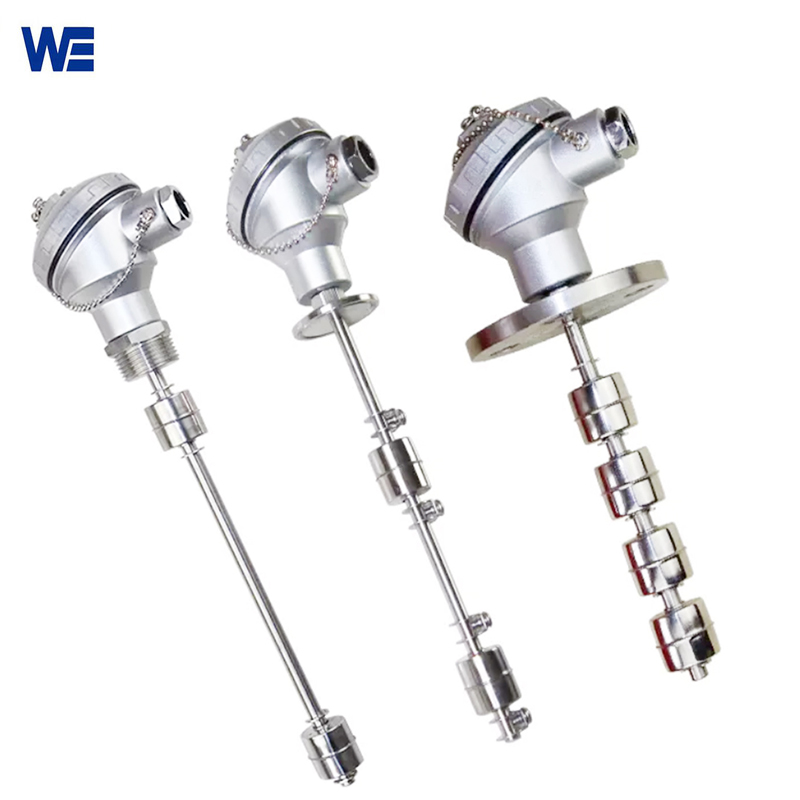

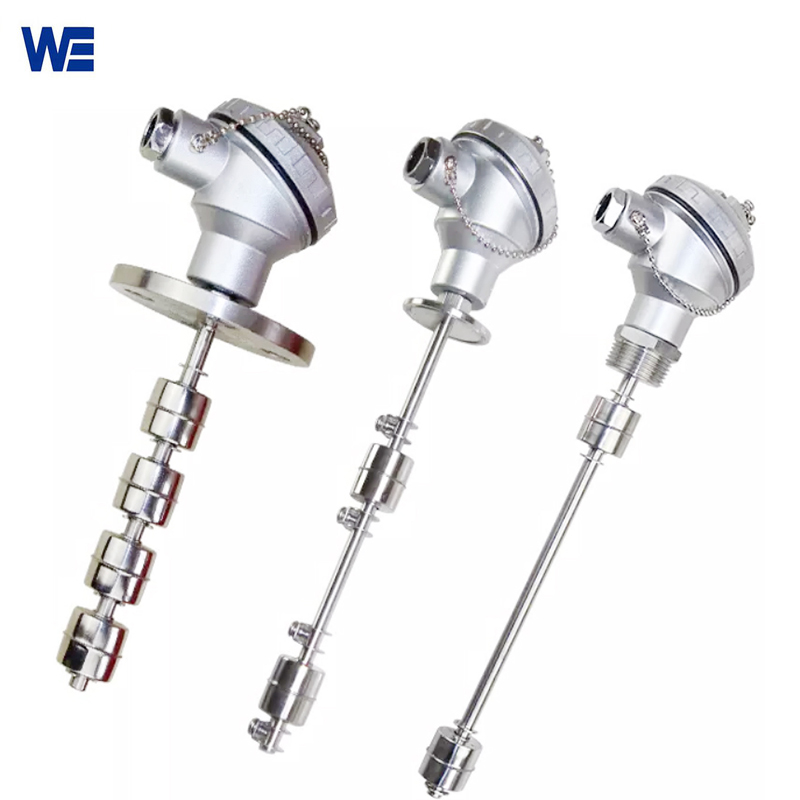

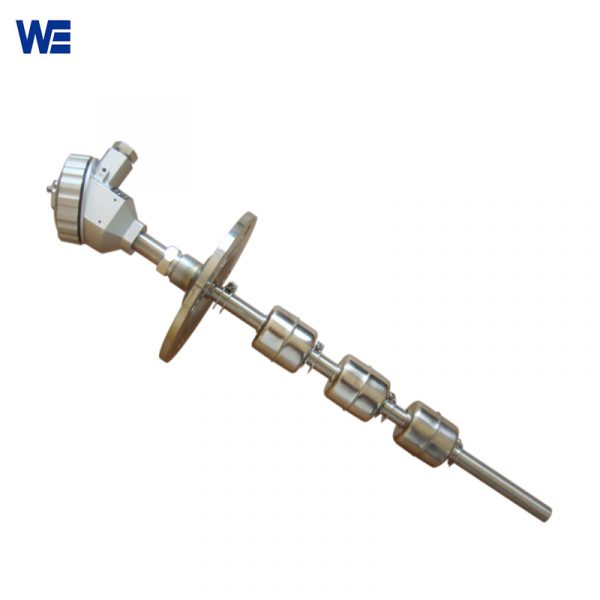

Float Type Level Switch For Tanks
WE-UQZ Magnetic float type level switch has the advantages of simple structure, convenient use, stable performance, long service life, easy installation and maintenance, etc.
WE-UQZ Magnetic Float Type Level Switch has the advantages of simple structure, convenient use, stable performance, long service life, easy installation and maintenance, etc. It is suitable for sewage treatment in industries such as petroleum, chemical industry, electric power, light industry and medicine, and the measurement of medium liquid level in various atmospheric and pressure-bearing containers, especially for the liquid level measurement of underground storage tanks and storage tanks.
The float type level switch for tanks has good reliability and high precision; in addition to the on-site indication, it can also be equipped with a remote transmitter, an alarm switch. The measurement accuracy of the ball float level switch can reach ±5mm, and the maximum temperature can reach 200°C.
| Measuring range | 299-8999mm |
| Power supply | 24VDC |
| Output signal | 4-20mA |
| Accuracy | ±5mm, ±10mm |
| Medium density | 0.5-2g/cm3 |
| Working temperature | -40-100℃:;-20-200℃; high temperature customized; |
| Pressure level | ≦10Mpa |
| Metal floating ball | ￠45, ￠52, ￠75 and other specifications |
| Flange specifications | non-standard customization, DN20, DN25, DN35, DN50 |
| Wetted material | SUS304, SUS316L, PP, and other materials |
| Protection class | IP65 |
