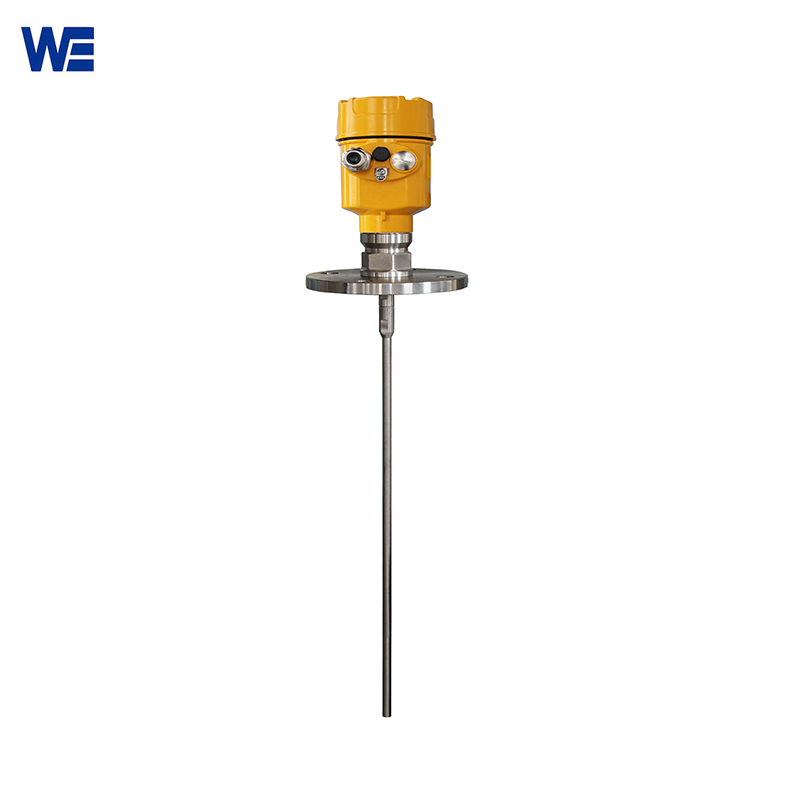

Guided Wave Radar Liquid Level Transmitter
Guided Wave Radar Liquid Level Transmitter can be applied to various complex working conditions. A variety of process connection methods and detection component types make this series of guided wave radar level meter suitable for various complex working conditions and occasions.
Guided Wave Radar Liquid Level Transmitter is a sophisticated microwave processor that may be used in a variety of challenging working environments thanks to its exclusive Echo Discovery echo processing technology. This line of guided wave radar level transmitters is appropriate for a wide range of challenging working settings and occasions due to its diverse detection component types and process connection options. high pressure, high temperature, and small dielectric constant medium, for example. With its pulse working mode, the guided wave radar liquid level transmitter WERD-60X series transmits at a very low power and is safe for both the environment and human health. It may be put in a variety of metal and non-metal containers.Click here to view non contact level gauge
WERD60X Series Cable Type
| Application | liquid, powder, solid particle |
| Model | WERD601/602/603/604/605 |
| Measurement range | 30m |
| Process Connection | thread, flange |
| Medium Temperature | -40…250℃ , (WERD605): -200…400℃ |
| Process Pressure | -0.1-4Mpa , (WERD605): -0.1-40Mpa |
| Accuracy | ±10mm |
| Frequency Range | 100MHz…1.8GHZ |
| Protection Degree | IP67 |
| Explosion-proof | ExiallCT6 |
| Signal Output | 4…20mAHART(two-wire) |
| Housing | Aluminum Alloy |
| Display | Four digital LCD ,can be programmed |
| Antenna | Single or double cable |
| Antenna Material | Standard or PTFE sealing for corrosive liquid |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V） |
WERD60X Series Rod Type
| Application | liquid, powder, solid particle |
| Model | WERD601/602/603/604/605 |
| Measurement range | 6m |
| Process Connection | thread, flange |
| Medium Temperature | -40…250℃ , (WERD605): -200…400℃ |
| Process Pressure | -0.1-4Mpa , (WERD605): -0.1-40Mpa |
| Accuracy | ±10mm |
| Frequency Range | 100MHz…1.8GHZ |
| Protection Degree | IP67 |
| Explosion-proof | ExiallCT6 |
| Signal Output | 4…20mAHART(two-wire) |
| Housing | Aluminum Alloy |
| Display | Four digital LCD ,can be programmed |
| Antenna | Single rod or Coaxial Tube |
| Antenna Material | Standard rod / PTFE sealing for corrosive liquid |
| Power Supply： | 2-wire（DC24V）/ 4-wire（DC24V /AC220V） |

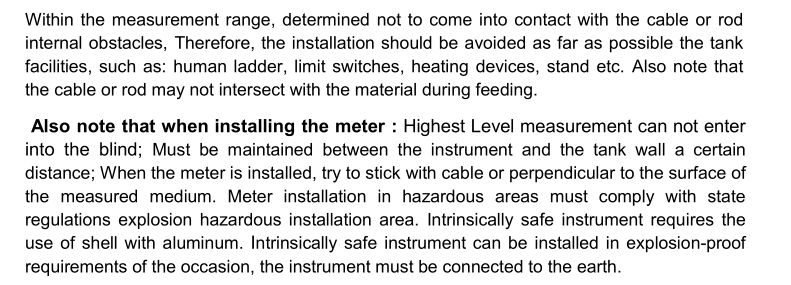

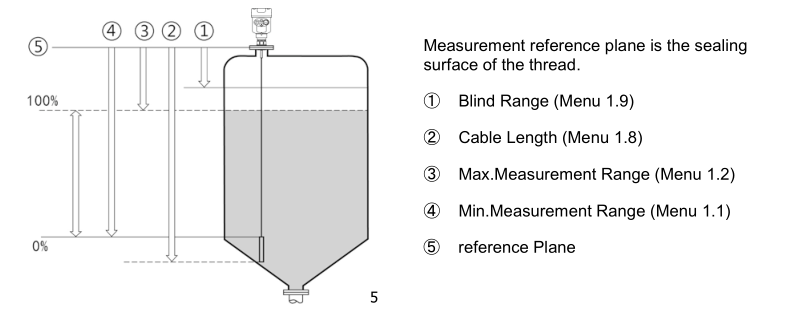

Installation Guidance:
