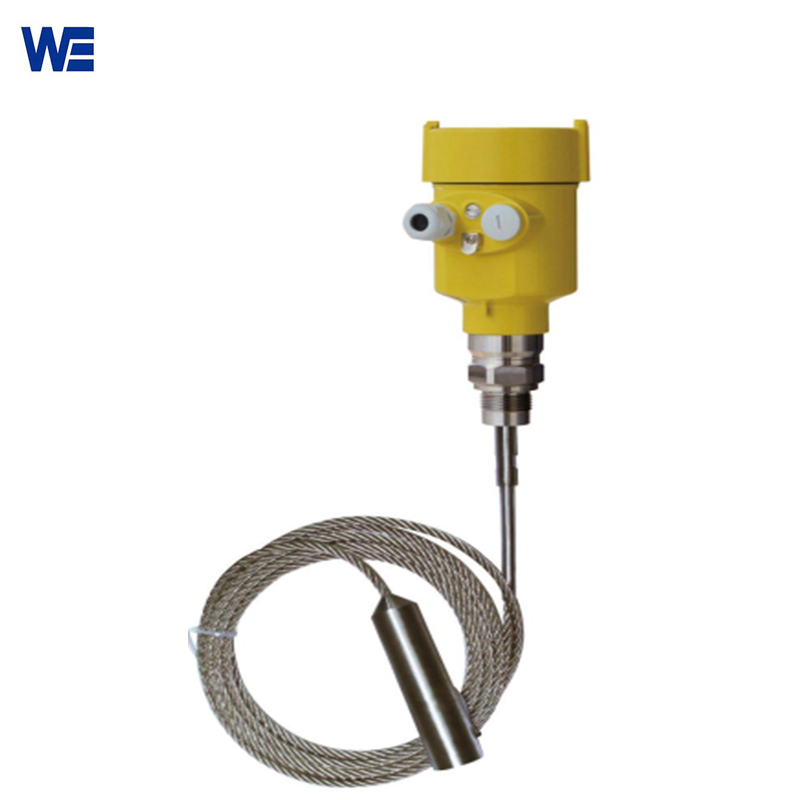

Guided Wave Level Transmitter

   Most radar level meters are designed to measure objects with high dielectric constants. The larger the dielectric constant, the greater the echo reflection effect. Due to its unique characteristics, the Guided Wave Level Transmitter WERD-60X Series can measure low dielectric constants.

   Guided wave level transmitters are frequently used in environments with challenging working conditions and external interference, and can usually measure liquids, highly corrosive liquids, solids, and powders. The rod-type coaxial guided wave level transmitter produced by Wepower Electronic is made of 316 stainless steel, which is wear-resistant and rust-proof. And can be used to measure the water level of fresh water, ice, sea ice, and swamps.

Features Of Guided Wave Level Transmitter:

• Applicable medium: liquid, special low dielectric constant liquid
• Application: Measurement of liquids such as ion-free water and deoxidized water
• Explosion-proof certification: Exia I IC T6 Ga/ Exd i a I I C T6 Gb
• Measuring range: 6m
• Frequency: 500MHz-1.8GHz
• Measurement accuracy: ± 5mm
• Process temperature: (-40~250) °C, WERD605: (-200~400) °C,
• Process pressure: (-0. 1~4) MPa, WERD605: (-0. 1~40) MPa
• Signal output: (4~20) mA/HART
• Live display: Four-digit LCD programmable
•  Power supply: two-wire system (DC24V) / four wire system (DC24V/AC220V)
• Shell: Aluminum / Plastic
• Process connection: thread / flange
