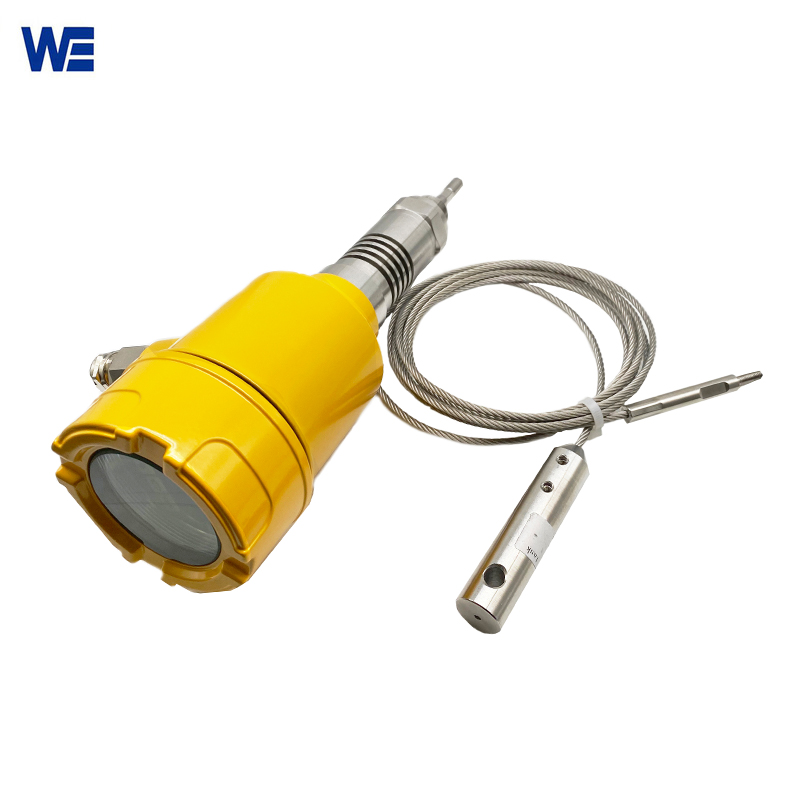

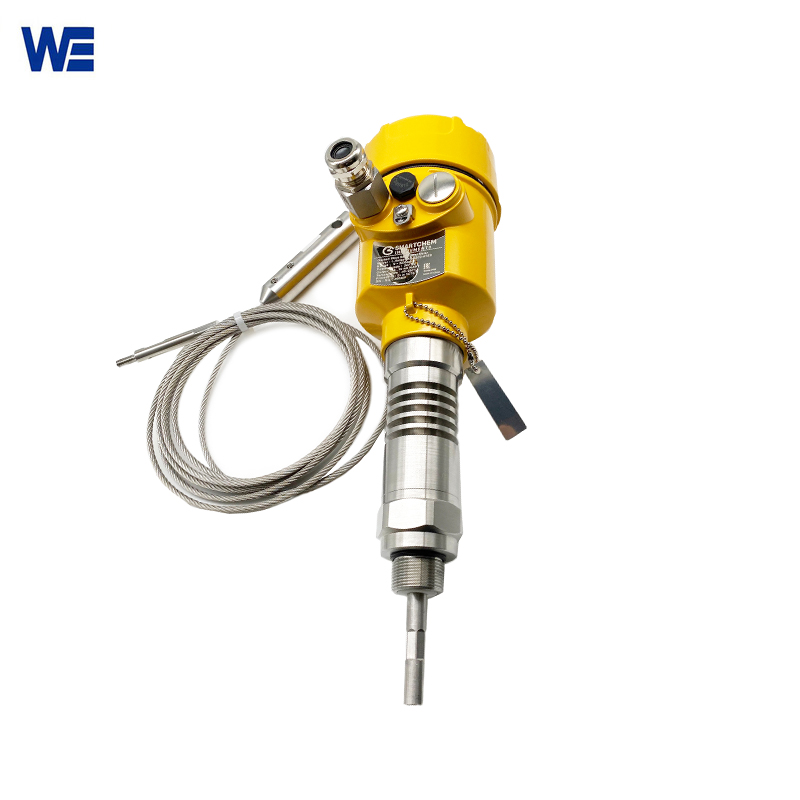

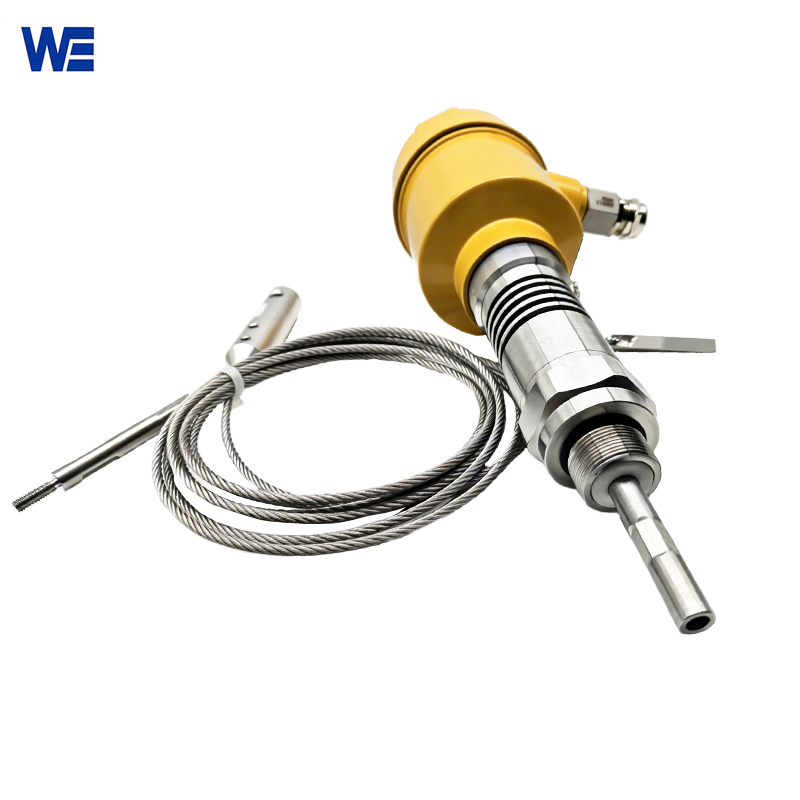

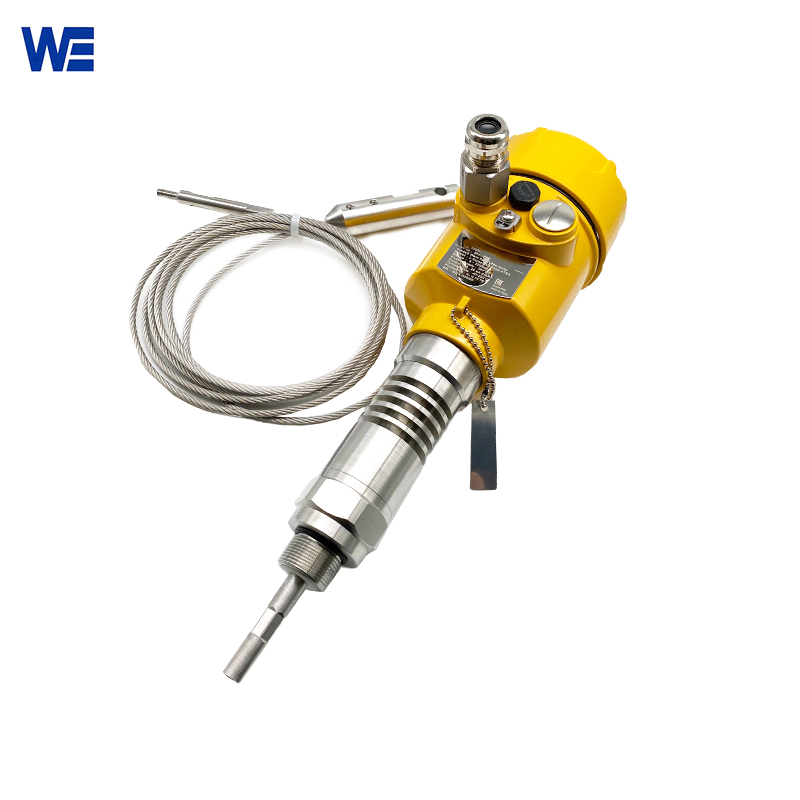

GWR Guided Wave Radar Level Transmitter
Wepower GWR guided wave level transmitter emits high-frequency pulse signals along the guided wave probe, unaffected by changes in temperature, pressure, viscosity, or complex working conditions such as foam, dust and steam. In addition, our guided wave radar transmitter can maintain millimeter-level measurement accuracy even in environments with strong interference.
What’s The Working Principle Of Guided Wave Radar Level Meter?
The principle of the guided wave level transmitter is to calculate the level by measuring the time difference of electromagnetic wave propagating along the guided wave probe. The time interval between the transmitted and received pulse can be used to further calculate the distance from the antenna to surface of the measured medium.
What’s The Advantages Of Guided Microwave Radar Level Transmitter?
- Precise Measurement, Unaffected By Media: Continuous measurement of level of liquids, slurries, particles and lumps.
- Adaptable To All Working Conditions & Fearless Of Extreme Environments: The probe is made of 316 stainless steel, which is corrosion-resistant and wear-resistant, and is suitable for various scenarios such as chemical, petroleum and food industries.
- Intelligent & Reliable:The GWR level transmitter is intelligent, dependable, and requires less maintenance because it has no moving mechanical parts, no wear, and requires no maintenance. ensures steady data delivery by automatically filtering interference echoes. Easily integrates with DCS/PLC systems and supports a variety of communication protocols, including 4-20mA, HART, and Modbus.

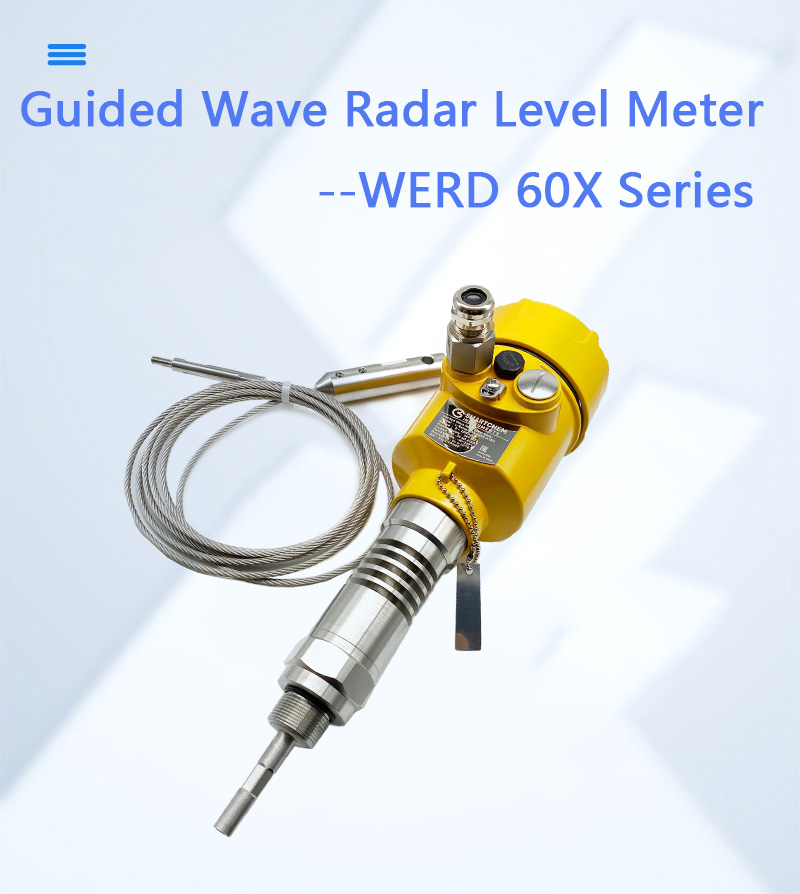

Wepower WERD-60X Series Guided Wave Radar Level Transmitter is the ideal choice for your level measurement needs, offering stable output and accurate measurement. Contact Wepower now for a customized measurement solution.
GWR Guided Wave Radar Level Transmitter Parameters:
| Application | Liquid, powder, solid particle |
| Model | WERD601/602/603/604/605 |
| Measurement range | 30m cable type ,6m rod type |
| Process Connection | thread, flange |
| Medium Temperature | -40-200℃ ; (WERD605): -200…400℃ |
| Process Pressure | -0.1-4Mpa ; WERD605: -0.1-40Mpa |
| Accuracy | ±5mm,±10mm |
| Frequency Range | 100MHz-1.8GHZ |
| Protection Degree | IP67 |
| Explosion-proof | ExiallCT6 |
| Signal Output | 4-20Ma+HART(two-wire) |
| Housing | Aluminum Alloy |
| Display | Four digital LCD ,can be programmed |
| Antenna | Single or double cable/rod ,coaxial rod |
| Antenna Material | SS304,SS316 or PTFE sealing for corrosive liquid |
| Power Supply | 2-wire(DC24V)/ 4-wire(DC24V /AC220V) |
Installation Precautions

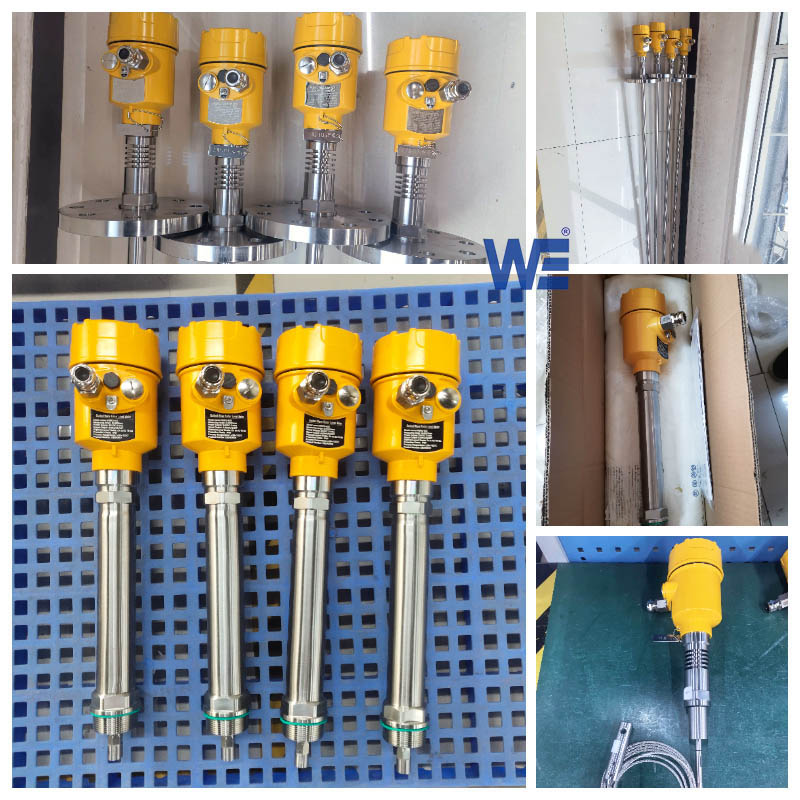

Welcome to our website for more information. All products are subject to strict factory inspection before shipment to customers. Our Company has rich experience at various industrial level measurement and control, contact with us for the one-stop solutions.
