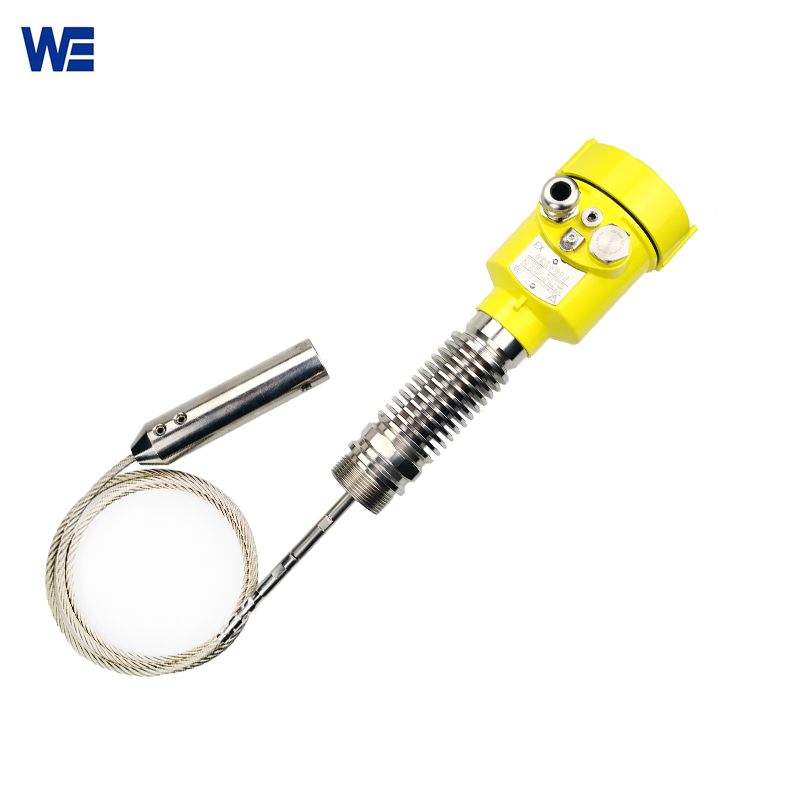

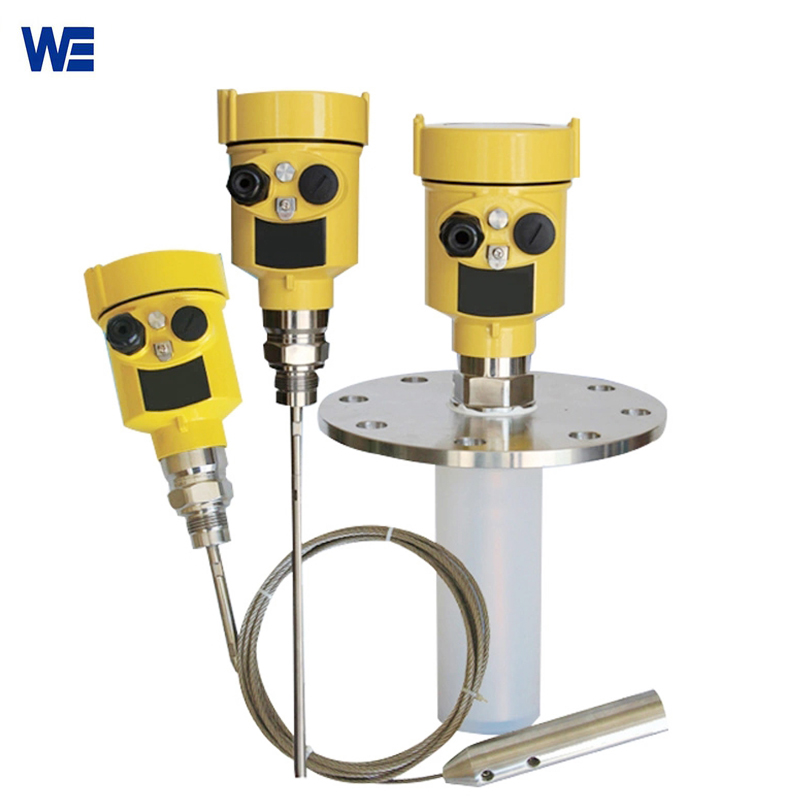

Guided Wave Radar Type Transmitter

  Guided Wave Radar Transmitter WERD605 has a stable performance and is resistant to external interference. Guided wave radar transmitters WERD605 are typically used in high-temperature and high-pressure environments. Guided wave radar transmitter can be used in an environment up to 400 degrees.

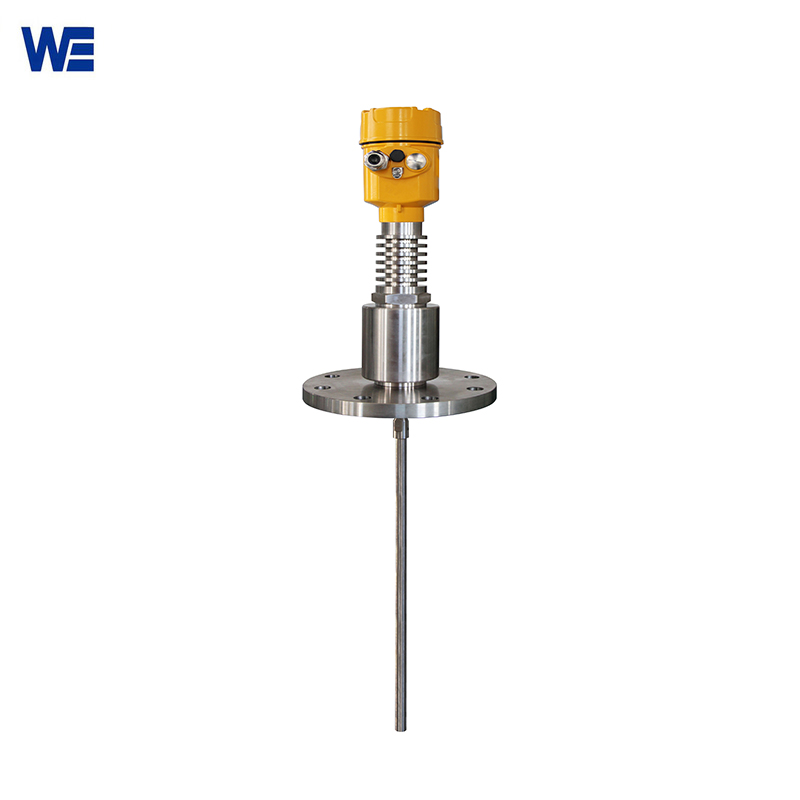

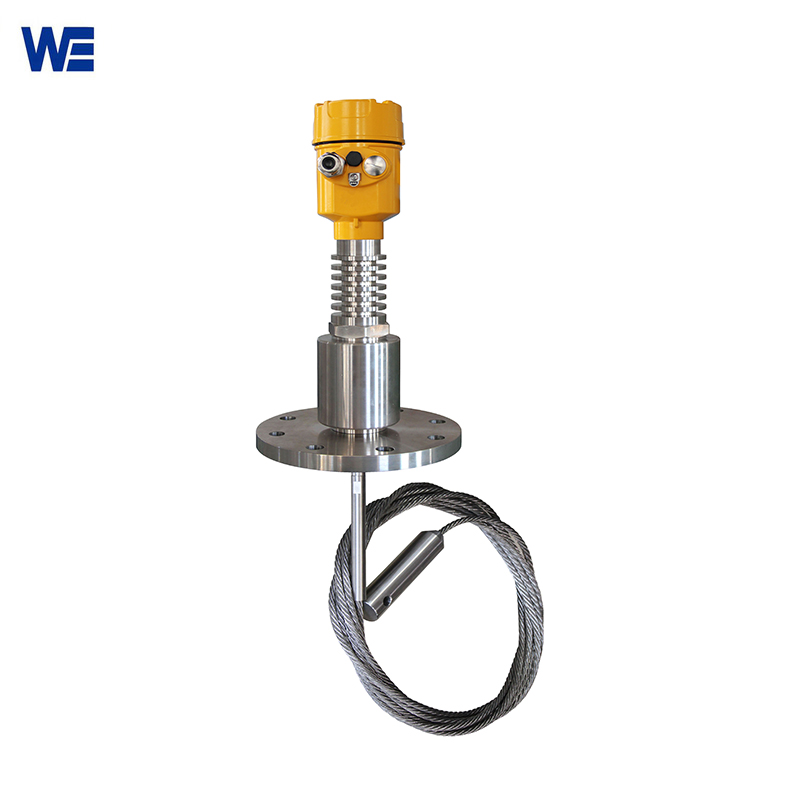

   The WERD605 guided wave radar type transmitter transmits its radar signal down a wave guide, which lowers signal loss and the amount of false response signals that are collected. The signal is more consistent and of higher quality. The high-temperature type GWR transmitter seems larger in terms of both the section above the flange and the space between the upper and lower components. Both flow meters and high temperature radar level gauges frequently use this architecture.

Click here to view more high temperature level gauges

 Features Of Guided Wave Level Transmitter WERD605:

• Applicable medium: liquid, especially liquid in high temperature and high pressure environment
• Application: Sealed tank, high pressure liquid measurement
• Explosion-proof certification: Exia I IC T6 Ga/ Exd ia I IC T6 Gb
• Measuring range: 15m
• Antenna: single pole or single cable
• Measurement accuracy: ±10mm
•  Process temperature: (-200~400) °C
• Process pressure: (-0.1~40) MPa
• Signal output: (4~20) mA/HART
• Live display: four-digit LCD programmable
• Power supply: two-wire system (DC24V) / four wire system (DC24V/AC220V)

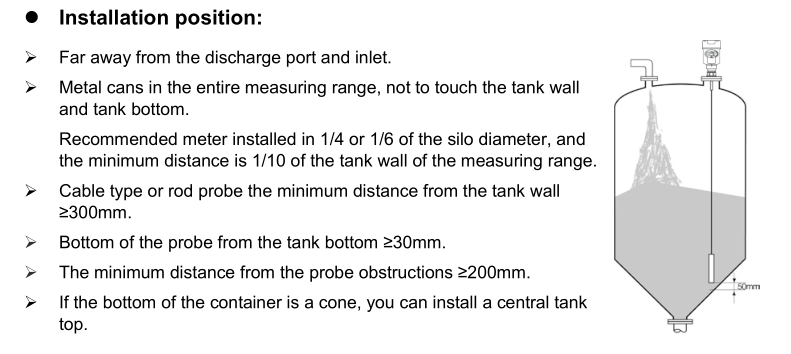

Installation Guidance:
