High Performance Guided Wave Radar Level Sensor
 High performance Guided wave radar level sensor, also known as GWR level meter, is a popular device used for measuring fluid or solid levels in industries like chemical, oil and gas, water treatment, power, and food and beverage.
What Are The Advantages Of Guided Wave Radar Level Sensor Produced By Wepower Electronic?

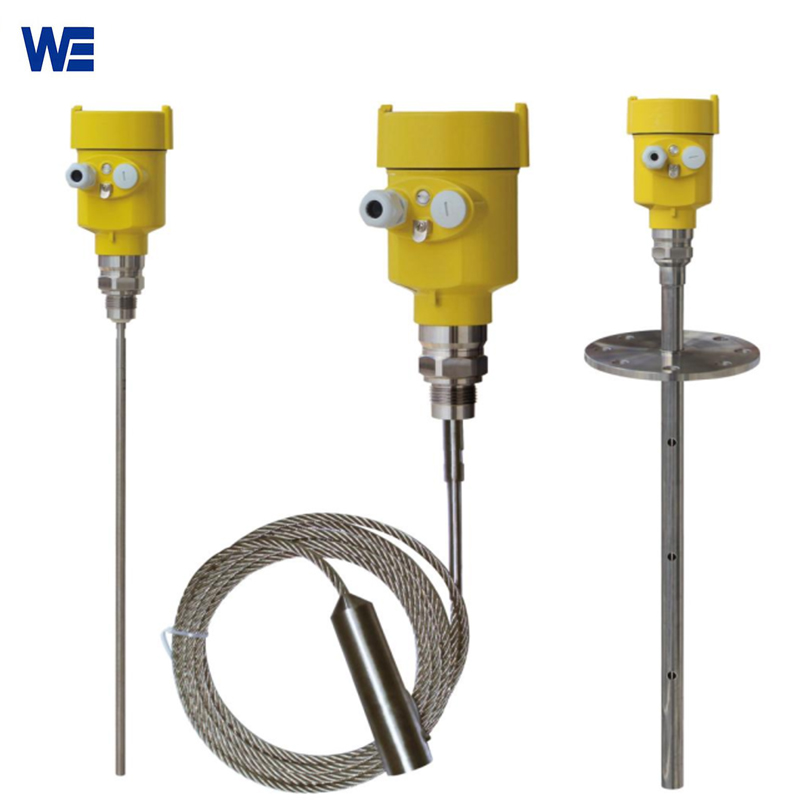

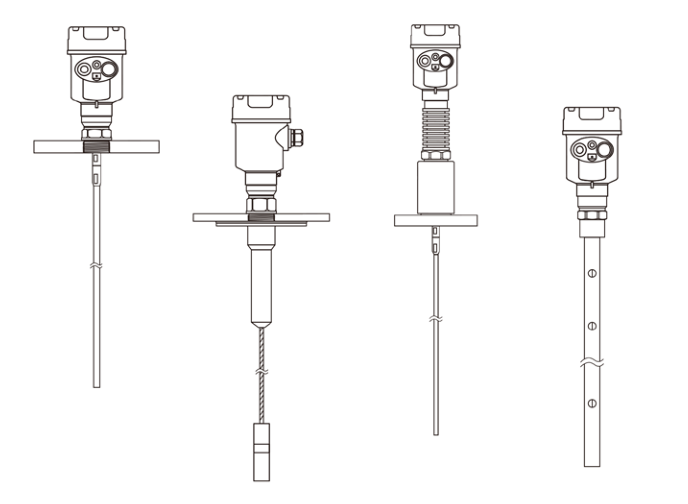

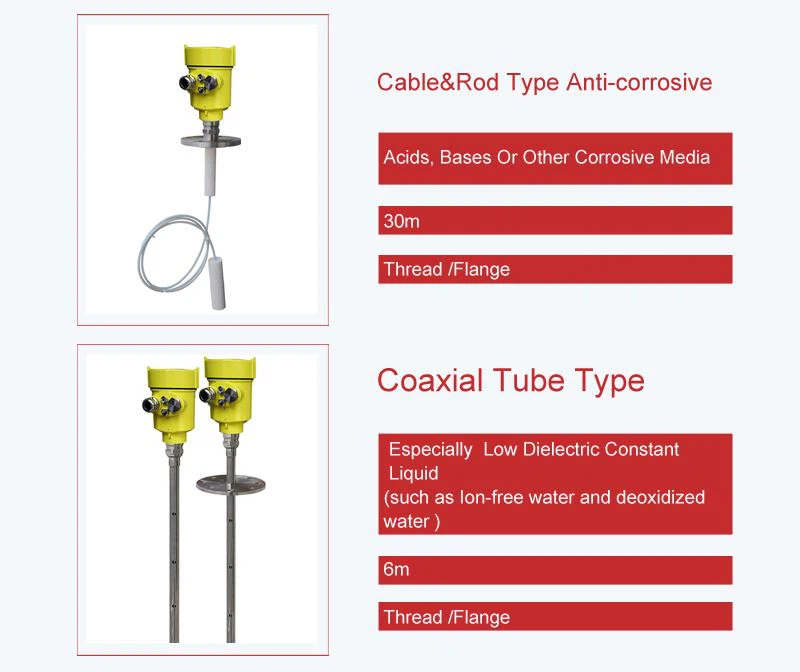

Guided Wave Radar Level Sensors WERD-60X Series come in various designs and configurations to suit different application needs.
The key advantage of high performance guided wave radar level sensor is their ability to function in harsh process conditions, such as high temperatures, high pressures, and corrosive fluids. GWR level meters offer compelling value in terms of cost, performance, and functionality. It is not surprising that guided wave radar technology is becoming popular in a variety of industries.
We also have non-contact radar level meter products.
Parameters:

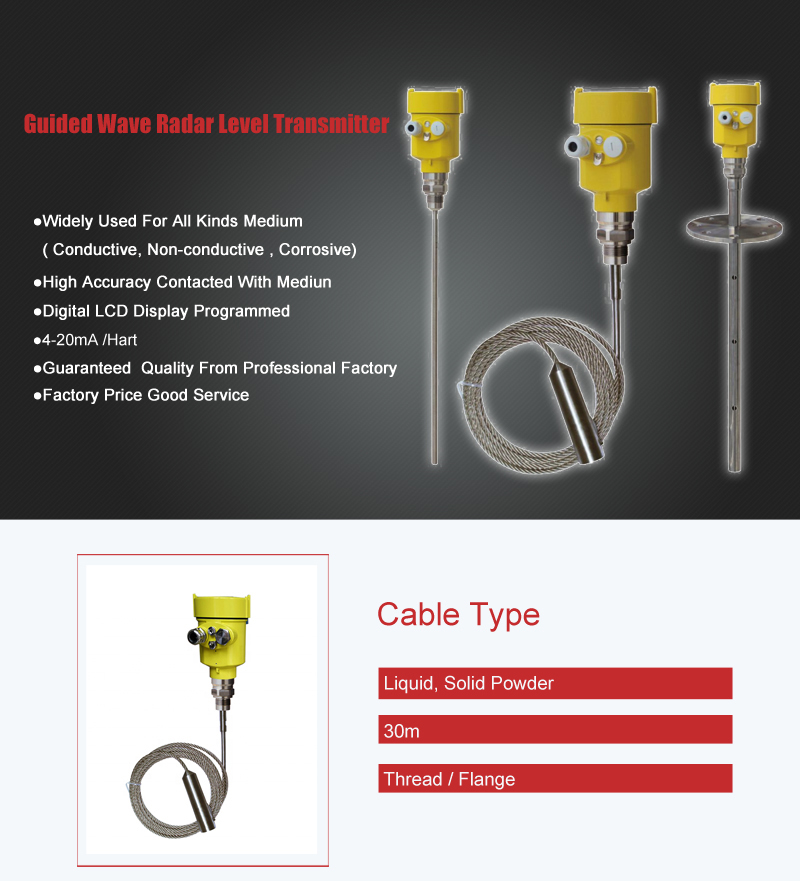

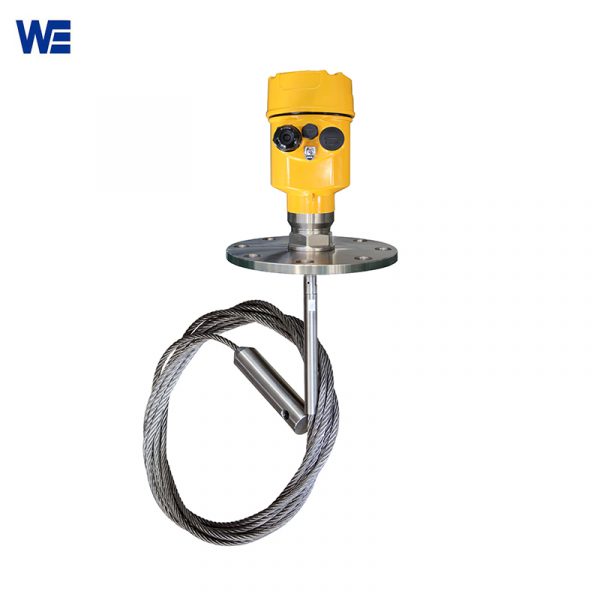

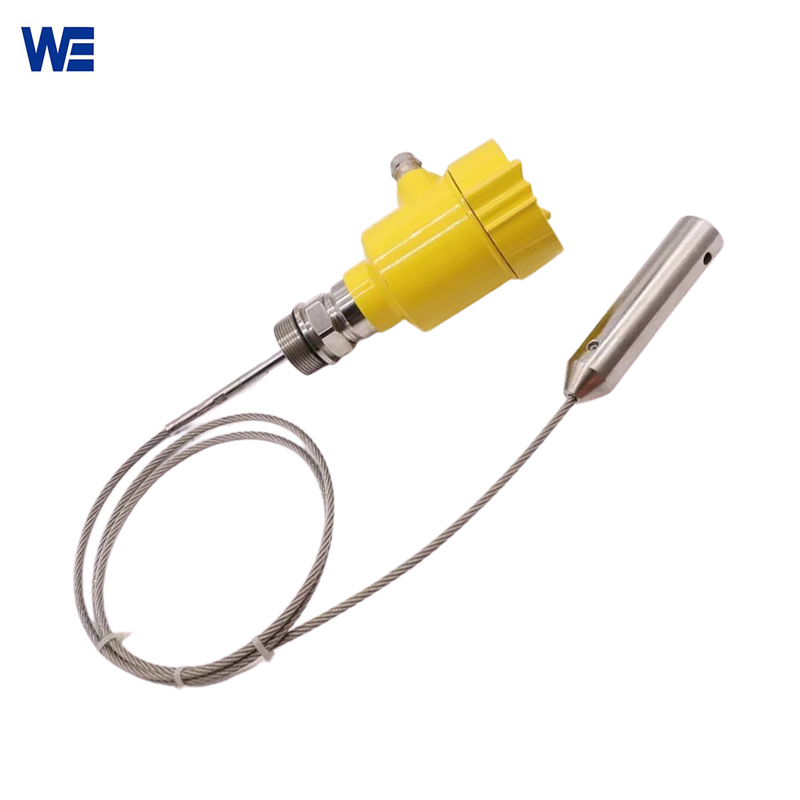

WERD-60X Series Cable Type
| Application | liquid, powder, solid particle |
| Model | WERD601/602/603/604/605 |
| Measurement range | 30m |
| Process Connection | thread, flange |
| Medium Temperature | -40…250℃, (WERD605): -200…400℃ |
| Process Pressure | -0.1-4Mpa, (WERD605): -0.1-40Mpa |
| Accuracy | ±10mm |
| Frequency Range | 100MHz-1.8GHZ |
| Protection Degree | IP67 |
| Explosion-proof | ExiallCT6 |
| Signal Output | 4-20mAHART(two-wire) |
| Housing | Aluminum Alloy |
| Display | Four digital LCD ,can be programmed |
| Antenna | Single or double cable |
| Antenna Material | Standard or PTFE sealing for corrosive liquid |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V） |

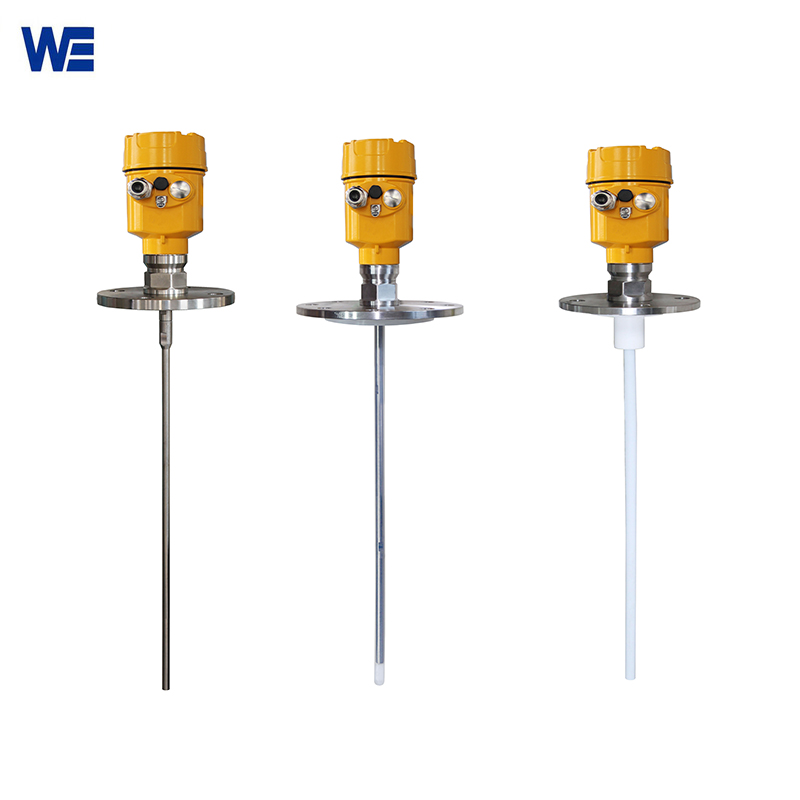

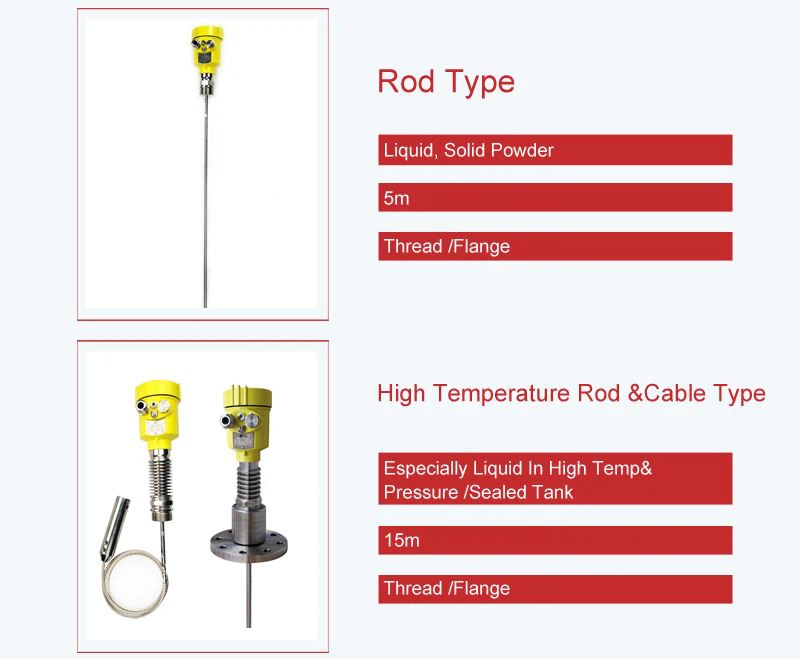

WERD-60X Series Rod Type:
| Application | liquid, powder, solid particle |
| Model | WERD601/602/603/604/605 |
| Measurement range | 6m |
| Process Connection | thread, flange |
| Medium Temperature | -40-250℃, (WERD605): -200…400℃ |
| Process Pressure | -0.1-4Mpa, (WERD605): -0.1-40Mpa |
| Accuracy | ±10mm |
| Frequency Range | 100MHz-1.8GHZ |
| Protection Degree | IP67 |
| Explosion-proof | ExiallCT6 |
| Signal Output | 4-20mAHART(two-wire) |
| Housing | Aluminum Alloy |
| Display | Four digital LCD ,can be programmed |
| Antenna | Single rod or Coaxial Tube |
| Antenna Material | Standard rod / PTFE sealing for corrosive liquid |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V） |
Welcome to our website for more information. All products are subject to strict factory inspection before shipment to customers. Our Company has rich experience at various industrial level measurement and control, contact with us for the one-stop solutions.
