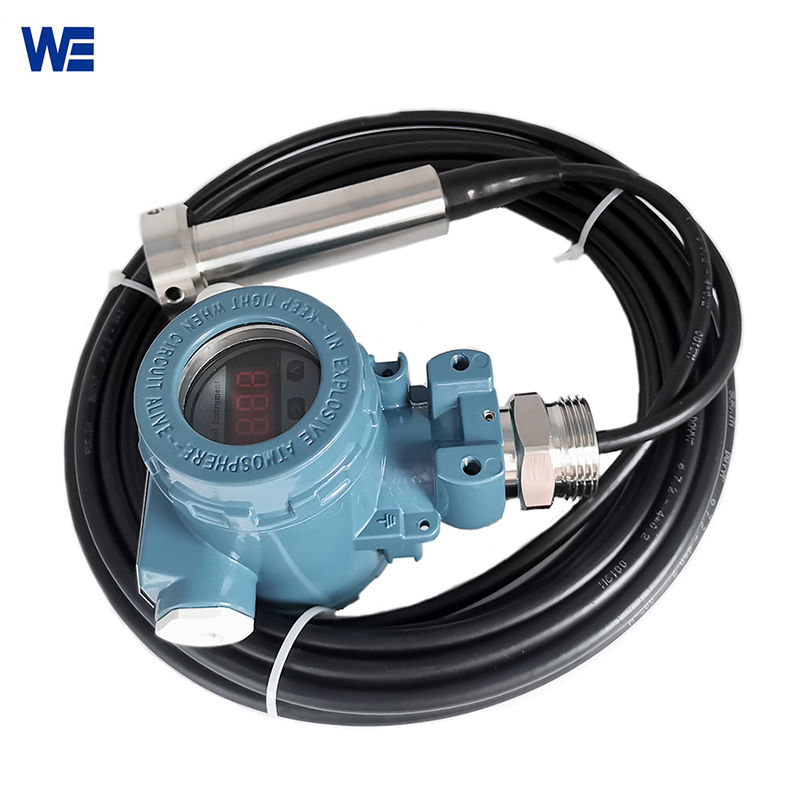

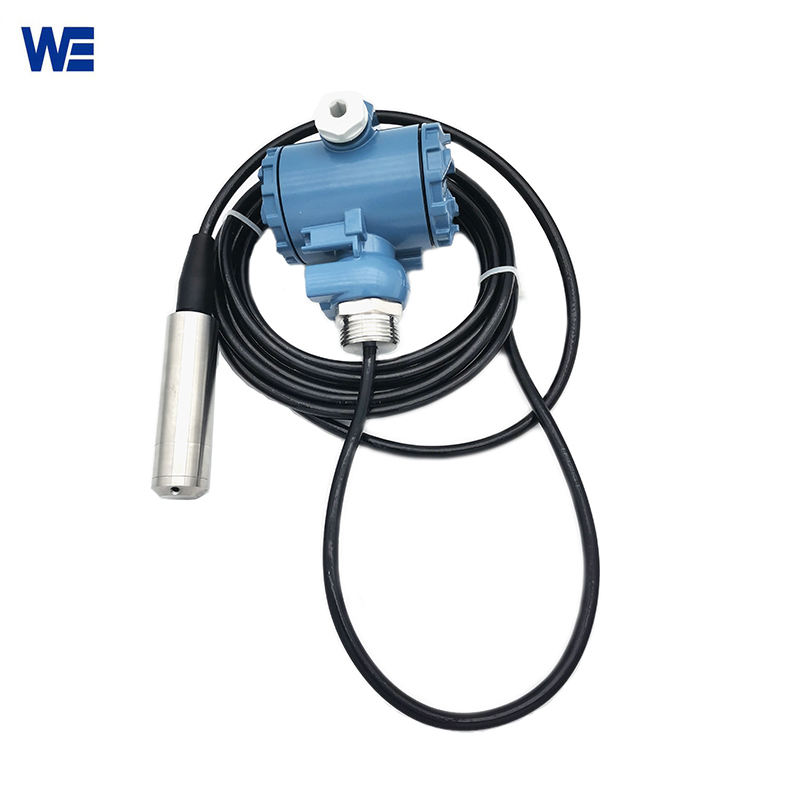

Hydrostatic Submersible Level Transmitter

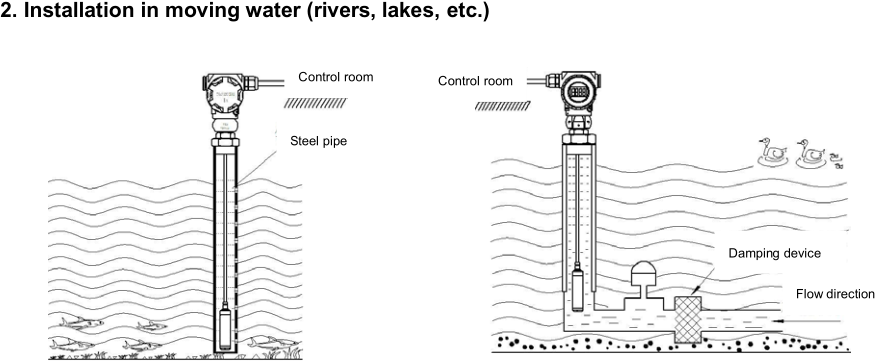

Hydrostatic submersible level transmitter can measure the level of water, well water, sewage and even dynamic water such as rivers or streams. And the output signal is 4-20mA.
Features of Hydrostatic Submersible Level Transmitter:
Hydrostatic Submersible Level Transmitter is a pressure transmitter that measures liquid level. Additionally, hydrostatic submersible level transmitter is capable of measuring the amount of sewage, well water, and even dynamic water like rivers and streams. Systems and industries like metallurgy, electric power, medicines, water supply and drainage, and environmental protection can benefit from it.
The Hydrostatic Submersible Level Transmitter has a compact structure, simple adjustment and flexible installation, providing users with ease of use, convenience, economy and durability.
| Model | KSL Hydrostatic Submersible Level Transmitter |
| Measuring Range | 0~0.5~500m H2O |
| Power supply | 12~36VDC (Standard 24VDC) |
| Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
| Accuracy | 0.2%F.S; 0.5%FS |
| Response Time | ≤1ms (up to 90%FS) |
| Long-term Stability | ±2F.S/Year |
| Medium Temperature | -20~85℃ |
| Working Temperature | -40~80℃ |
| Overload Capacity | 200%F.S |
| Insulation Resistance | 100MΩ/250VDC |
| Sensitivity Drift | ±2%F.S |
| Zero Drift | ±2%F.S |
| Protection | IP68 |
| Measurin Medium | Various medium which is compatible with SS304 |
| Mechanical Vibration | 20g (20~5000Hz) |
| Impact | 100g (11MS) |
| Material | Junction box: Low content Cu-Al alloy
Probe: Stainless steel Cable: Polyurethane cable |

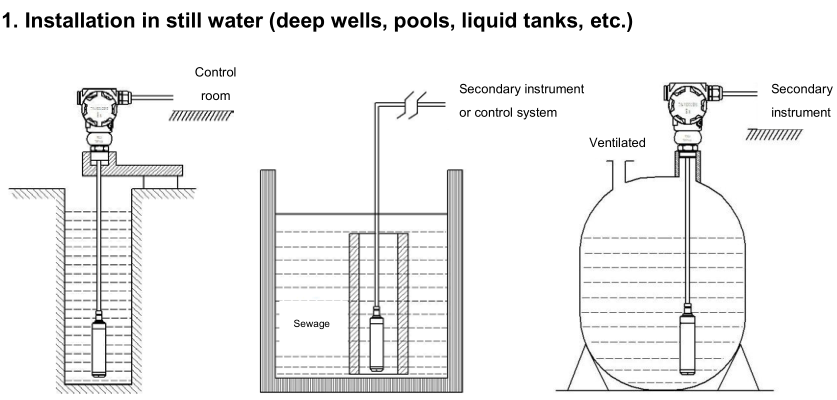

| Application | Static liquid level, Liquid tank, Sewage water, Well, Lake, etc. |
| Model Code KSL | Specification | |||||||||
| Type | 1 | Cable Type | ||||||||
| 2 | Rod Type | |||||||||
| Process Connecting | T | Thread | ||||||||
| N | Flange | |||||||||
| Y | Other | |||||||||
| Wetted Material | 1 | NBR (Black color) (standard option) | Cable Type | |||||||
| 2 | Stainless steel cable | |||||||||
| 3 | SS304 | Rod Type | ||||||||
| 4 | SS316 | |||||||||
| Explosion-proof | E | Without Explosion-proof | ||||||||
| F | Explosion-proof Exia ⅡCT6 | |||||||||
| Display | J | Without Display | ||||||||
| K | With Display | |||||||||
| Signal Output | M | 4-20Ma | ||||||||
| W | 1-5V /0-5V/0-10V | |||||||||
| / | Range （mm） | |||||||||
| / | Liquid and Density （g/cm3） | |||||||||
