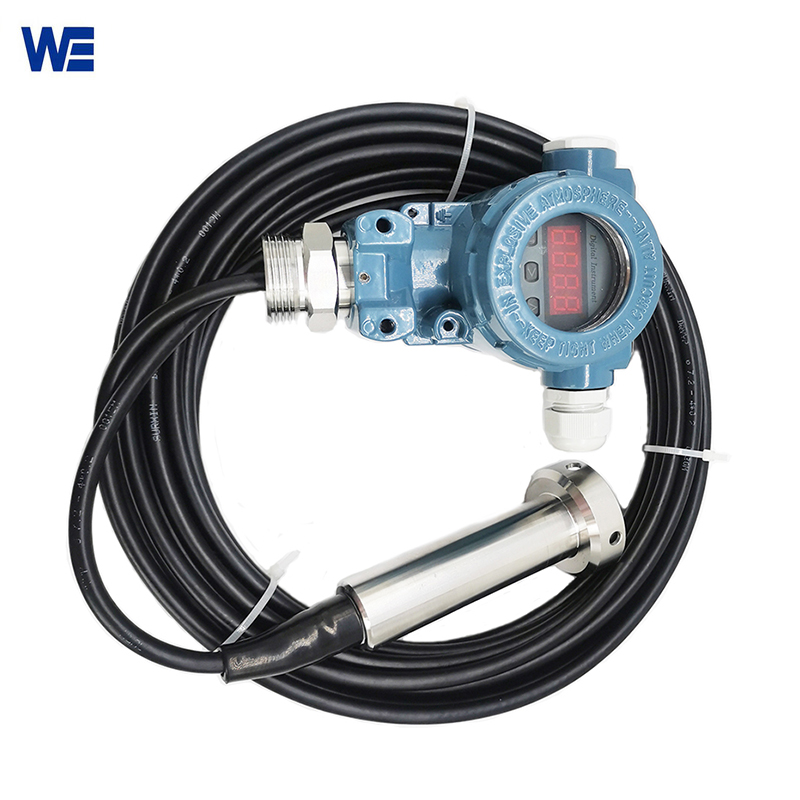

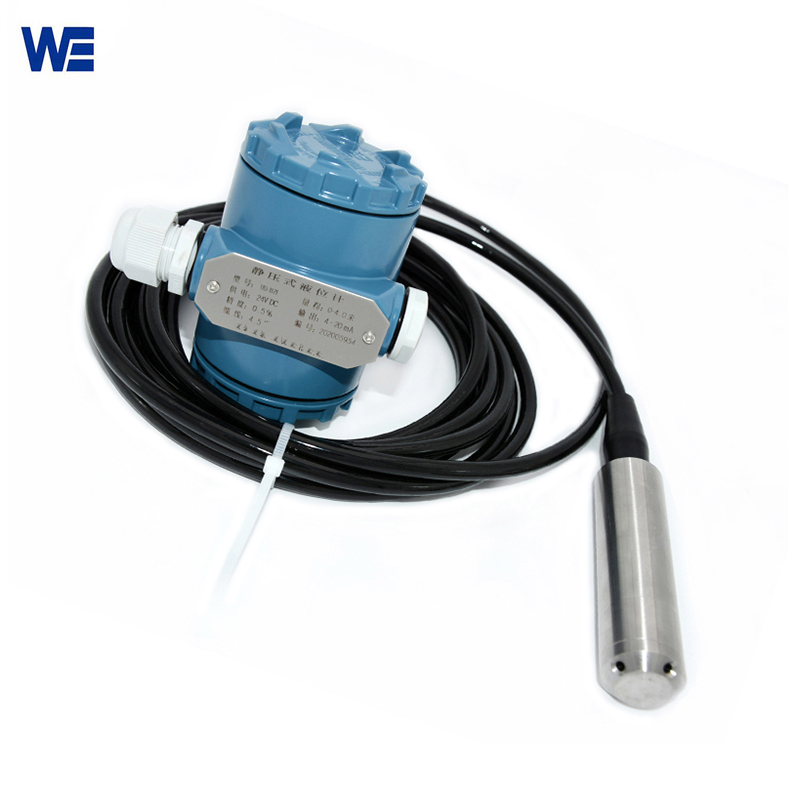

Submersible Level Transmitter
The submersible level transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon sensitive elements to convert the static pressure into an electrical signal.
Measurement Principles And Use Of Submersible Level Transmitters:
The Submersible Level Transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon sensitive elements to convert the static pressure into an electrical signal. The sensor part of the Submersible Level Transmitter can be directly poured into the liquid, and the transmitter part can be fixed with a flange or a bracket, which is extremely convenient to install and use. The height from the end of the water level transmitter to the water surface can be accurately measured by directly putting it into the container or water body, and the water level value can be output to the outside through a 4-20mA current signal. If you are in need of Submersible Level Transmitters, contact Wepower quickly.
| Model | KSL Submersible Level Transmitter |
| Measuring Range | 0~0.5~500m H2O |
| Power supply | 12~36VDC (Standard 24VDC) |
| Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
| Accuracy | 0.2%F.S; 0.5%FS |
| Response Time | ≤1ms (up to 90%FS) |
| Long-term Stability | ±2F.S/Year |
| Medium Temperature | -20~85℃ |
| Working Temperature | -40~80℃ |
| Overload Capacity | 200%F.S |
| Insulation Resistance | 100MΩ/250VDC |
| Sensitivity Drift | ±2%F.S |
| Zero Drift | ±2%F.S |
| Protection | IP68 |
| Measuring Medium | Various medium which is compatible with SS304 |
| Mechanical Vibration | 20g (20~5000Hz) |
| Impact | 100g (11MS) |
| Material | Junction box: Low content Cu-Al alloy
Probe: Stainless steel Cable: Polyurethane cable |
| Application | Static liquid level, Liquid tank, Sewage water, Well, Lake, etc. |
| Model Code KSL | Specification | |||||||||
| Type | 1 | Cable Type | ||||||||
| 2 | Rod Type | |||||||||
| Process Connecting | T | Thread | ||||||||
| N | Flange | |||||||||
| Y | Other | |||||||||
| Wetted Material | 1 | NBR (Black color) (standard option) | Cable Type | |||||||
| 2 | Stainless steel cable | |||||||||
| 3 | SS304 | Rod Type | ||||||||
| 4 | SS316 | |||||||||
| Explosion-proof | E | Without Explosion-proof | ||||||||
| F | Explosion-proof Exia â…¡CT6 | |||||||||
| Display | J | Without Display | ||||||||
| K | With Display | |||||||||
| Signal Output | M | 4-20Ma | ||||||||
| W | 1-5V /0-5V/0-10V | |||||||||
| / | Range （mm） | |||||||||
| / | Liquid and Density （g/cm³ ） | |||||||||
