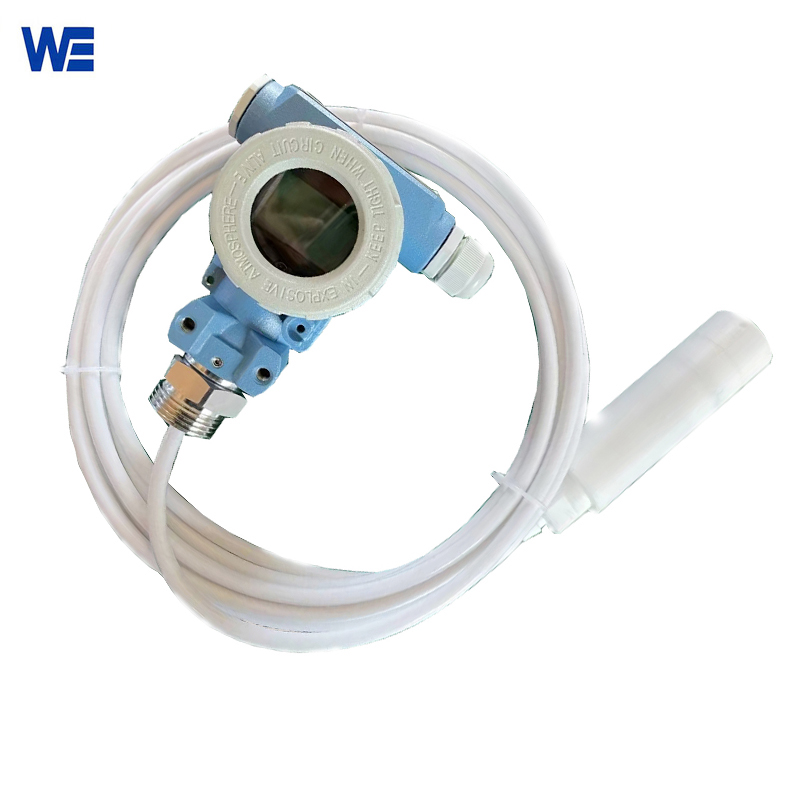

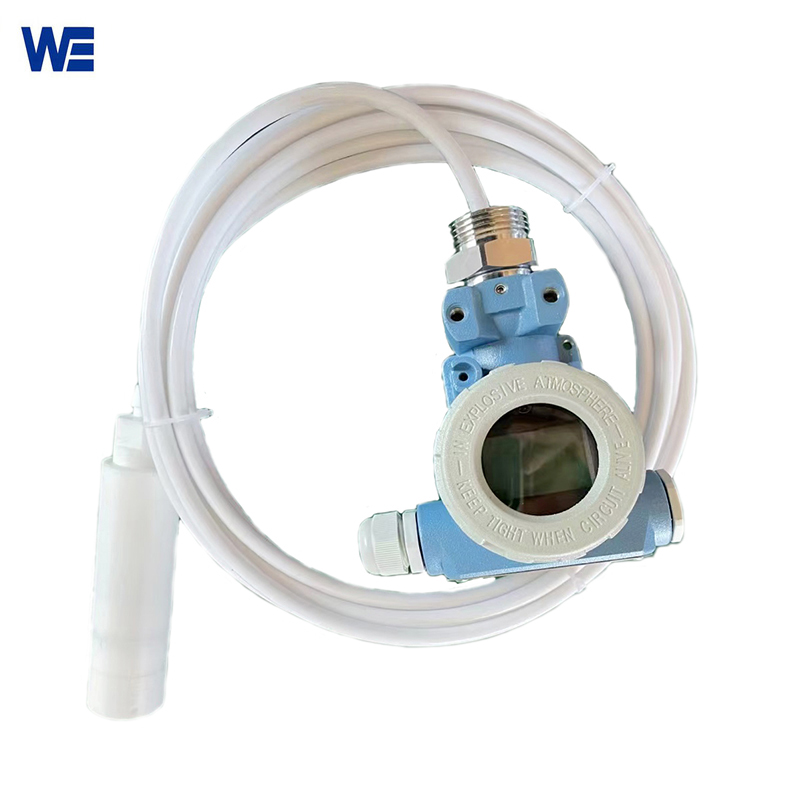

Level Transmitter Hydrostatic Type
The Level transmitter hydrostatic type is a contact sensor, but its difference from the traditional submersible level gauge is that its sensor does not directly contact the medium.
The Level Transmitter Hydrostatic Type is a contact sensor, but its difference from the traditional submersible level gauge is that its sensor does not directly contact the medium, but changes in the liquid level of the air in the pressure guide tube are transmitted to the sensor. This avoids clogging of the sensor and extends the service life of the instrument. Level Transmitter Hydrostatic Type of Wepower Electronic is sold well in many countries around the world. Welcome to contact us.
Different Features From Other Traditional Submersible Level Meters:Â Â
- The sensor is not in direct contact with the medium
- No clogging, no leakage probe design
- Various installation forms
- Protection against electromagnetic interference from lightning strikes
- Integrated junction box
- Display mode optional
| Model | KSLÂ Level Transmitter Hydrostatic Type |
| Measuring Range | 0~0.5~500m H2O |
| Power supply | 12~36VDC (Standard 24VDC) |
| Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
| Accuracy | 0.2%F.S; 0.5%FS |
| Response Time | ≤1ms (up to 90%FS) |
| Long-term Stability | ±2F.S/Year |
| Medium Temperature | -20~85℃ |
| Working Temperature | -40~80℃ |
| Overload Capacity | 200%F.S |
| Insulation Resistance | 100MΩ/250VDC |
| Sensitivity Drift | ±2%F.S |
| Zero Drift | ±2%F.S |
| Protection | IP68 |
| Measuring Medium | Various medium which is compatible with SS304 |
| Mechanical Vibration | 20g (20~5000Hz) |
| Impact | 100g (11MS) |
| Material | Junction box: Low content Cu-Al alloy
Probe: Stainless steel Cable: Polyurethane cable |
| Application | Static liquid level, Liquid tank, Sewage water, Well, Lake, etc. |
| Model Code KSL | Specification | |||||||||
| Type | 1 | Cable Type | ||||||||
| 2 | Rod Type | |||||||||
| Process Connecting | T | Thread | ||||||||
| N | Flange | |||||||||
| Y | Other | |||||||||
| Wetted Material | 1 | NBR (Black color) (standard option) | Cable Type | |||||||
| 2 | Stainless steel cable | |||||||||
| 3 | SS304 | Rod Type | ||||||||
| 4 | SS316 | |||||||||
| Explosion-proof | E | Without Explosion-proof | ||||||||
| F | Explosion-proof Exia â…¡CT6 | |||||||||
| Display | J | Without Display | ||||||||
| K | With Display | |||||||||
| Signal Output | M | 4-20Ma | ||||||||
| W | 1-5V /0-5V/0-10V | |||||||||
| / | Range （mm） | |||||||||
| / | Liquid and Density （g/cm³ ） | |||||||||
