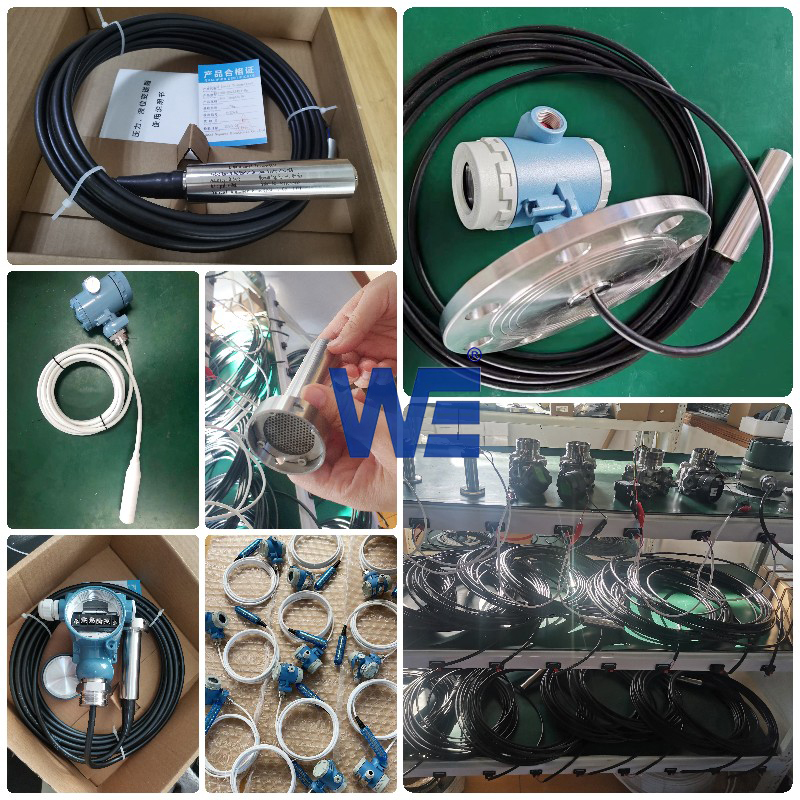

Submersible level transmitter produced by Wepower electronic

Hydrostatic submersible level transmitter Level transmitter hydrostatic type

Water Submersible Level Transmitter

Water submersible level transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert the static pressure into an electrical signal.

Category: Submersible Level Meter

Description

What’s The Measuring Principle Of Water Submersible Level Transmitter?

The water submersible level transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert the static pressure into an electrical signal. After temperature compensation and linearity correction, it is converted into 4-20mADC standard current signal output.

The sensor part of the water submersible level transmitter can be directly poured into the liquid, and the transmitter part of the water submersible level transmitter can be fixed with a flange or a bracket, which is extremely convenient to install and use. The height from the end of the water level gauge to the water surface can be accurately measured by directly putting it into the container or water body, and the water level value can be output to the outside through a 4-20mA current signal.

Features Of Water Submersible Level Transmitter:

Directly into the measured medium, it is very convenient to install and use.
Solid structure, no moving parts, high reliability, long service life, high-precision measurement can be made from water, oil to thick paste, and is not affected by the foaming, deposition, and electrical characteristics of the measured medium.
Wide range of temperature compensation.
Power reverse polarity protection and overload current limit protection.

Model	KSL Water Submersible Level Transmitter
Measuring Range	0~0.5~500m H2O
Power supply	12~36VDC (Standard 24VDC)
Output Signal	4~20mA; 0~5V; 1~5V; 0-10V; RS485
Accuracy	0.2%F.S; 0.5%FS
Response Time	≤1ms (up to 90%FS)
Long-term Stability	±2F.S/Year
Medium Temperature	-20~85℃
Working Temperature	-40~80℃
Overload Capacity	200%F.S
Insulation Resistance	100MΩ/250VDC
Sensitivity Drift	±2%F.S
Zero Drift	±2%F.S
Protection	IP68
Measuring Medium	Various medium which is compatible with SS304
Mechanical Vibration	20g (20~5000Hz)
Impact	100g (11MS)
Material	Junction box: Low content Cu-Al alloy Probe: Stainless steel Cable: Polyurethane cable
Application	Static liquid level, Liquid tank, Sewage water, Well, Lake, etc.
