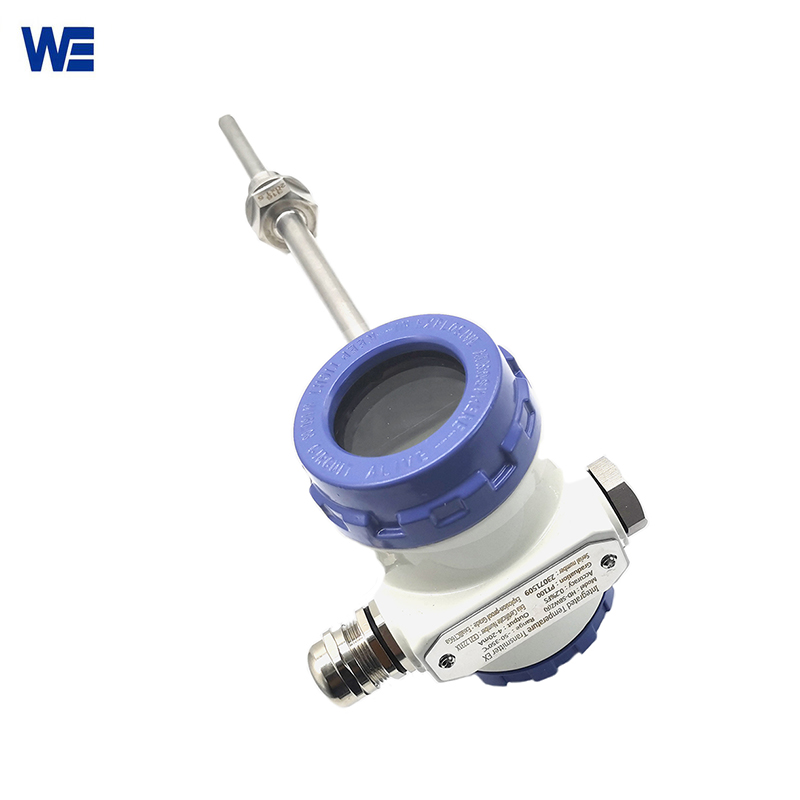

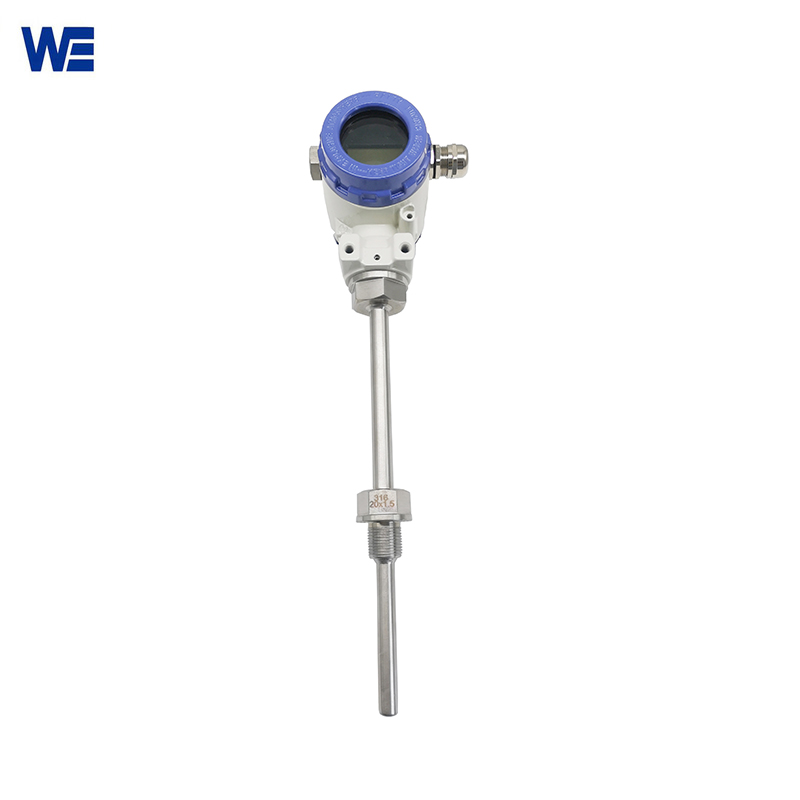

Integrated Temperature Transmitter
The integrated temperature transmitter integrates functions such as operational amplifier, voltage stabilization, constant current, linear correction, and nonlinear automatic compensation.
Working Principle&Advantages Of Integrated Temperature Transmitter Produced By Wepower Electronic:
In addition to transmitting vividly and being less impacted by interference, the transmitter component’s Integrated Temperature Transmitter integrates functions like operational amplifier, voltage stabilization, constant current, linear correction, etc. to enable long-distance signal transmission. To determine the temperature of the measured medium or control, the transmitter component processes the electrical signal produced by the temperature measuring element and outputs a standard signal of 4–20 mADC. This signal can be readily connected to a display device, analog adjustment device, or computer control system.
Through the HART modem, the Integrated Temperature Transmitter may manage information remotely, configure, monitor variables, calibrate, and perform maintenance on the transmitter’s model, graduation number, and range.
Parameters:
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |
| Product Name | Temperature Transmitter With Display |
| Explosion-proof grade | d∥BT4, d∥CT5 |
| Input | thermal resistance Pt100, Pt1000 (-200～600℃) |
| Thermocouple K, E, S, B, T, J, N | |
| Output | 4-20mA signal within the measuring range can be linear with the output resistance signal of the thermal resistance thermometer, can be linear with the input temperature signal of the thermal resistance thermometer. |
| 4-20Ma can be linear with the millivolt signal input by the thermocouple, It can also be linear with the input temperature signal of the thermocouple thermometer. | |

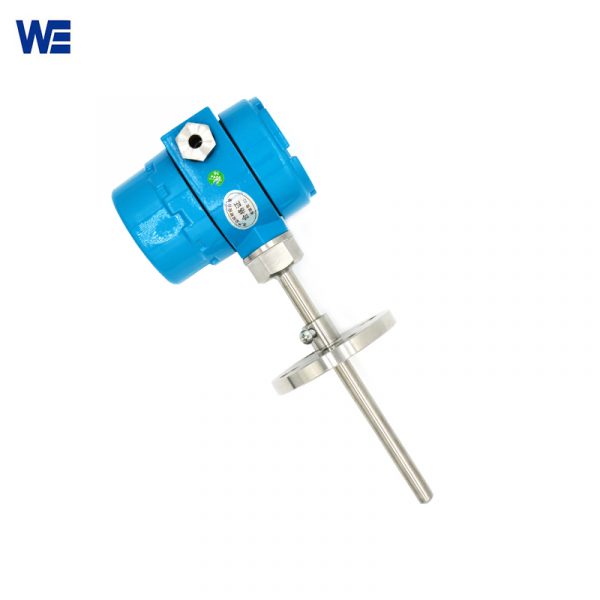

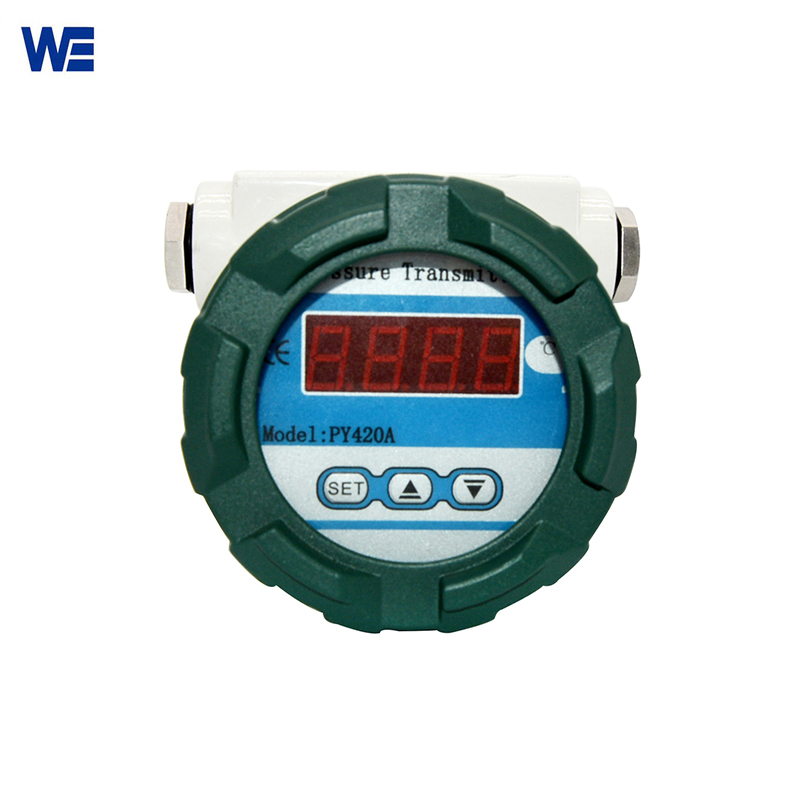

| Process Connecting | 1: No fixed device; 2: Fixing thread; 3: Movable flange; 4: Fixed flange; 5:Rectangular movable flange; 6: Taper thermowell and fixing thread |
| Basic error | ±0.2%, ±0.5% |
| Power Supply | 12-35VDC |
| Transmission method | Two-wire system |
| Electrical interface | M20x1.5, NPT1 / 2 |
| Measuring range | Thermocouple: 0~1300 degrees Celsius（0-1100℃for long time usage） |
| RTD : -200~500 ℃ | |
| Protecting tube material | 1Cr18Ni9Ti /SS304/SS316/SS316L/SS310S/ |
| Thermocouple Wire Dia | 2mm/2.5mm (Can be customized ) |
| Displaying | LED/LCD/ Without display |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
Installation Guidance:
