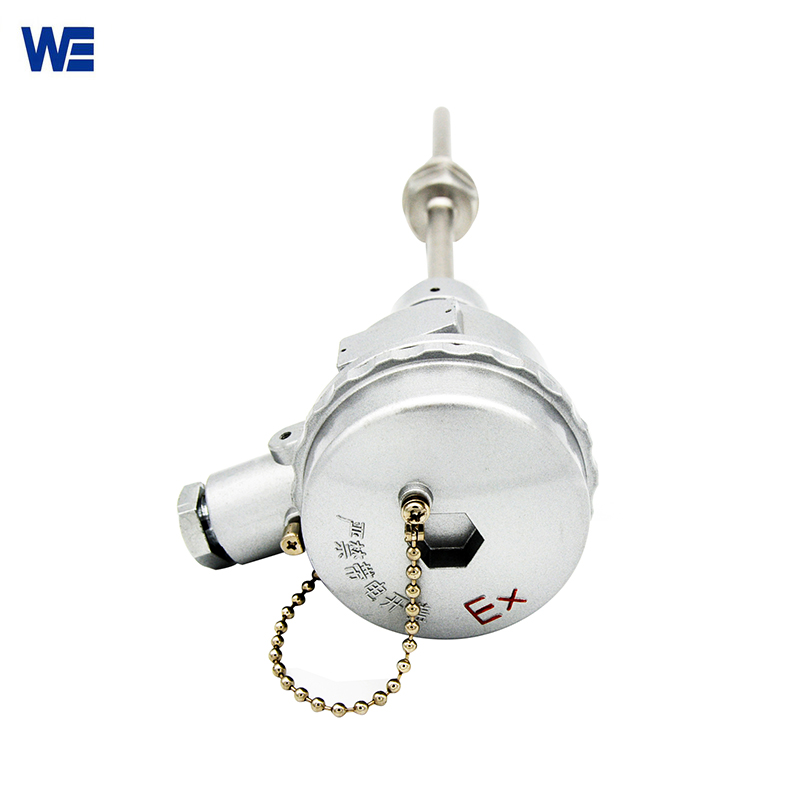

PT100 Resistance
Standard temperature range of PT100 resistance is from -200~500 ℃ ，the high temperature type PT100 resistance sensor range is -200～800℃. Colors and materials can be customized for you.
The resistance of PT100 Resistance will change with the change of temperature. PT100 means that its resistance is 100Ω at 0℃, and the resistance will increase at an approximately uniform rate as the temperature rises. Standard temperature range of PT100 Resistance Sensor is from -200~500 ℃ ，the high temperature type PT100 resistance range is -200～800℃. PT100 resistance produced by Wepower Electronic is equipped with high quality grade imported platinum resistance chip, using acid and alkali resistant, high temperature resistant wire, which is widely used in food ,refrigeration, medicine, machinery, rubber, biology, white electricity .
Wepower Electronic Provides High-quality Customized Services:
We can provide customized services for the materials and colors of the head housing. As long as you have requirements, we can do it.
Parameters:
| Product Name | PT100 Resistance |
| Ref No. | PT100 |
| Thermal element materials | Platinum |
| Accuracy Class | 1/3B
A B |
| Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Shock-resistant & Anti-leakage compression thread |
| Types of connections box | 1: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP67) 4: Round plug type 5: Flag plug type 6: Small Connection type 7: Compensation wire type |
| Diameter Sheath | Ø1,Ø3 ,Ø4,Ø5,Ø6,Ø8 |
| Measuring range | -200~800 degrees Celsius |
| Probe Size | 3, 4, 5, 6, 8mm |
| Probe material | SS304 |
Measuring Range And Tolerance
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200-+500℃ | B Grade | ±（0.30+0.005ltl） |
