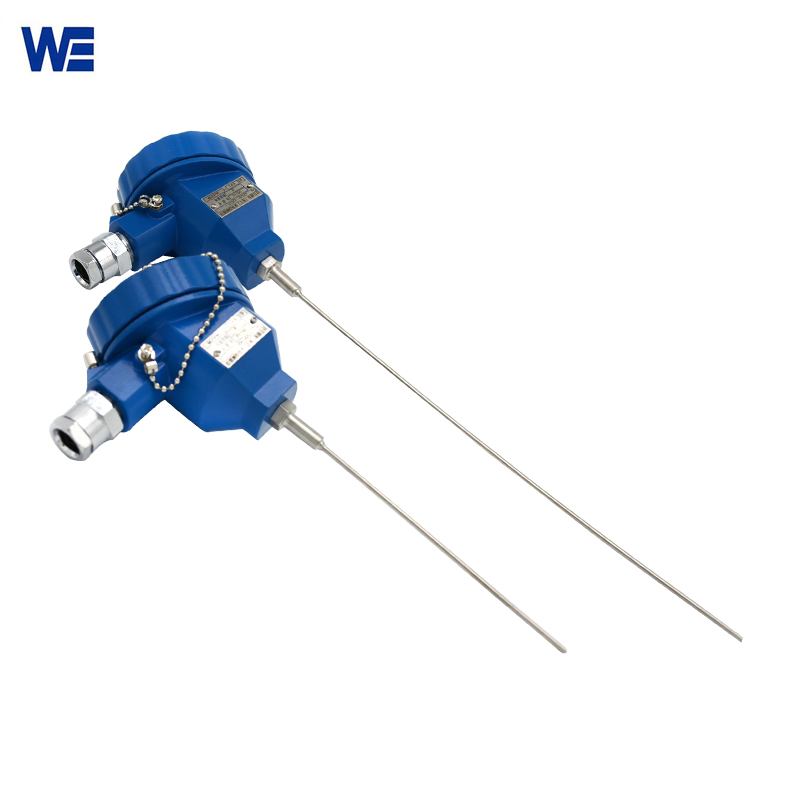

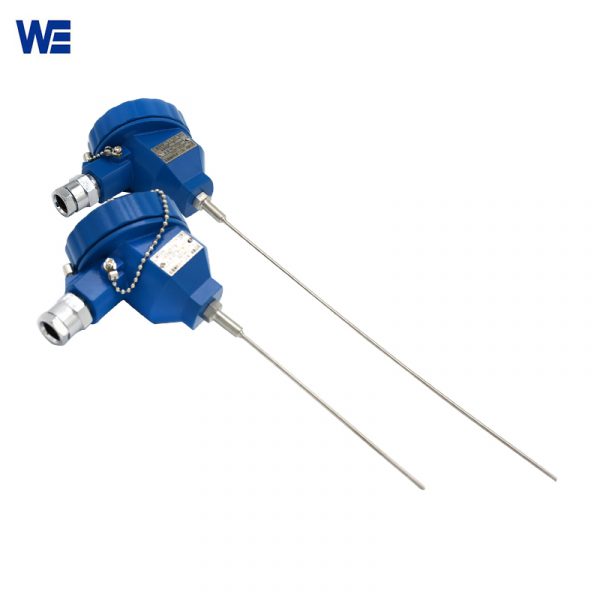

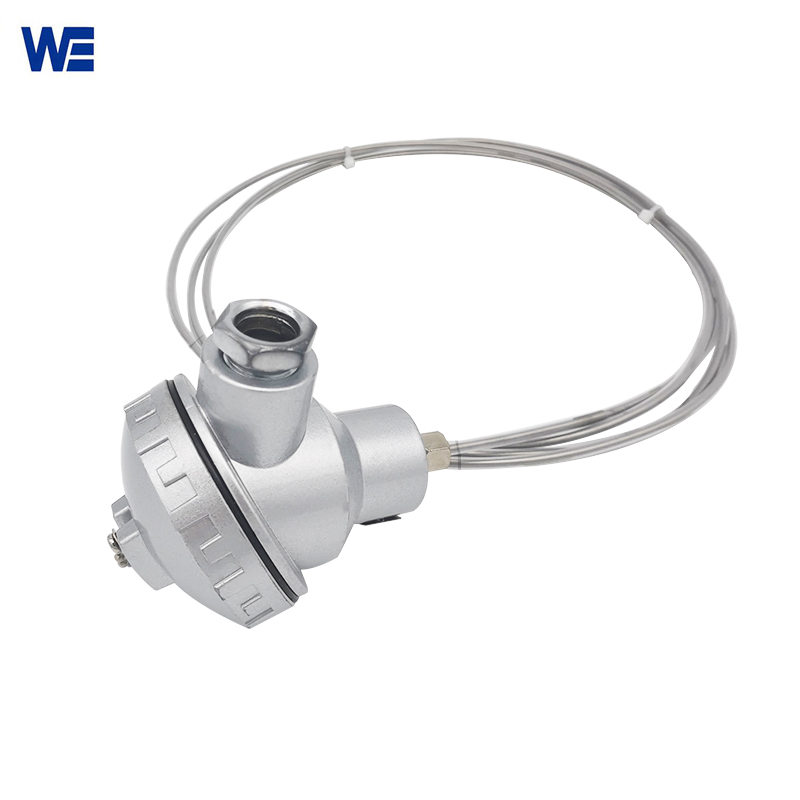

Armored Assembly RTD
Armored Assembly RTD has high mechanical strength, convenient replacement and vibration resistance for long life time in industrial temperature control process, which is widely used in food, refrigeration, medicine, machinery, rubber, biology, white electricity. The Armored Assembly Rtd produced by Wepower Electronic has the advantages of fast temperature measurement and high accuracy.
Working Principle Of Armored Assembly RTD:
Armored Assembly RTD is a type of temperature sensor that uses the property that a material’s resistance changes in tandem with its temperature. The working instrument will show the temperature value that corresponds to the resistance value as it changes.
Advantages Of Pt100 Temperature Transmitter, Produced By Wepower Electronic:

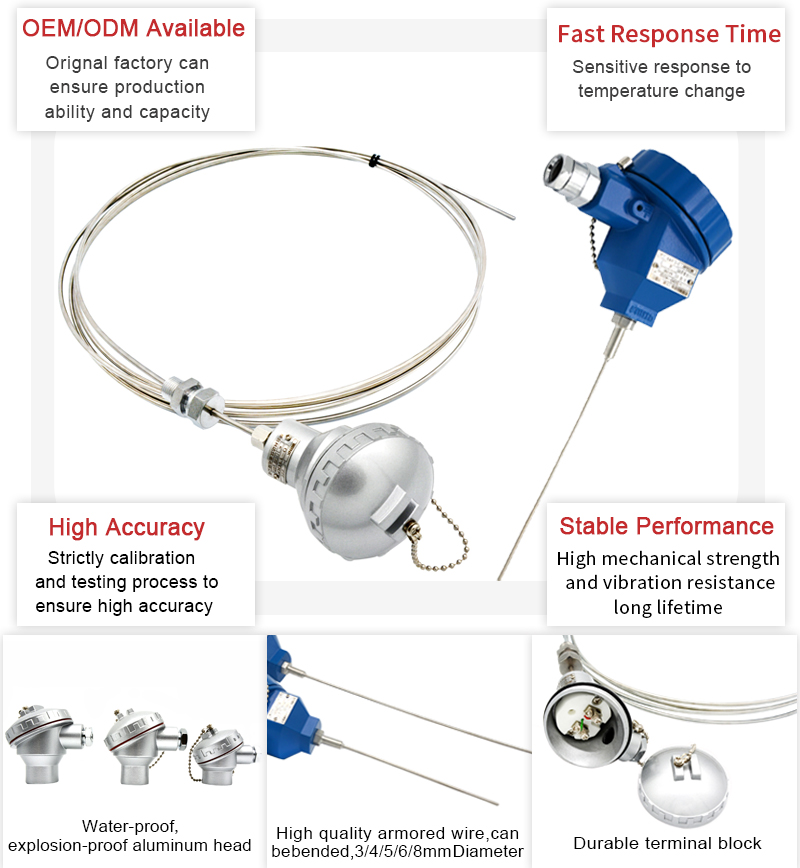

Armored Assembly RTD  produced by Wepower Electronic is equipped with high quality grade imported platinum resistance chip, using acid and alkali resistant, high temperature resistant wire, which is widely used in food ,refrigeration, medicine, machinery, rubber, biology, white electricity. Both PT100 Ω and PT1000 Ω elements are available; the armored sheath protecting tube diameters are Ø1, Ø3, Ø4, Ø5, Ø6, and Ø8. Wepower Electronic supports your customized requirements.
Parameters:
| Product Name | Armored Assembly RTD |
| Ref No. | PT100/PT500/PT1000 |
| Thermal Element Materials | Platinum |
| Explosion-proof grade | DIIBT4/ DIICT6 |
| Accuracy Class | 1/3B
A B |
| Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread |
| Types of connections box | 1: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP67)4:Round plug type5: Flag plug type6: Small Connection type7: Compensation wire type |
| Diameter of protective tube | Ø16 ,Ø12, Ø3, Ø4,Ø5, Ø6, Ø8 |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel |
| Measuring range | -200~500 degrees Celsius |
| Thread | 27*2 (6mm 8mm 10mm 12mm 16mm can be customized) |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200ÂÂ-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200ÂÂ-+500℃ | B Grade | ±（0.30+0.005 ltl） |
