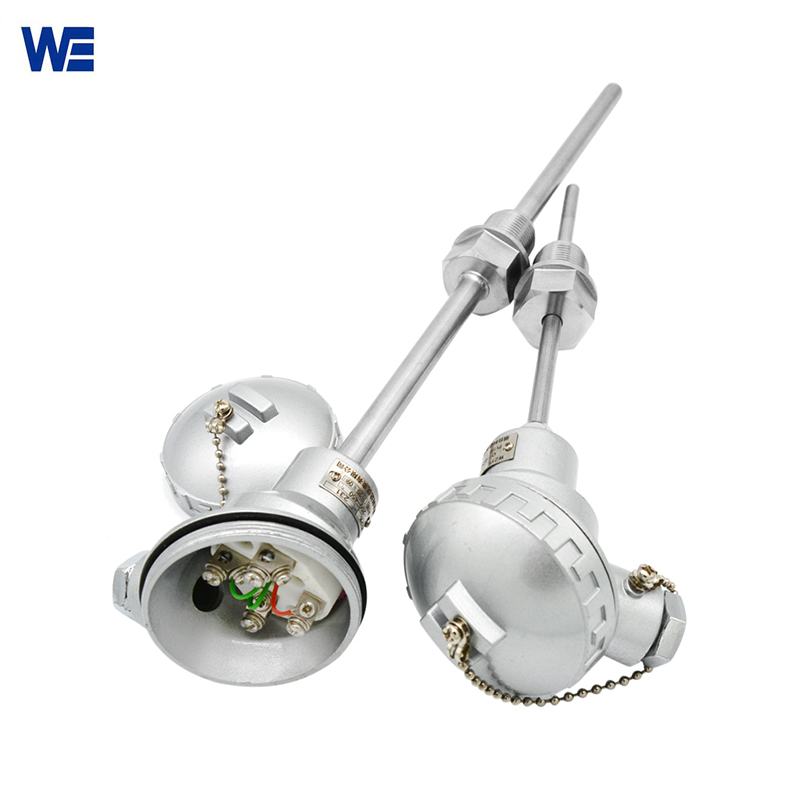

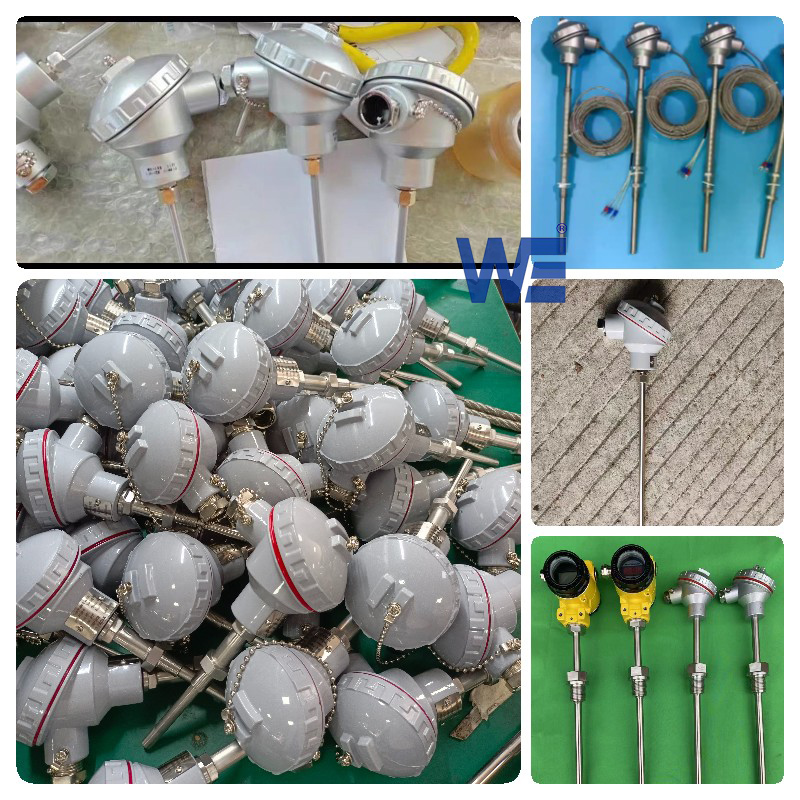

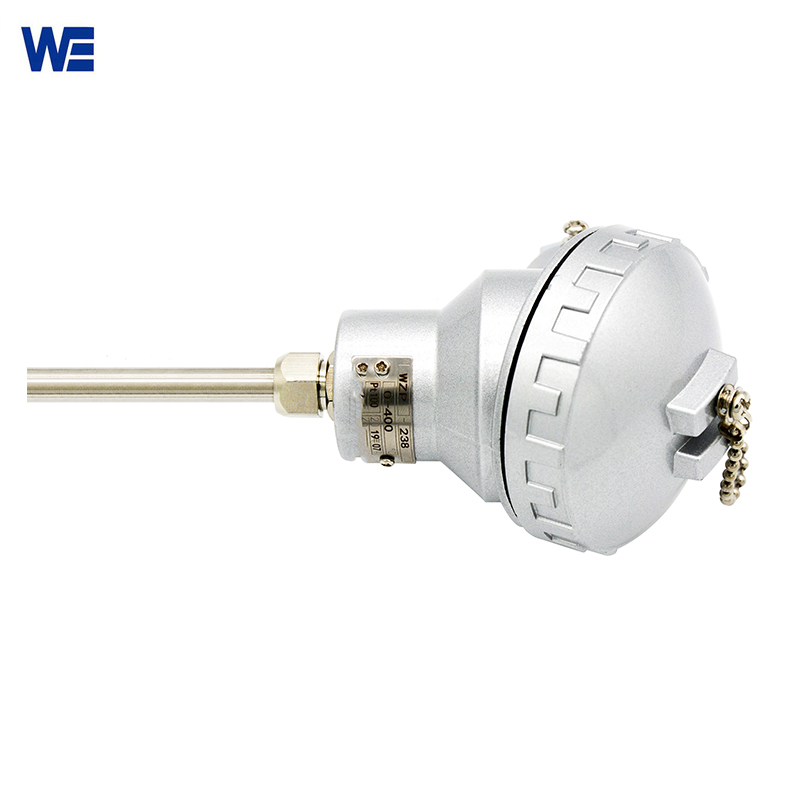

Assembly Thermal Resistance
Assembly Thermal Resistance is equipped with platinum sensor elements which change their electrical resistance as a function of temperature. A temperature transmitter can be installed directly in the connection head. Assembly Thermal Resistance with aluminum connecting heads, offering resistance to dust & moisture which is extremely important for various industrial sites, especially for heavy industrial and process applications.
Where Is Assembly Thermal Resistance Used?
Many different businesses employ Assembly Thermal Resistance. To guarantee product quality, assembly thermal resistance is implemented, particularly in the process industries (chemical and pharmaceutical, food processing). Assembly thermal resistance is employed in power plants to increase energy efficiency. They are employed in the oil and gas sector to keep an eye on production and refinery temperatures. Assembly thermal resistance is also crucial for regulating the temperature in water treatment facilities, automobile manufacturing, aerospace technologies, and heating, ventilation, and air conditioning systems.
Features of Assembly Thermal Resistance:
- Armored temperature sensing element, good anti-vibration performance;
- No need to compensate the wire, saving cost;
- High temperature measurement accuracy;
- Imported thin film resistor elements, reliable and stable performance.
Parameters:
| Product Name | Assembly thermal resistance |
| Ref No. | PT100/PT500/PT1000 |
| Thermal Element Materials | Platinum |
| Explosion-proof grade | DIIBT4/ DIICT6 |
| Accuracy Class | 1/3B
A B |
| Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread |
| Types of connections box | 1: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP67)4:Round plug type5: Flag plug type6:Small Connection type7: Compensation wire type |
| Diameter of protective tube | Ø16 ,Ø12, Ø3, Ø4,Ø5, Ø6, Ø8 |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel |
| Measuring range | -200~500 degrees Celsius |
| Thread | 27*2 (6mm 8mm 10mm 12mm 16mm can be customized) |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
