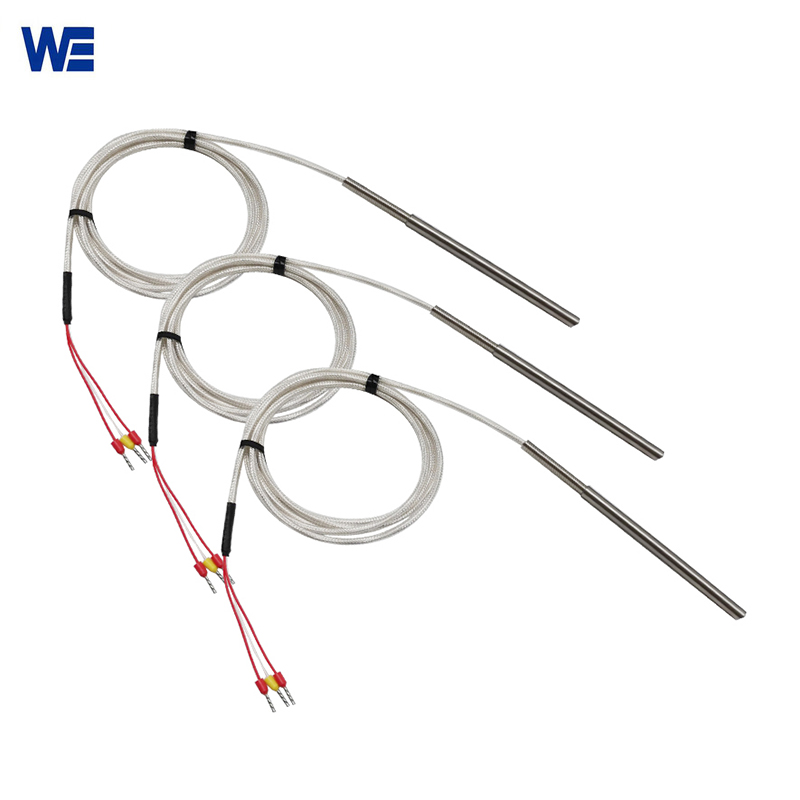

Pt100 Probe Temperature Sensor
The Pt100 Probe Temperature Sensor exhibits excellent precision, stability, and nonlinearity, making it appropriate for both neutral and oxidizing conditions. The higher the temperature, the smaller the resistance change rate. Compact size and adaptable installation are ideal for situations with limited application.
Advantages Of PT100 Probe Temperature Sensor:
The temperature-sensing element with metallic platinum (PT) as the temperature-sensing material is called platinum thermal resistance.The most commonly used platinum resistors are PT100 and PT1000. PT100 Probe Temperature Sensor has been used to measure temperature in laboratory and industrial processes for many years, and have developed a reputation for accuracy, repeatability, and stability. It also has the advantages of large output signal, stable display, high measurement accuracy, and wide measurement range.
Parameters:
| Name | PT100 probe temperature sensor |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm. 4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005 ltl） |
