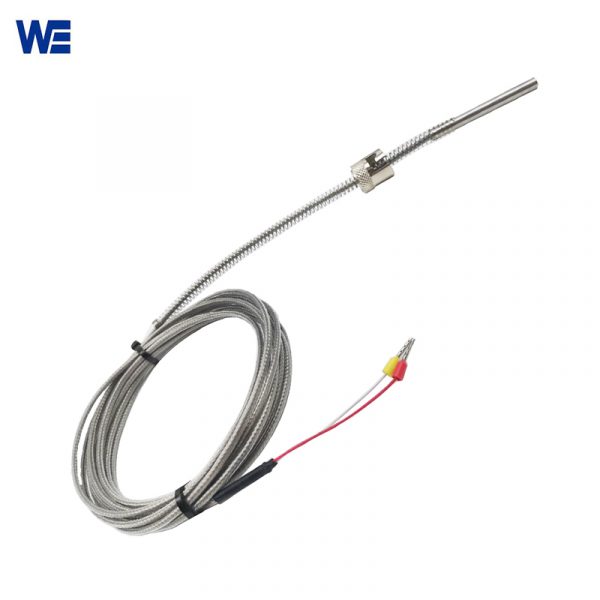

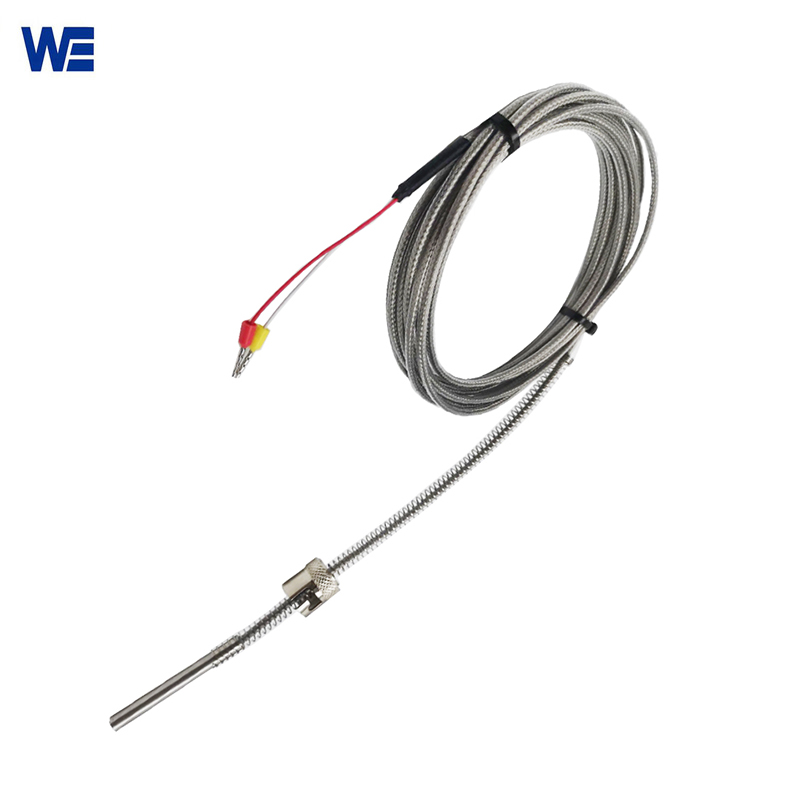

Compression Spring PT100 Probe

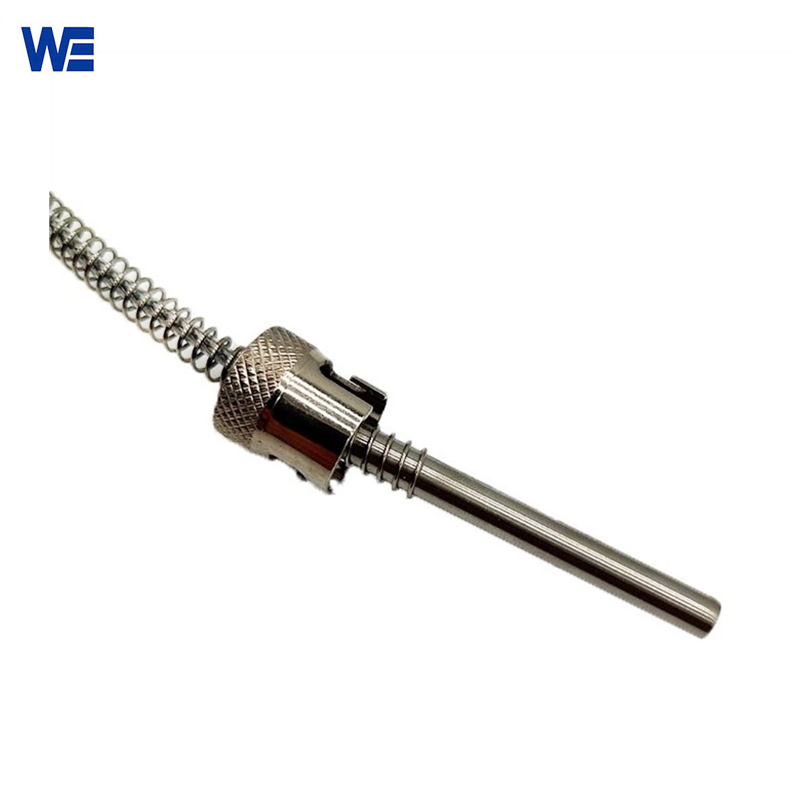

Compressed spring PT100 probes have the adjustable spring bayonet cap fitting for process fixing, the protection sheath probe varies from Φ4 to Φ 8, a variety of lead wire and cables available for options.
Professional Manufacturer:
Compressed  Spring PT100 Probe is a temperature measuring device. They are in one or more places with each other. The resistance effect of the lead wire can be effectively eliminated or even completely eliminated. Wepower Electronic is a proficient manufacturer of compression spring PT100 probes in China.These probes feature an adjustable spring bayonet cap fitting for process fixing, a protection sheath probe with a range of Φ4 to Φ8, and an assortment of lead wires and cables for customization. terminated using a range of connectors or stripped ends.
Parameters:
| Name | Â Compressed spring Pt100 probe |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm. 4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005 ltl） |
