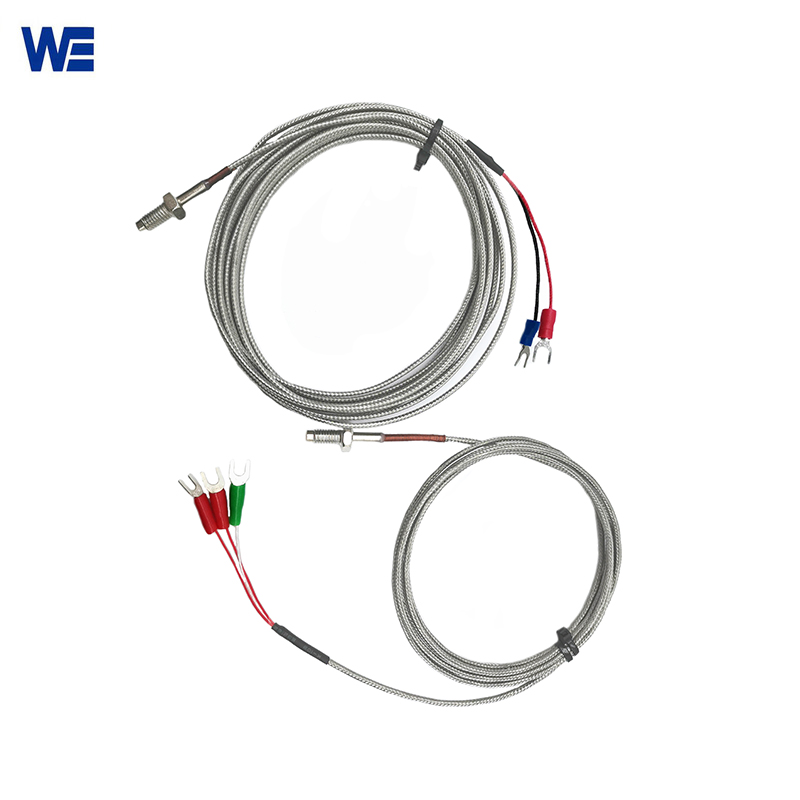

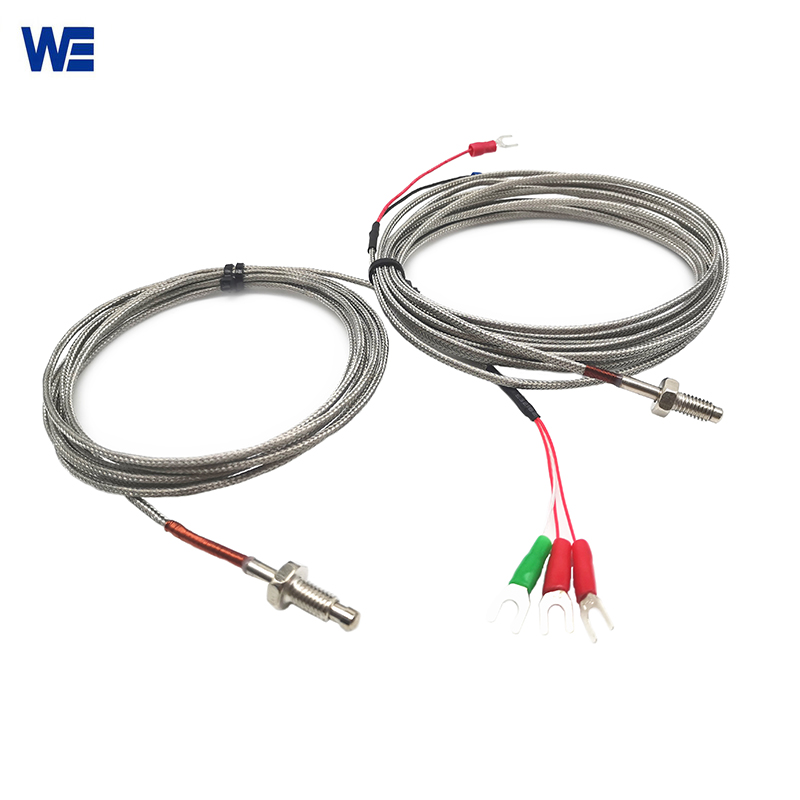

PT100 Surface Temperature Sensor
PT100 Surface Temperature Sensor is mainly used to measure the surface temperature of objects. The patch temperature sensor is attached to the surface of the object by screws or other fixing methods to achieve the ideal temperature measurement effect. PT100 Surface Temperature Sensor is suitable for measuring the surface temperature of steam turbine and motor bearing bushing or other frames.
Features And Advantages Of PT100 Surface Temperature Sensor:
PT100 Surface Temperature Sensor is mainly used to measure the surface temperature of objects. The patch temperature sensor is attached to the surface of the object by screws or other fixing methods to achieve the ideal temperature measurement effect. The PT100 Surface Temperature Sensor has a large contact area and is in close contact with the object being measured, so it has obvious advantages in surface temperature measurement:
â–²PT100 Surface Temperature Sensor has high temperature measurement accuracy, is suitable for neutral and oxidizing media, has good stability, and has a certain nonlinearity. The higher the temperature, the smaller the resistance change rate.
â–²It has fast response speed, small size, and convenient fixed installation. The patch temperature sensor is suitable for various plane measurement situations.
Parameters:
| Name |  PT100 surface temperature sensor |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm. 4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005 ltl） |
