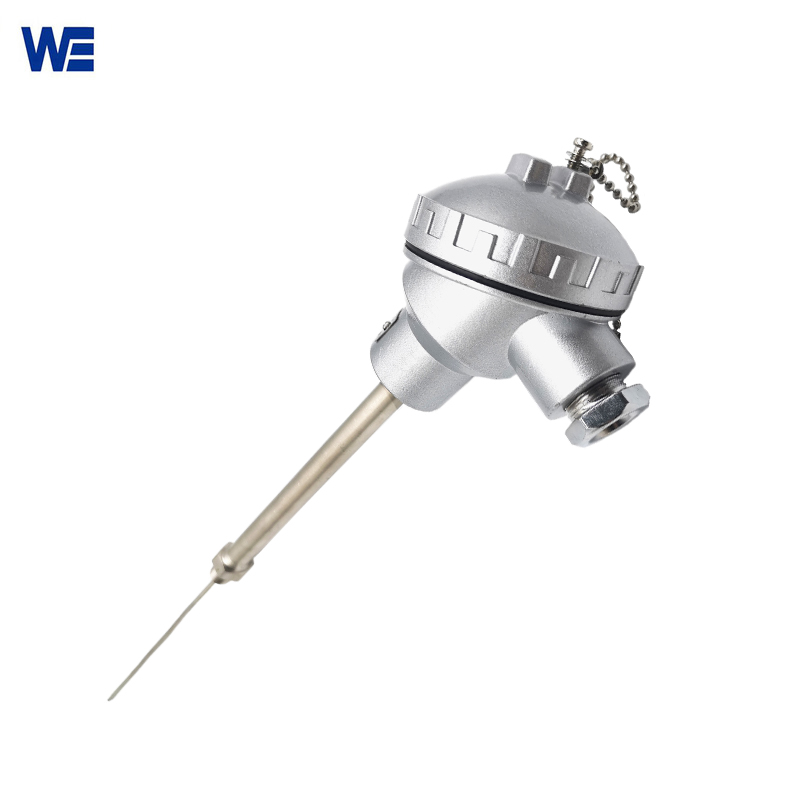

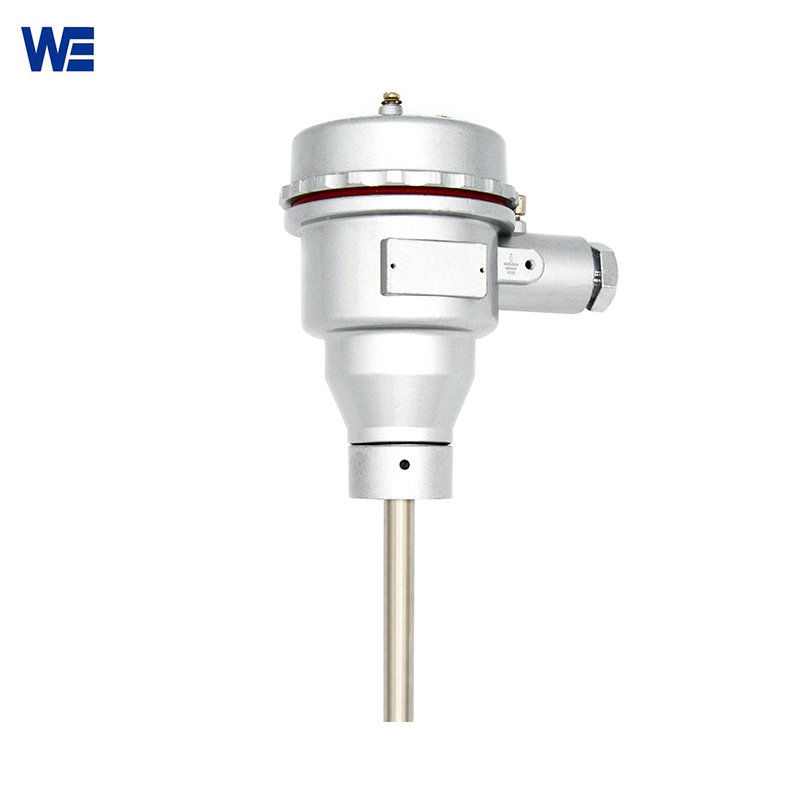

Explosion Proof RTD Sensor
Explosion Proof Rtd Sensor can directly measure the temperature of liquid, steam and gas media and solid surface in the range of -200 to 500℃ where explosives such as hydrocarbons exist at the production site.
Working Principle Of Explosion Proof RTD Sensor:
Explosion Proof RTD Sensor uses the principle of gap and explosion-proof design to design the junction box and other components with sufficient strength, and seals all parts that may generate sparks, arcs and dangerous temperatures in the junction box cavity. When an explosion occurs in the cavity, it can be extinguished and cooled through the gap of the joint surface, so that the flame and temperature after the explosion cannot be transmitted to the outside of the cavity, this prevents explosions and allows for temperature measurement.
Features Of Explosion Proof RTD Sensor:
- Armored temperature sensing element, good anti-vibration performance;
- No need to compensate the wire, saving cost;
- High temperature measurement accuracy;
- High mechanical strength and good pressure resistance;
- Imported thin film resistor elements, reliable and stable performance;
- Explosion-proof grade: DIIBT4 DIICT6
Parameters:
| Product Name | Explosion proof RTD sensor |
| Ref No. | PT100/PT500/PT1000 |
| Thermal Element Materials | Platinum |
| Explosion-proof grade: | DIIBT4/ DIICT6 |
| Accuracy Class | 1/3B
A B |
| Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread |
| Types of connections box | 1: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP67)4:Round plug type5: Flag plug type6:Small Connection type7: Compensation wire type |
| Diameter of protective tube | Ø16 ,Ø12, Ø3, Ø4,Ø5, Ø6, Ø8 |
| Protecting sheath material | ICr18Ni9Ti/304/316/316L/C-276/Monel |
| Measuring range | -200~500 degrees Celsius |
| Thread | 27*2 (6mm 8mm 10mm 12mm 16mm can be customized) |
| Shipping | By air, sea, express |
| Sample time | 2~5 days |
| Manufacture time | 7~30 days depending on order quantity |
Measuring Range & Tolerance:
| Model | Index NO | Temperature Range | Accuracy Grade | Tolerance |
| WZP | PT100 | -200~500 ℃ | A | ±（0.15+0.002ltl） |
| B | ±（0.30+0.002ltl） | |||
| WZC | Cu50,Cu100 | -50~+100 | / | ±（0.30+0.006ltl） |
