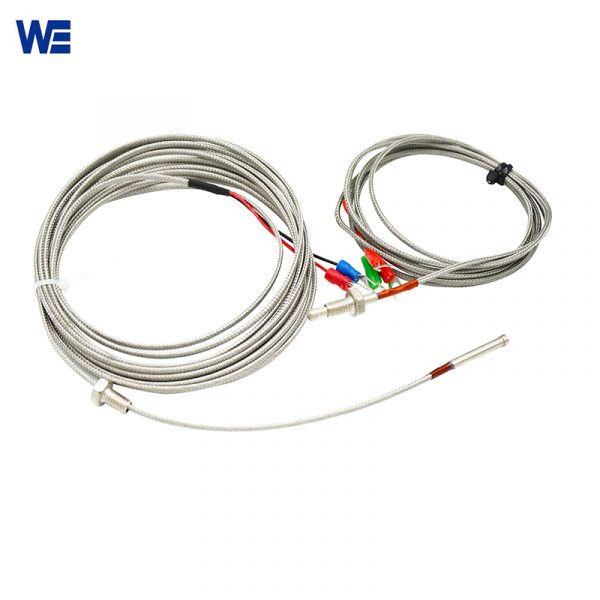

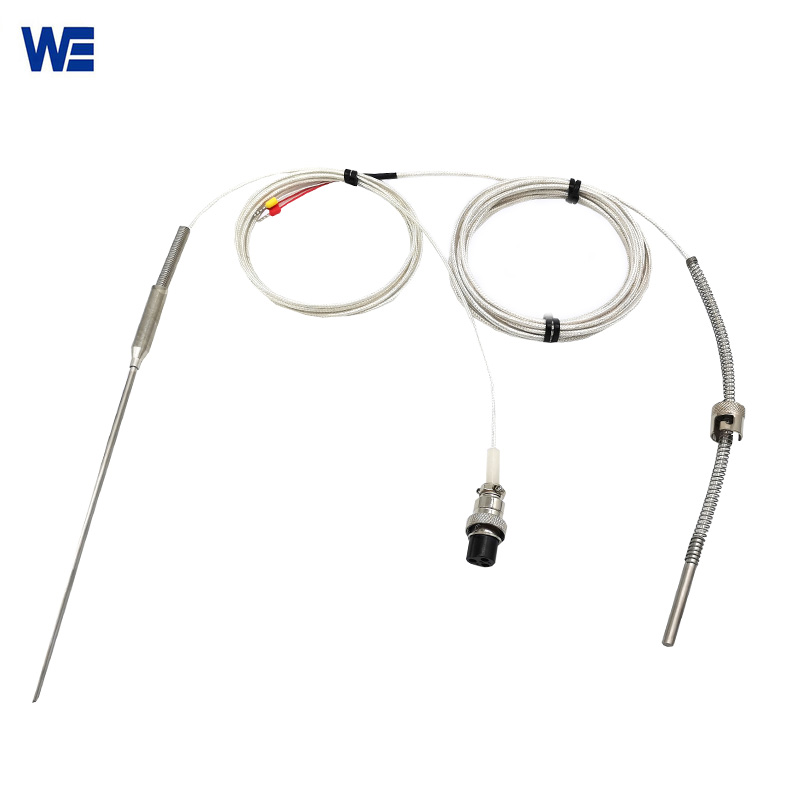

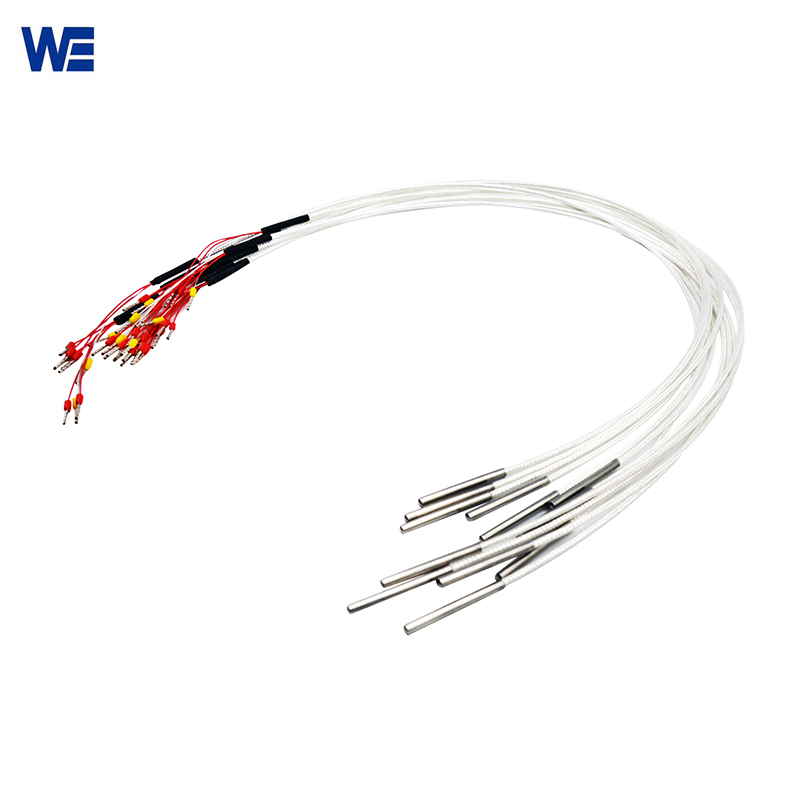

Pt100 Temperature Probe
Main advantage of PT100 temperature probe produced by Wepower Electronic: Short thermal response time, reducing dynamic errors; High measurement accuracy; High-precision chip, reliable and stable performance; Smaller in diameter than assembled rtd sensor, easy to bend, good shock resistance; Lead wire length can be customized.
Working Principle Of PT100 Temperature Probe:
The Pt100 Temperature Probe measures temperature using the property that a substance’s resistance varies with temperature. The working instrument will show the temperature value that corresponds to the resistance value as it changes. In a variety of manufacturing processes, PT100 temperature probes are typically used in conjunction with display devices, recording devices, computers, etc. to directly measure the temperature of liquid, vapor, and gaseous media as well as fixed surfaces in the range of -200 to 500 °C.

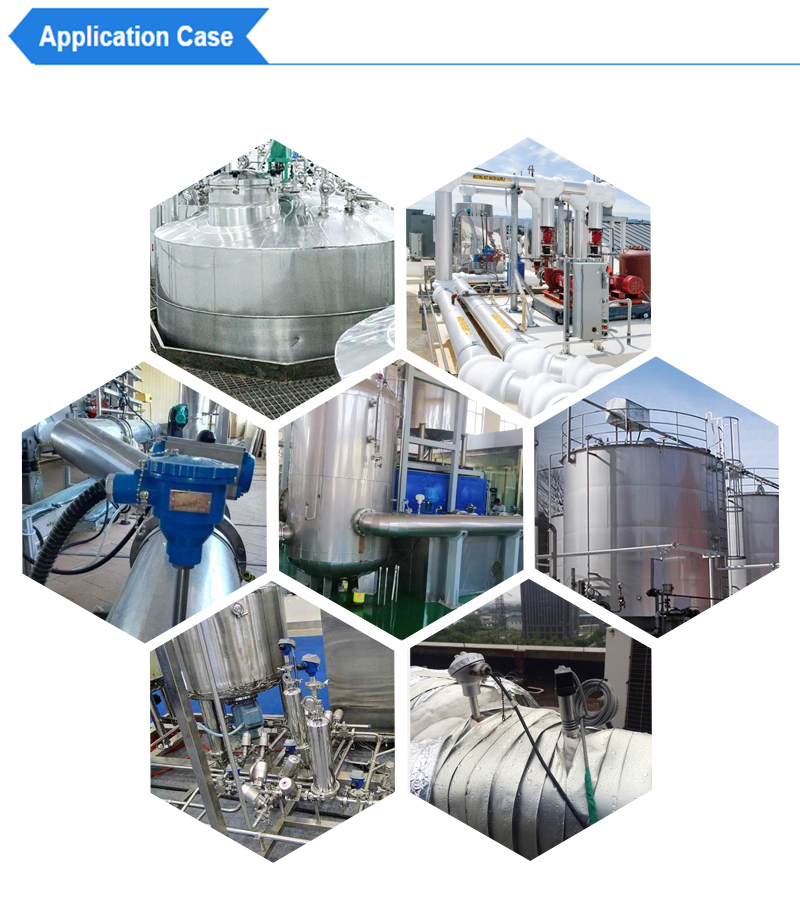

Application areas:
Wepower Electronic PT100 temperature probe sensors are widely utilized in the food, refrigeration, medical, machinery, rubber, biology, and white power industries. They are outfitted with premium grade imported platinum resistance chips and use wire that is resistant to acid and alkali and low temperatures.
Parameters:
| Name | Â PT100 temperature probe |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm. 4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005 ltl） |
